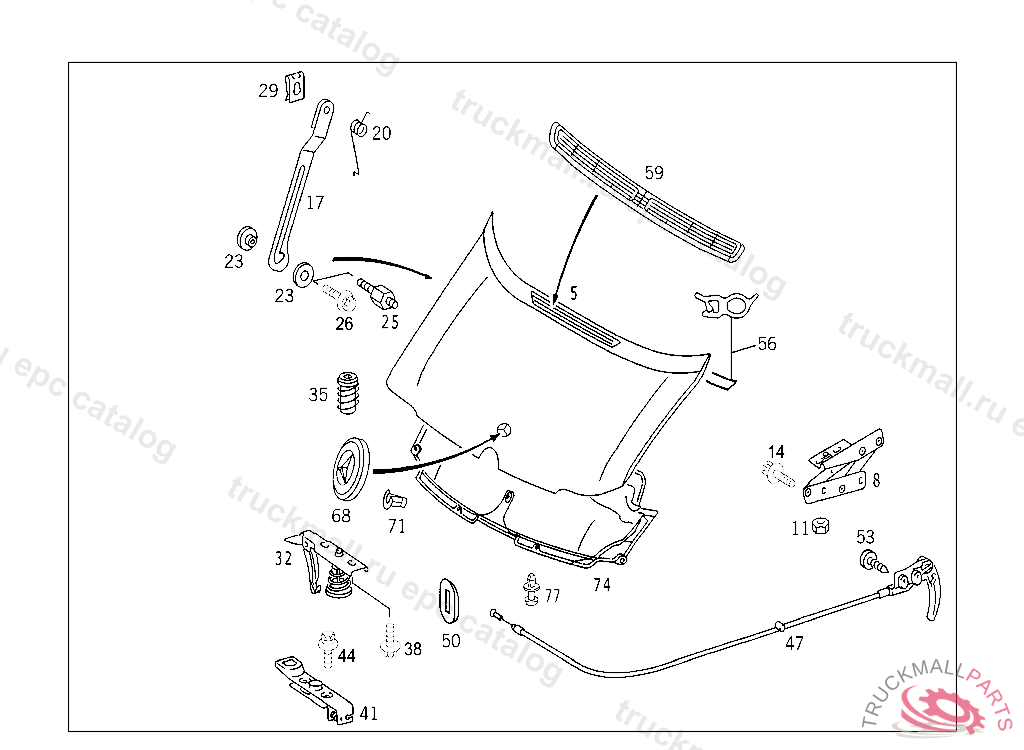

Поз.
Артикул
Описание
5
FLAP ,R 244794 ORDER ADDITIONALLY: 1XA 901 830 07 18
5
FLAP ,R 244794 ORDER ADDITIONALLY: 1XA 901 830 08 18
8
HINGE RIGHT
8
HINGE LEFT
11
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
11
NUT HORN TO BRACKET M8
11
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
14
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
17
LEVER ENGINE HOOD STOP
20
SPRING STAY
23
BUSHING DETENT TO ENGINE HOOD
25
SCREW DETENT TO ENGINE HOOD
26
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
29
SCREW
29
CLIP , Replaced By: N000000002965
32
FASTENER UPPER PART
35
RUBBER BUFFER REAR LID STIFFENING
38
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
41
FASTENER LOWER PART
44
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
47
PULL
50
GROMMET CLOCK
53
TAPPING SCREW BRACKET MOUNTING 4.8X19
56
SEAL , TO BE ADAPTED DURING ASSEMBLY
59
GRILLE AT ENGINE HOOD, R 42305820020628542305820020628
59
GRILLE ENGINE HOOD, R 42305920020628 A 90477820020827 V 00000120020827
59
GRILLE R.H.D., R 42305820020628 A 90477720020827
59
GRILLE ENGINE HOOD, R 42305920020628542305920020628 A 90477820020827
68
MERCEDES STAR GLUED VERSION,R 244794
71
GROMMET MERCEDES STAR TO REAR LID
74
INSULATION
74
INSULATION
77
RIVET
