Поз.
Артикул
Описание

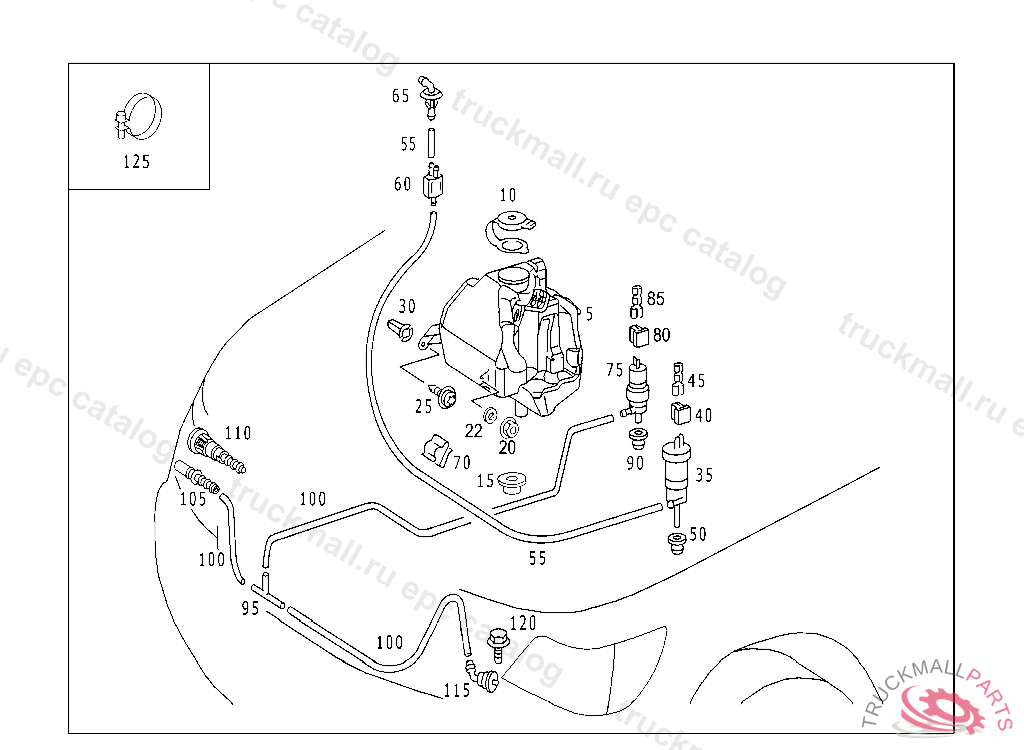

5
RESERVOIR
10
COVERING WATER RESERVOIR
15
GROMMET RESERVOIR TO WHEELHOUSE
20
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
20
SCREW PUMP TO BRACKET
22
WASHER COMPRESSED AIR LINE TO BRACKET
25
TAPPING SCREWSCHRAUBPUNKT SRS PLAKETE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
30
TREENAIL
35
PUMP PANE WASHER
35
PUMP PANE WASHER
40
PIN BUSHING HOUSING BIPOLAR
45
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
45
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
50
SEAL PUMP TO RESERVOIR
50
SEAL PUMP TO RESERVOIR
50
GROMMET , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 107.042 016317 107.045 024726 107.046 002951, Replaced By: A1239973681
55
HOSE6X10
55
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
60
CHECK VALVE (CHECK VALVE),WINDSHIELD WASHER, 000 159697 003 078977 007 064070 083 004734 086 003596 093 004546 102,103 149491 105 164442 183 008116 190 011709
65
CONNECTOR
70
CLIP HOSE ATTACHMENT
75
PUMP HEADLAMP WIPER/WASHER
80
PIN BUSHING HOUSING BIPOLAR
85
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
85
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
90
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
95
DISTRIBUTOR FROM REFILLING LINE TO HOSE
100
HOSE HEADLAMP WIPER/WASHER, ORDER BY THE METER
105
CONNECTOR
110
CONNECTOR
115
NOZZLE LEFT, HEADLAMP CLEANING DEVICE
115
NOZZLE RIGHT,HEADLAMP CLEANING DEVICE
120
BOLT OIL LINE ATTACHMENT 7X16
125
HOSE CLAMP HOSE FASTENING 9/13MM
125
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
