Mercedes A9067300305 - Остов двери

224, 209CDI, 211CDI, 215CDI, 218CDI 906.211

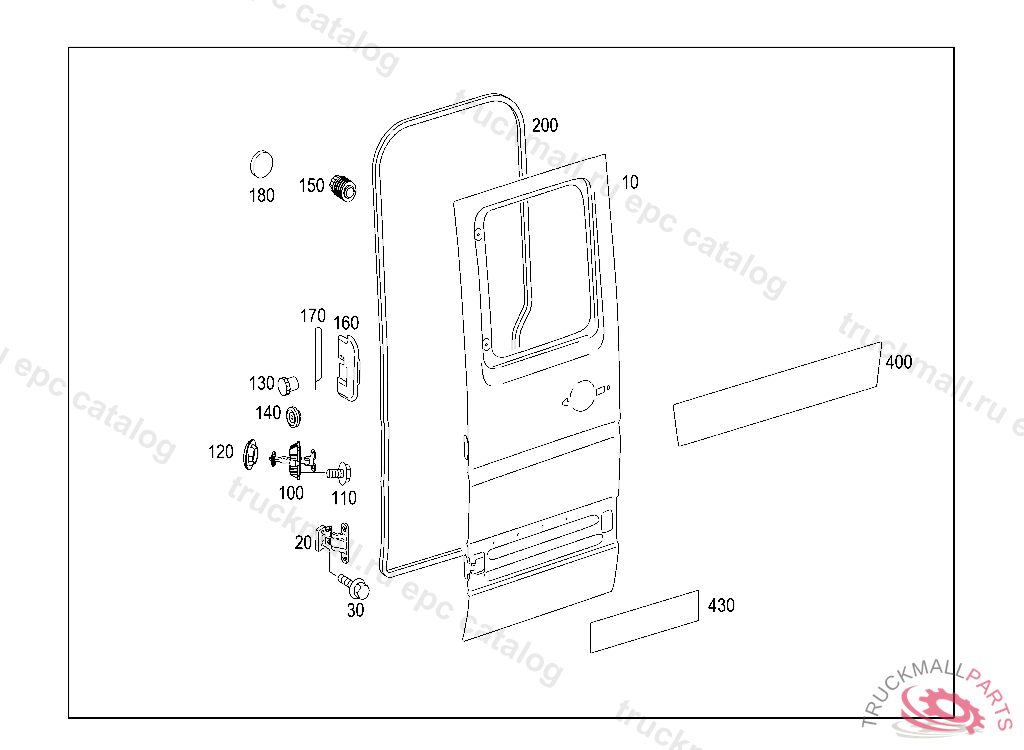

73 REAR DOORS - 025 REAR SIDE DOOR

Поз.
Артикул
Описание
10
A9067300205
DOOR SHELL LEFT DOOR
10
A9067300305
DOOR SHELL RIGHT DOOR
20
A9067300037
HINGE LEFT DOOR
20
A9067300137
HINGE RIGHT DOOR
30
A0189900501
BOLT HINGE TO RIGHT DOOR M8X12
30
N000000001875
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
100
A9067300316
DOOR CHECK LEFT DOOR
110
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
110
N000000001787
HEXALOBULAR BOLT HINGE TO BODY MBN 10226-M6X16-10.9-MK
110
N910105006023
SCREW LEVER TO ENGINE CONTROL SHAFT
120
A0039975786
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
130
N915042006000
PLUG
140
A0039975586
STOP PLUG CROSS MEMBER 20 MM
150
A1409870040
RUBBER BUFFER
160
A9067320158
SEAL RIGHT HINGE
160
A9067320058
SEAL HINGE,LEFT
170
A9067330016
REINFORCEMENT B-PILLAR ON THE LEFT
180
A2108890095
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
200
A9066975998
SEAL DOOR
400
A9066820509
INSULATION RIGHT DOOR, BOTTOM, TO BE ADAPTED DURING ASSEMBLY
430
A9066820108
INSULATION LEFT DOOR, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6396020380
430
A6396020380
SOUNDPROOFING ROOF, TO BE ADAPTED DURING ASSEMBLY
