Mercedes A0009905413 - Болт

224, 209CDI, 211CDI, 215CDI, 218CDI 906.211

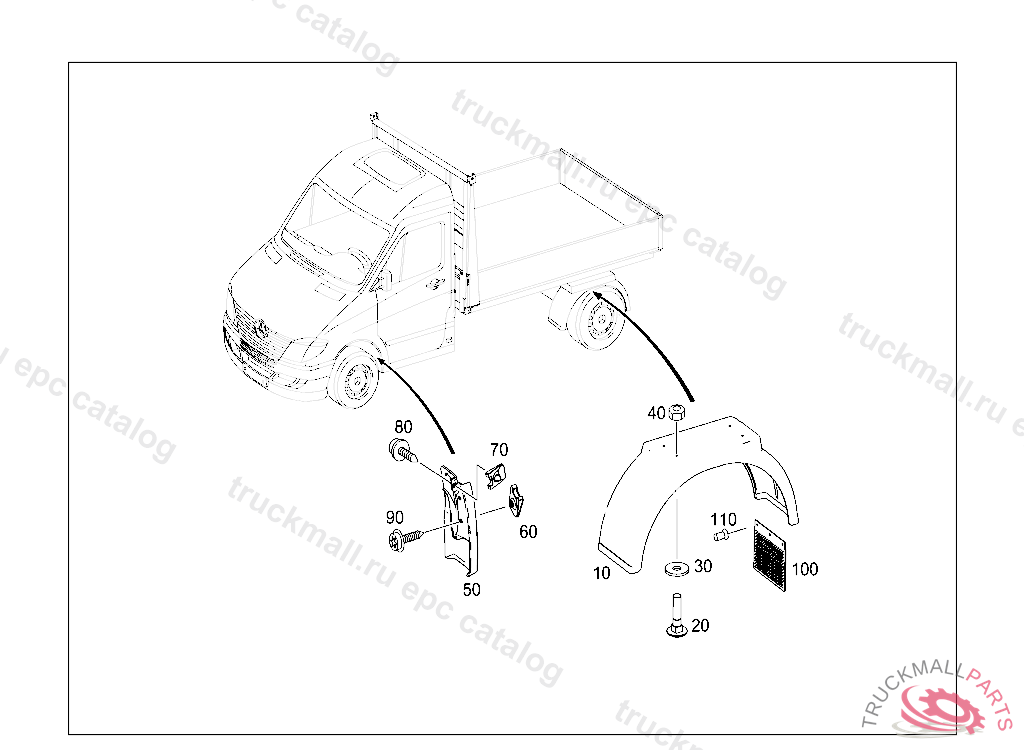

88 BUMBER/FENDER/ENGINE HOOD - 300 FENDERS,SPLASH GUARDS

Поз.
Артикул
Описание
10
A9068800021
FENDER
20
A0009905413
BOLT FENDER TO PLATFORM
30
N000000003250
WASHER BRACKET TO CAB REAR PANEL
40
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
50
A9068820104
SPLASH GUARD FRONT RIGHT, 9051QFT906A0100 BLACK
50
A9068823204
SPLASH GUARD FRONT RIGHT, 9051QFT906A0100 BLACK
50
A9068820004
SPLASH GUARD FRONT LEFT, 9051QFT906A0100 BLACK
50
A9068823104
SPLASH GUARD FRONT LEFT, 9051QFT906A0100 BLACK
60
A0039948745
LOCK NUT. LOCK
70
A0039948545
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
80
N000000000925
TAPPING SCREW MOUNTING PARTS 4.8X19
90
N000000000925
TAPPING SCREW MOUNTING PARTS 4.8X19
100
A9068821204
MUD APRON REAR
110
A0009904892
RIVET
