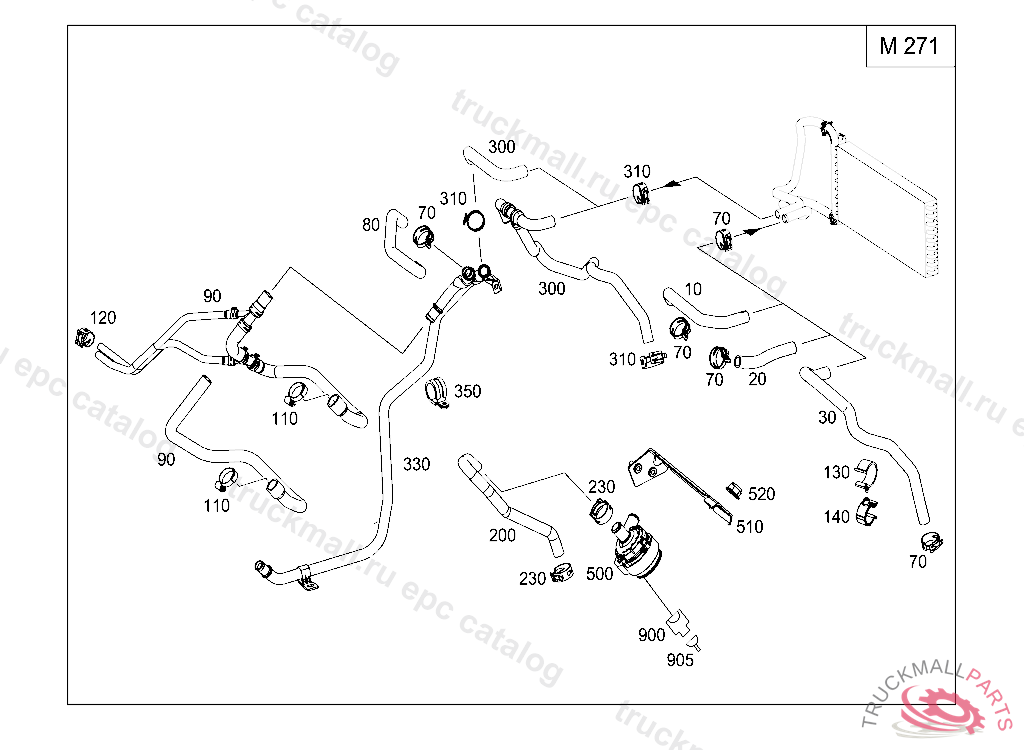

Поз.
Артикул
Описание
10
HOSE FEED TO FRONT HEAT EXCHANGER
20
HOSE FEED TO FRONT HEAT EXCHANGER, S 35855220080930
30
HOSE FEED, FROM PIPING TO HEAT EXCHANGER
70
CLAMP25 MM
80
HOSE FEED LINE TO ENGINE WATER PUMP
90
HOSE FEED TO FRONT HEAT EXCHANGER
90
MOLDED HOSE FEED TO FRONT HEAT EXCHANGER
110
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
120
CLAMP14 MM
130
CLAMP HOSE TO HOSE
140
HOSE BRACKET. LOOM TIE
140
BRACKET LINE MOUNTING 11 MM
200
HOSE FEED LINE TO WATER PUMP AND TUBE
200
HOSE FEED LINE TO WATER PUMP AND TUBE
230
CLAMP25 MM
300
HOSE RETURN LINE TO HEAT EXCHANGER AT FRONT
310
CLAMP25 MM
330
PIPELINE RETURN
350
CLAMP HOSE TO FLANGE AND TO VALVE
500
CIRCULATION PUMP
510
BRACKET CIRCULATION PUMP
520
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
520
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
905
GASKET
905
CONTACT SPRING. PLUG SOCKET0,5-1,0
905
CONTACT SPRING. PLUG SOCKET1,0-2,5
905
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
905
GASKET ALTERNATOR 5.2 MM,G2
