Mercedes A9019900130 - Болт

224,209CDI,211CDI,213CDI,215CDI,218CDI 906.613

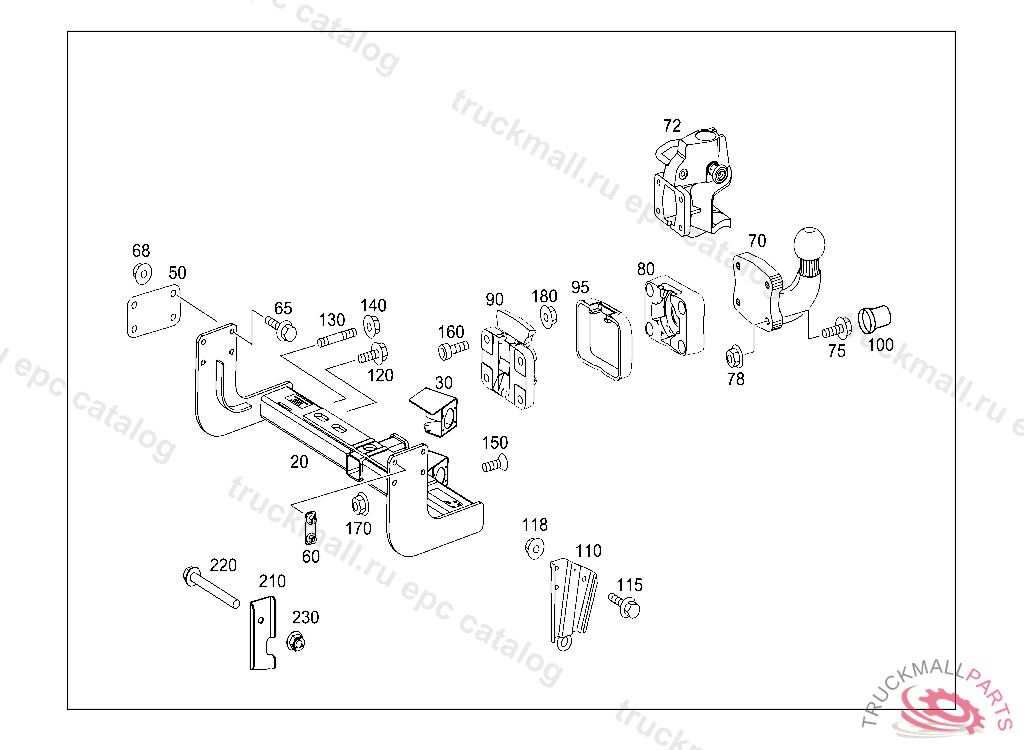

31 FRAME/TRAILER COUPLING - 420 TRAILER COUPLING

Поз.
Артикул
Описание
20
A9063100195
HITCH MECHAN. DELY. RANGE
20
A9063100595
HITCH MECHAN. DELY. RANGE
20
A9063101195
TRAILER BRACKET
20
A9063102195
HITCH MECHAN. DELY. RANGE
30
A9063106709
BRACKET PLUG SOCKET
50
A9063150221
PLATE
65
N910105012018
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
68
N000000003276
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
70
A0033152399
TRAILER COUPLING REAR
70
A9063150099
BALL HEAD COUPLING
72
A0023156199
TRAILER COUPLINGROCKINGER TYP 243U115EA
80
A0003150821
PLATE
90
A0003150721
PLATE WITH COVERING CAP 3,25T
95
A0003150729
CAP
100
A9013150067
CAP TRAILER COUPLING TO COUNTER PLATE
110
A9063100108
TOW HOOK
115
N910105012018
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
118
N000000003276
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
120
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
130
A9043150070
STUD TRAILER COUPLING TO REAR CROSS MEMBER
140
N000000003275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
150
A9019900030
SCREW BASE PLATE TO TRAILER COUPLING
150
A9019900130
SCREWM 10X50
160
N000912010212
SCREW ROLLER ON SUPPORT
170
N000000003275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
180
N000000003275
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
