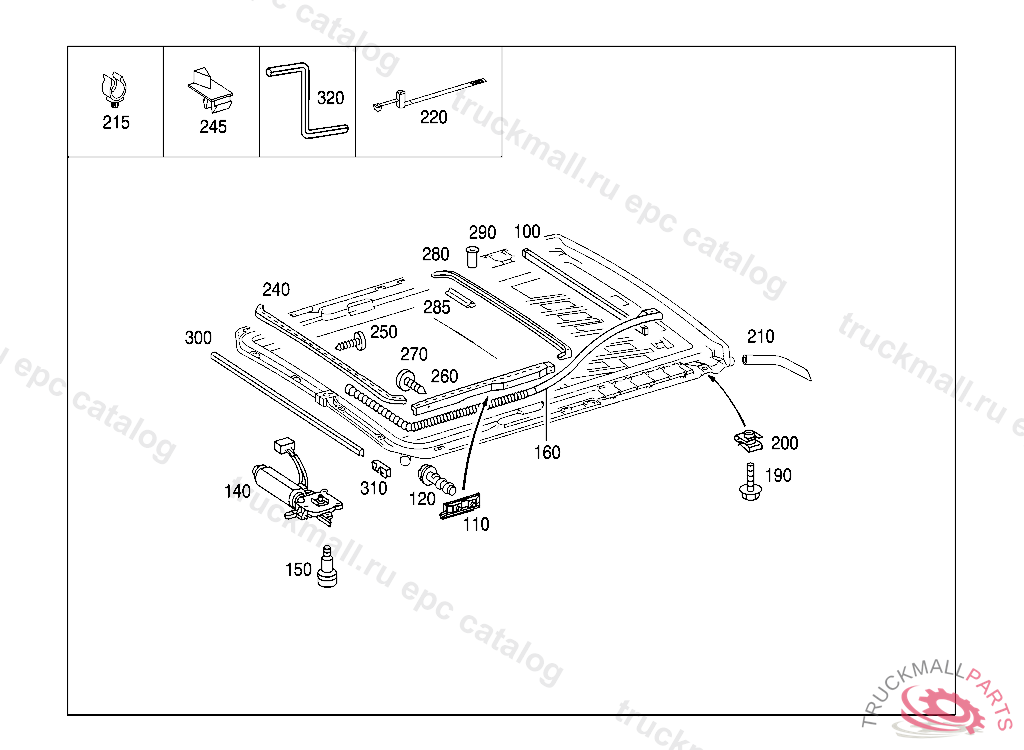

Поз.
Артикул
Описание
100
PAD AT FRAME, LEFT 12MM, TO BE ADAPTED DURING ASSEMBLY
100
PAD AT FRAME,RIGHT 12MM, TO BE ADAPTED DURING ASSEMBLY
110
COVER LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
120
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
140
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
150
SCREW MOTOR TO FRAME
160
PULL RIGHT
160
PULL LEFT
190
SCREW , WITH DIESEL ENGINE
190
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT , Replaced By: N304017006019
200
FUSE FRAME TO REINFORCEMENT FRAME
210
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
215
LOOM TIE
220
CABLE STRAP HOLDER. LOOM TIE
240
RAIL FRONT
245
SPACER RAIL
250
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
260
RAIL RIGHT
260
RAIL LEFT
270
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
280
RAIL REAR
285
PAD
290
BLIND RIVET ATTACHMENT,RAIL
300
RAIL BOTTOM FRAME
310
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
320
KEY EMERGENCY CONTROL
