Поз.
Артикул
Описание

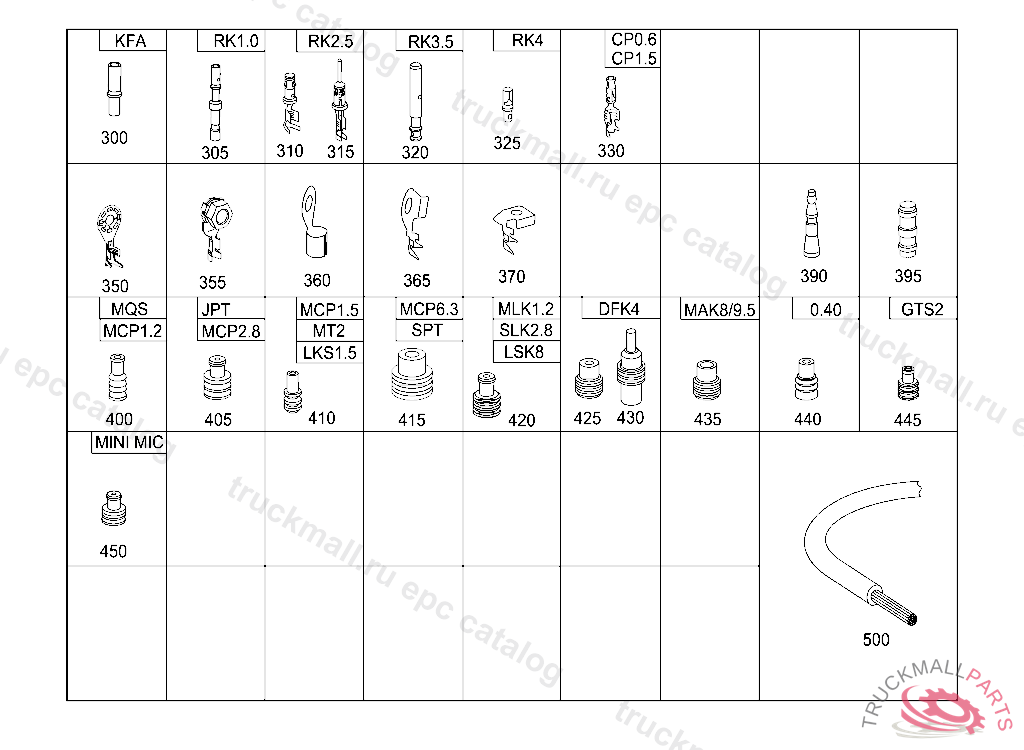

300
FEMALE CONTACT TRAILER SOCKET, 13-PIN 2.5 MM2 KFA
305
ROUND PIN BUSHING1 MM
310
CONTACT SPRING2.6-4.0 MM2 RK2.5
310
ROUND PIN BUSHING0,5-1,0 MM2, A 394036 X 004166 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 / X 004165 WITH CODE 808
315
PLUG2.5-4.0 MM2 RK2.5
315
PLUG PIN DOOR SEPARATION POINT 1,0-2,5 MM2
315
PLUG PIN0,5-1,0 MM
320
FEMALE CONTACT. ROUND PIN BUSHINGTO 030 545 26 28
325
ROUND PIN BUSHING4 MM2
330
HOUSING1.0-2.0 MM2 CP1.5
330
CABLE LUG, SPECIAL SHAPE2 X 0,75 MM2
330
HOUSING0.5-0.75 MM2 CP0.6
330
HOUSING0.5-1.0 MM2 CP1.5
350
CABLE SHOE6,4 X 4,0-6,0MM2
350
CABLE LUG, SPECIAL SHAPE6.4 X 0.5-0.85MM2
350
CABLE SHOE6,4 X 2,0-4,0MM2
355
CABLE LUG, SPECIAL SHAPEM6 0.75-1.5 MM2
360
CABLE LUG. CABLE SHOE6-16
365
CABLE SHOE0.75 MM2
370
CABLE SHOEM6 1.5 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS GREEN 0,7 - 2,4 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS END JOINT SOLDERING DEVICE,RED 2.0-4.0 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS YELLOW 7,5 - 12,0 MM2
390
SOLDER CONN. SLEEVE. SOLDERING END CUPS END JOINT SOLDERING DEVICE,BLUE 3.5-8.0 MM2
395
CABLE CONNECTOR0,5 MM2
395
BUTT CONNECTOR0.8MM2
395
BUTT CONNECTOR1.3MM
400
GASKET YELLOW 0.2-0.5MM2,126373
400
GASKET. BLIND PLUG BLUE
400
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
405
STOP PLUG. PLUG CONTROL-UNIT PLUG-CONNECTION
405
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
405
WIRE SEAL
405
GASKET GREEN 2.5-4.0 MM2, PIN 57 - 62
405
GASKET. BLIND PLUG
410
GASKET BLACK 3.9 MM
410
BLIND PLUG. GASKET WITHE ELB 4
410
GASKETTO 001 540 99 81
410
GASKET ALTERNATOR 5.2 MM,G2
410
STOP PLUG. PLUG WHITE 0.5-1.0 MM2, PIN 01 - 56
415
GASKET GREEN 8 MM
415
SINGLE-WIRE SEAL SINGLE-WIRE SEAL, BLUE
415
GASKETTO 029 545 75 28, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
420
GASKET4.0 MM2
420
GASKET3.2-3.6 MM,2.8-3.6MM2
420
GASKET4.0 MM2
420
STOP PLUG. PLUG
420
GASKET
420
GASKET SINGLE-WIRE SEAL, RED 1.5-2.5 MM2
420
BLIND PLUG GREY
420
GASKET ALTERNATOR 5.2 MM,G2
420
BLIND PLUG ORANGE,V 215932
420
GASKETTO 001 540 99 81
420
SEAL. GASKET YELLOW,V 215932
420
BLIND PLUG. GASKET WITHE ELB 4
420
SEALING SHIM SINGLE-WIRE SEAL, RED BROWN 10 MM2,LSK8
420
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
420
GASKET6.0 MM2
420
GASKET SINGLE-WIRE SEAL, ORANGE 4.0-4.4 MM,LSK8
425
GASKET SINGLE-WIRE SEAL, WHITE 2.0-2.8 MM
425
GASKET SINGLE-WIRE SEAL, YELLOW 1.6-2.0 MM
430
BLIND PLUG DARK GREEN 8.2MM,DFK4
435
SINGLE-WIRE SEAL
435
SINGLE-WIRE SEAL
435
SINGLE-WIRE SEAL
440
HOUSING SEAL SINGLE-WIRE SEAL, GREEN 1.6-1.9 MM 0.40
440
HOUSING SEAL SINGLE-WIRE SEAL, VIOLET
445
SEAL SINGLE-WIRE SEAL, YELLOW
450
CORE BUNDLE SEALING1.0-2.5 MM2
450
HOUSING SEAL RUSSET BROWN 1.2-1.6 MM,MINI MIC
450
SEAL LEFT O2 SENSOR DOWNSTREAM OF TWC G3/5
450
WIRE SEAL GREY 0.5-1.0 MM2
999
CONTACT SPRING. PLUG SOCKET0,5-1,0
999
FEMALE CONTACT1.5-2.5 MM2 MCP1.5
