Поз.
Артикул
Описание

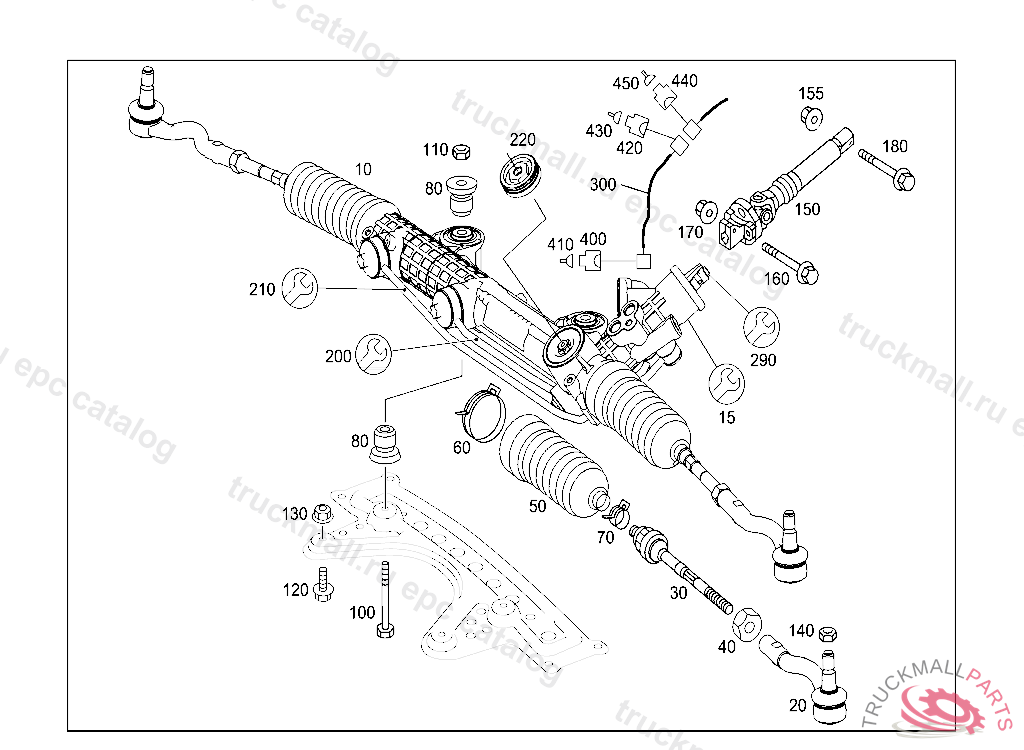

10
STEERING BOX ASSEMBLY , A 05585620051031 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
STEERING BOX ASSEMBLY , A 04701720050902 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
PROPORTIONAL VALVE REPAIR KIT, Replaced By: A2114600984
15
VALVE REPAIR KIT
20
TIE ROD RIGHT OUTSIDE
20
TIE ROD LEFT OUTSIDE
30
TIE ROD INSIDE LEFT AND RIGHT
40
NUT BRACKET TO SIDE MEMBER,K 035196
50
BOOT
50
BOOT LEFT, CAUTION: LEFT AND RIGHT FOR STEERING A2194600600 AND A2194600800.
60
CLAMPING PIECE LEFT AND RIGHT INSIDE
70
CLAMPING PIECE LEFT AND RIGHT OUTSIDE
80
RUBBER MOUNT RACK-AND-PINION STEERING
100
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
110
NUT BRACKET TO SIDE MEMBER M12X1.5
120
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
130
NUT BRACKET TO SIDE MEMBER M12X1.5
140
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
150
COUPLING COLLAR STEERING TO CROSS MEMBER
155
NUT STEERING COUPLING TO STEERING GEAR,A 166260
160
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
170
NUT STEERING COUPLING TO STEERING GEAR,A 166260
180
SCREW CLAMP ON BRACKET
200
REPAIR KIT OIL LINE, SHORT
200
RS STEERING GEAR OIL LINE, SHORT
210
RS STEERING GEAR OIL LINE, LONG
210
RS STEERING GEAR OIL LINE, LONG
220
PLUG
290
TS PROTECTIVE CAP PARTS KIT
290
TS PROTECTIVE CAP PARTS KIT
300
WIRING HARNESS ENGINE WIRING HARNESS CONNECTOR TO SOLENOID VALVE (SPEED-SEN. POW.STEER.)
400
PLUG
410
CONTACT SPRING. PLUG SOCKET1,0-2,5
420
PLUG HOUSING BRAKE LINING WEAR INDICATOR
430
CONTACT PIN0.75 MM2 MQS
430
GASKET YELLOW 0.2-0.5MM2,126373
440
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
450
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
450
GASKET YELLOW 0.2-0.5MM2,126373
