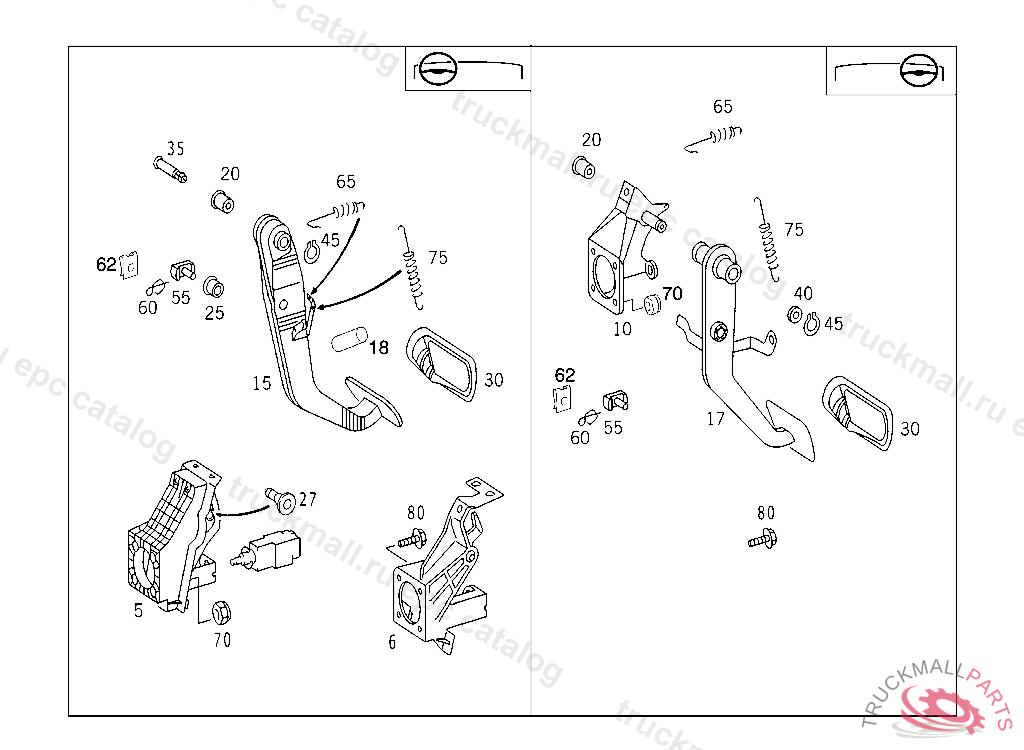

Поз.
Артикул
Описание
5
BEARING BRACKET
6
BEARING BRACKET PEDAL ASSEMBLY
10
BEARING BRACKET
10
BEARING BRACKET PEDAL ASSEMBLY
15
PEDAL
15
BRAKE PEDAL , Replaced By: A2202902918
15
PEDAL BRAKE PEDAL, Replaced By: A2202903318
15
PEDAL BRAKE PEDAL
17
PEDAL
17
PEDAL BRAKE PEDAL
17
PEDAL BRAKE PEDAL, Replaced By: A2202903418
17
BRAKE PEDAL , Replaced By: A2202903118
18
GROMMET5.0 MM
20
BUSHING
20
BUSHING BRAKE PEDAL
25
BUSHING PEDAL ASSEMBLY
27
PLUG
30
PAD BRAKE PEDAL
35
PIN CLUTCH PEDAL TO BEARING BRACKET
40
WASHER PEDALS TO PIVOT PINS
45
LOCK STOP TO BEARING BRACKET
55
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
55
PIN BRAKE PEDAL TO BRAKE BOOSTER, A 03178220020802, Replaced By: A2032920174, +001N912002008003
55
PIN BRAKE PEDAL TO BRAKE BOOSTER
60
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
62
LOCK PULL TO FASTENER
65
SPRING BRAKE PEDAL
70
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
70
NUT HORN TO BRACKET M8
75
SPRING BRAKE PEDAL RELEASE SPRING
75
SPRING BRAKE PEDAL RELEASE SPRING
80
HEXAGON HEAD BOLT. SCREW STAY TO APPARATUS SUPPORT
