Mercedes A2213201053 - ПРОВОД

S350 BlueTEC 4MATIC 221.183

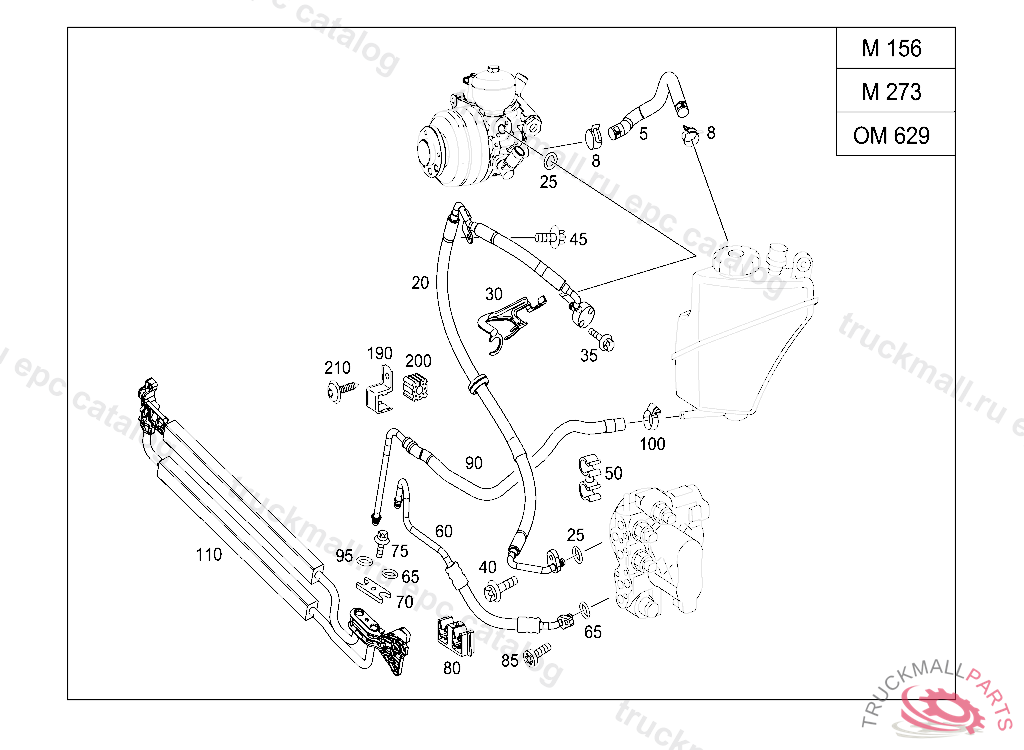

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 290 LINE ARRANGEMENT OF HYDRAULIC SYSTEM IL. 1

Поз.
Артикул
Описание
8
A0009953005
CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
25
A0159978245
O-RING LINE
35
N000000003291
HEXALOBULAR BOLT CHARGE SOCKET AT BRACKET M6X20
40
N000000003292
HEXALOBULAR BOLT HOSE ATTACHMENT M8X20,M8X25, A 02352720090331
60
A2213201053
LINE FROM FRONT AXLE VALVE BLOCK CONNECTION T0 TO ABC OIL COOLER, A 02430720090731800
65
A0159978245
O-RING LINE
70
A2203270342
PLATE TO FRAME-TYPE INTEGRAL SUPPORT
75
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
80
A0129883078
PIPE FLANGE CLAMP TO MOUNT FUEL LINES
85
N000000003292
HEXALOBULAR BOLT HOSE ATTACHMENT M8X20,M8X25, A 02352720090331
90
A2213201153
LINE FROM OIL COOLER TO OIL TANK, A 02430720090731800
95
A0159978245
O-RING LINE
100
A0059970190
HOSE CLAMP LINE MOUNTING
210
N000000003251
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
