Mercedes A2214702964 - ПРОВОД

S350 BlueTEC 4MATIC 221.183

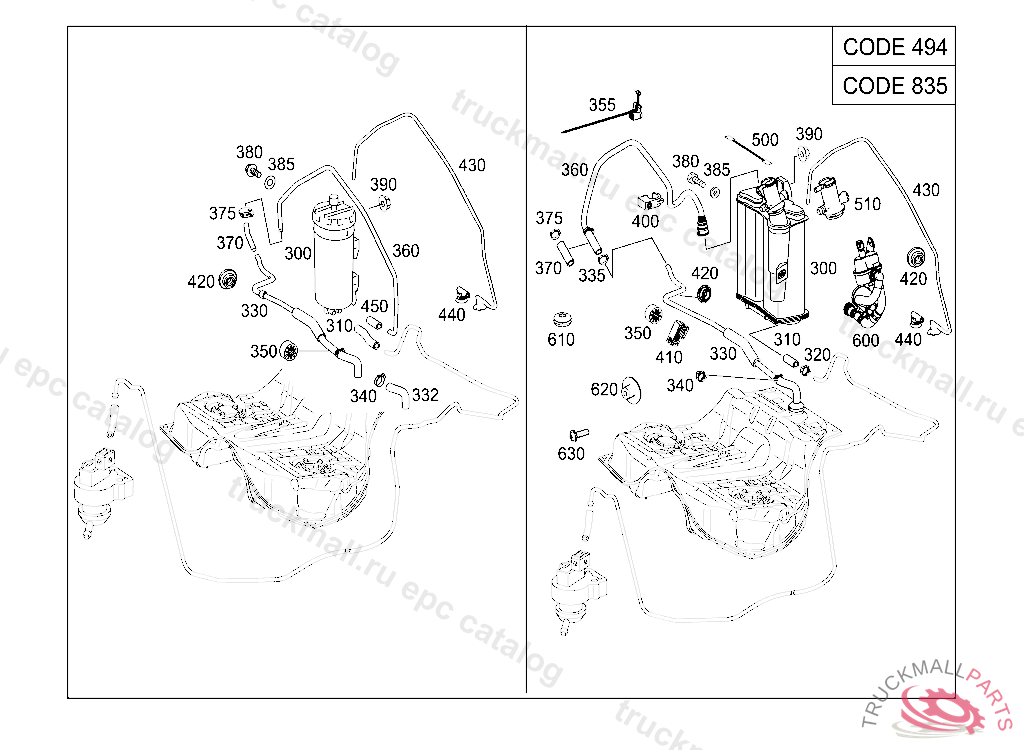

47 FUEL SYSTEM - 060 CLOSED FUEL-EVAPORATION-CONTROL SYSTEM IL. 2

Поз.
Артикул
Описание
320
A0059971990
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
330
A2214702964
LINE TANK VENTILATION TO ACTIVATED CHARCOAL FILTER, A 01175020070731808
332
A2214701475
FUEL HOSE FROM TANK TO ACTIVATED CHARCOAL FILTER
340
A0009958610
CLAMP RETURN LINE
350
A1233288981
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
360
A2214702264
BREATHER FROM TANK TO ACTIVATED CHARCOAL FILTER, A 42593420110630
370
N000000003939
HOSE FROM TANK FILLER NECK TO DE-AERATION LINE, A 02109620080829
375
A0059970190
HOSE CLAMP LINE MOUNTING
420
A2214710181
BOOT BREATHER LINE TO WHEEL ARCH
440
A1234710081
BOOT
500
A2114400134
WIRING HARNESS SHUTOFF VALVE ADAPTER LINE TO A 000 470 71 93
500
A2114400334
ELECTRICAL WIRING HARNESS SHUTOFF VALVE ADAPTER LINE
