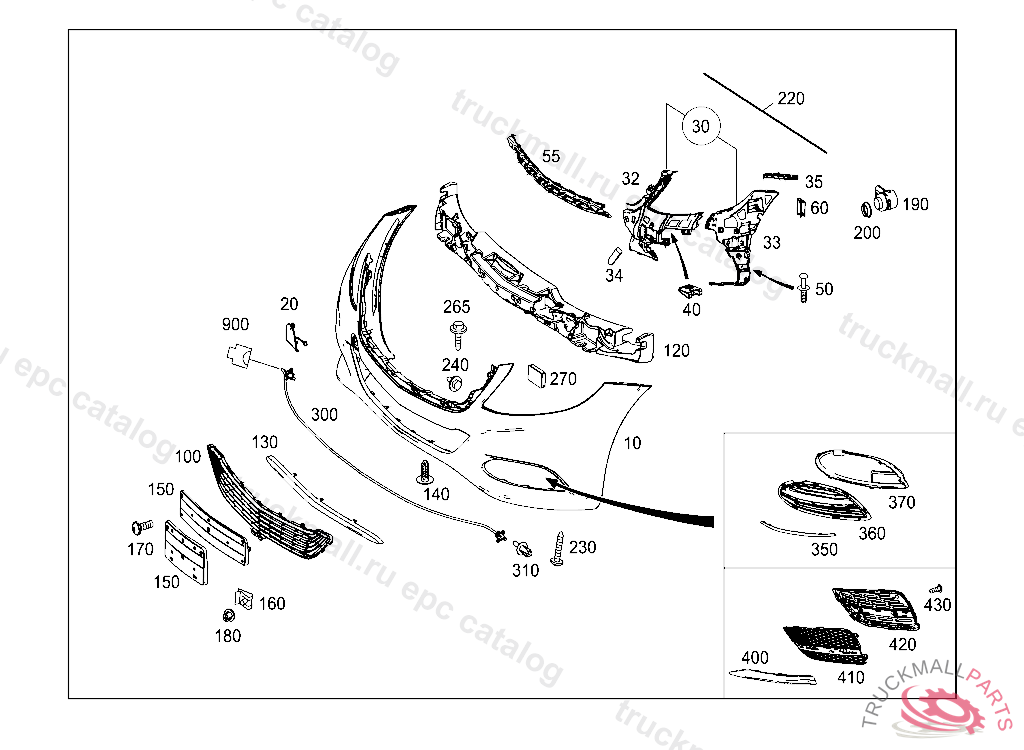

Поз.
Артикул
Описание
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT222L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT222L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT222L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT222L9000 COLORLESS
20
COVER TOWING EYE TOWING EYE
20
COVER TOWING EYE TOWING EYE, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT222L9000 COLORLESS
30
BASIC MOUNTING FOR BUMPER BUMPERS LEFT AND RIGHT
32
BASIC MOUNTING FOR BUMPER FRONT INSIDE RIGHT
32
BASIC MOUNTING FOR BUMPER FRONT INSIDE LEFT
33
BASIC MOUNTING FOR BUMPER FRONT OUTSIDE LEFT
33
BASIC MOUNTING FOR BUMPER FRONT OUTSIDE RIGHT
34
SEALING AIR DUCT BASIC CARRIER AT LEFT AND RIGHT
35
MOUNTING RAIL RIGHT FRONT BUMPER
35
MOUNTING RAIL LEFT FRONT BUMPER
40
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
40
LOCK RIGHT PANELLING TO SIDE MEMBER
50
RIVET GAP SEAL B PILLAR RIGHT
50
BLIND RIVET LOWER SECTION TO PANEL,LEFT AND RIGHT
55
BASIC MOUNTING FOR BUMPER BUMPER FRONT CENTER
60
CLIP MOUNTING PLATE COVER, A 02430720090731800
60
CLIP
100
COVER BUMPER AREA BUMPER,BOTTOM CENTRAL
100
VENTILATION LOUVER BUMPER,BOTTOM CENTRAL
120
IMPACT ABSORBER BUMPER
120
IMPACT ABSORBER BUMPER
120
IMPACT ABSORBER BUMPER
120
IMPACT ABSORBER BUMPER
130
FRONT SPOILER BOTTOM
130
ORNAMENTAL TRIM BUMPER,BOTTOM CENTRAL
140
RIVET COVERING TO SIDE MEMBER
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
150
LICENSE PLATE MOLDING
160
LOCK NUT. LOCK PANELLING TO BUMPER
170
SCREW COVERING TO FRONT BUMPER
180
CLIP FASTENER. LOCK PROTECTIVE GRILLE ON CONDENSER BRACKET
190
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
190
DISTANCE SENSOR OUTSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
200
DECOUPLING RING PARKTRONIC SYSTEM
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
220
ELECTRICAL WIRING HARNESS FRONT BUMPER
230
TAPPING SCREW TAKE-UP DEVICE M8 X 25
240
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
265
HEXAGON HEAD BOLT BUMPER TO BRACKET
270
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
270
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
270
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
270
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009051704
270
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009055103
300
PRESSURE SENSOR PEDESTRIAN PROTECTION
310
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
350
MOULDING LEFT
350
MOULDING RIGHT
360
COVER BUMPER AREA LEFT
360
COVER BUMPER AREA RIGHT
370
COVER BUMPER AREA RIGHT BUMPER
370
COVER BUMPER AREA BUMPER,LEFT
400
ORNAMENTAL TRIM RIGHT
400
ORNAMENTAL TRIM LEFT
410
VENTILATION LOUVER BUMPER BOTTOM RIGHT
410
VENTILATION LOUVER BUMPER BOTTOM LEFT
420
VENTILATION LOUVER BUMPER,LEFT
420
VENTILATION LOUVER RIGHT BUMPER
430
SCREW W COLLAR A DRIVEM5X35
900
COUPLING HOUSING PEDESTRIAN PROTECTION B151/1
