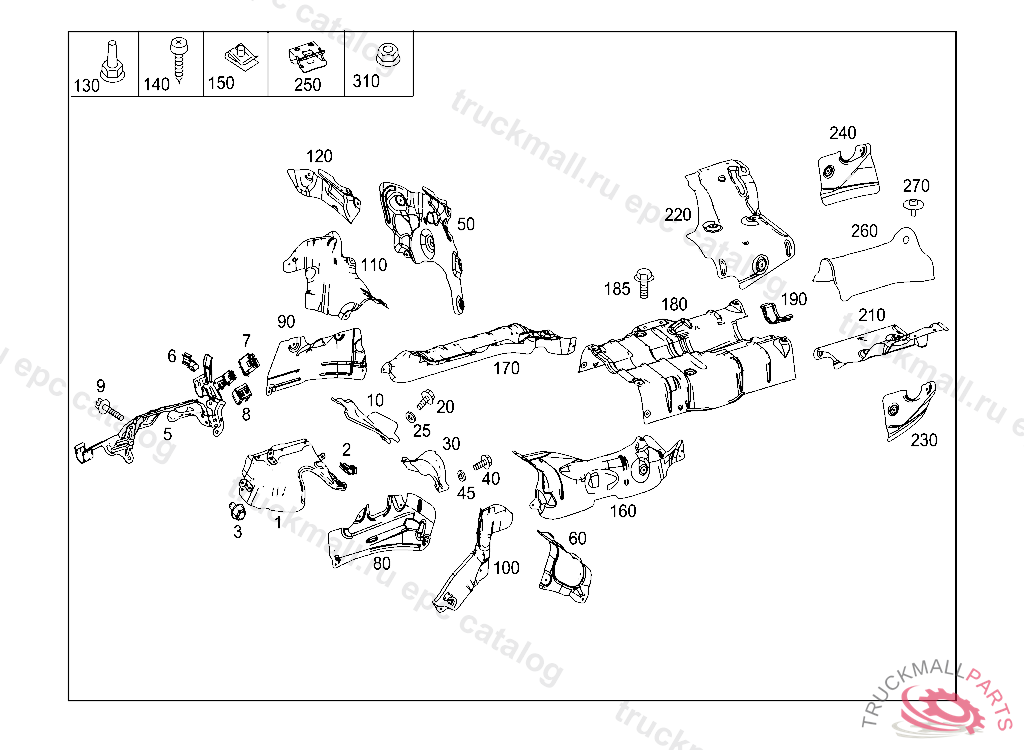

Поз.
Артикул
Описание
10
SCREENING SUBFRAME, RIGHT
20
BOLT SHIELDING
25
WASHER COMPRESSED AIR LINE TO BRACKET
30
SCREENING , A 11994720100930
40
BOLT SHIELDING
45
WASHER COMPRESSED AIR LINE TO BRACKET
50
SCREENING FIRE WALL,CENTER
60
SCREENING FRONT LEFT
80
SCREENING LEFT
90
SCREENING RIGHT, A 03603020060628 A 13786620110729802
90
SCREENING RIGHT SIDE MEMBER, A 06859520070928808
90
SHIELDING RIGHT, A 11994820100930801
100
SCREENING PLATE LEFT PRIMARY CATALYTIC CONVERTER
110
SCREENING PLATE RIGHT PRIMARY CATALYTIC CONVERTER, A 13786620110729802
110
SHIELDING FRONT RIGHT
110
SCREENING FRONT RIGHT, A 06859520070928808
130
SPRING NUT , A 32101520070928808
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
150
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
160
SCREENING PLATE ABOVE LEFT CATALYST, A 12413220101104
160
SHIELDING ABOVE LEFT CATALYST, A 12413320101104
170
SCREENING ABOVE RIGHT CATALYST, A 20131211
170
SHIELDING ABOVE RIGHT CATALYST, A 20131216
170
SCREENING PLATE ABOVE RIGHT CATALYST, A 20131216
170
SHIELDING ABOVE RIGHT CATALYST, A 20131211
180
SHIELDING TUNNEL, A 12406420101209
180
SCREENING PLATE TUNNEL, A 12406320101209
180
SCREENING TUNNEL
190
SCREENING PLATE PROPELLER SHAFT BEARING
210
SCREENING ABOVE REAR MUFFLER, LEFT, A 06942120071008
210
SCREENING PLATE ABOVE REAR MUFFLER, LEFT, A 06942020071008
220
SCREENING ABOVE REAR MUFFLER, RIGHT, A 06942120071008
220
SCREENING PLATE ABOVE REAR MUFFLER, RIGHT, A 06942020071008
230
SCREENING PLATE REAR OUTSIDE LEFT
240
SCREENING PLATE REAR OUTSIDE RIGHT
250
CLIP RAIL TO COVERING, F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM F 619721 WITH CODE 807
260
COVER BELOW FUEL TANK
270
BOLT ATTACHMENT SHIELD
310
PLASTIC NUT. NUT
