Главная
›
Mercedes
›
BUS
›
O 303
›
301.235
›
50 RADIATOR
›

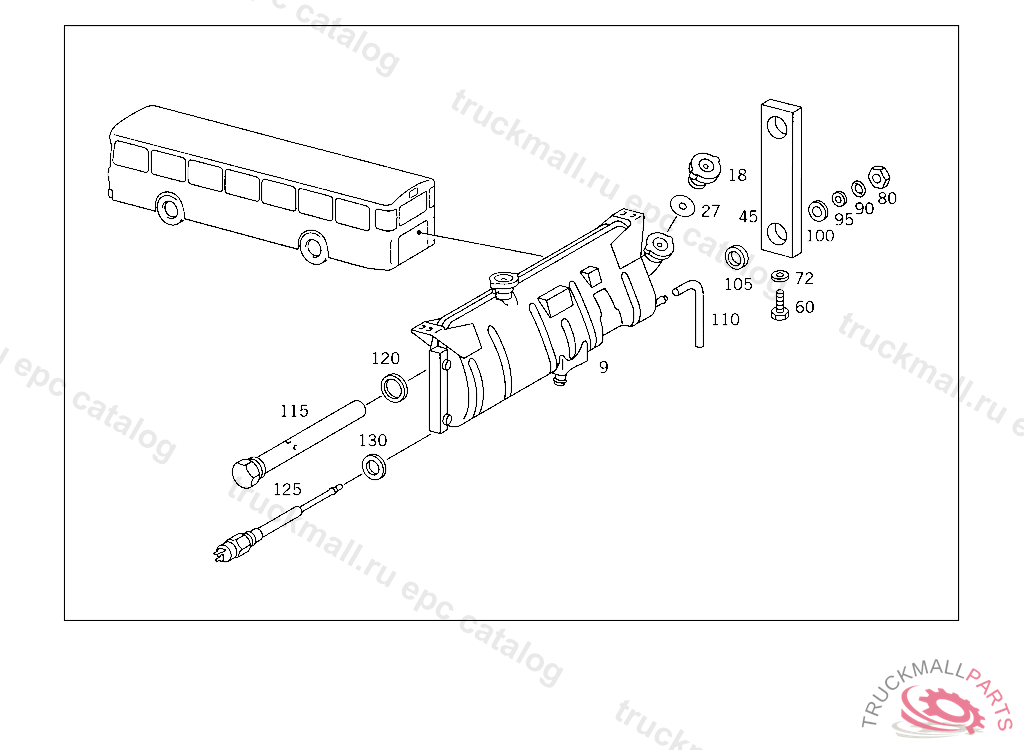

001 RADIATOR IL. 1
Mercedes A0005010010 - ТРУБКА
O 303 301.235
50 RADIATOR - 001 RADIATOR IL. 1
Поз.
Артикул
Описание
9
A3005000249
TANK EXPANSION TANK
18
A0005013415
RADIATOR CAP LATERAL
18
A0005013515
RADIATOR CAPTO 335 500 12 03
27
A0005010480
GASKET O.D., 52 MM
27
A0005010880
GASKET O.D., 37 MM
45
A0009971839
SIGHT GLASS , Replaced By: A0009971939
45
A0009971939
SIGHT GLASS
60
N000933008123
SCREW , Replaced By: N304017008008
60
N304017008008
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
72
A0039978540
SEAL RING
80
A3079900051
NUT
90
A0039978248
SEAL RINGTO 357 500 10 49
95
A0049976540
SEAL RING
100
A0009970426
WASHER
105
A0009910445
RING
110
A0005010010
DRAIN PIPE
115
A0005010055
PIPE ADAPTER , Replaced By: A0005010155
115
A0005010155
PIPE ADAPTER WATER LEVEL SENSOR
120
N915035000002
SEAL RING MUFFLER
125
A0045426317
SENDER UNIT , Replaced By: A0095426417
125
A0095426417
SENDER UNIT WATER LEVEL SENSOR
130
N915035000017
SEAL RING AT TANK
