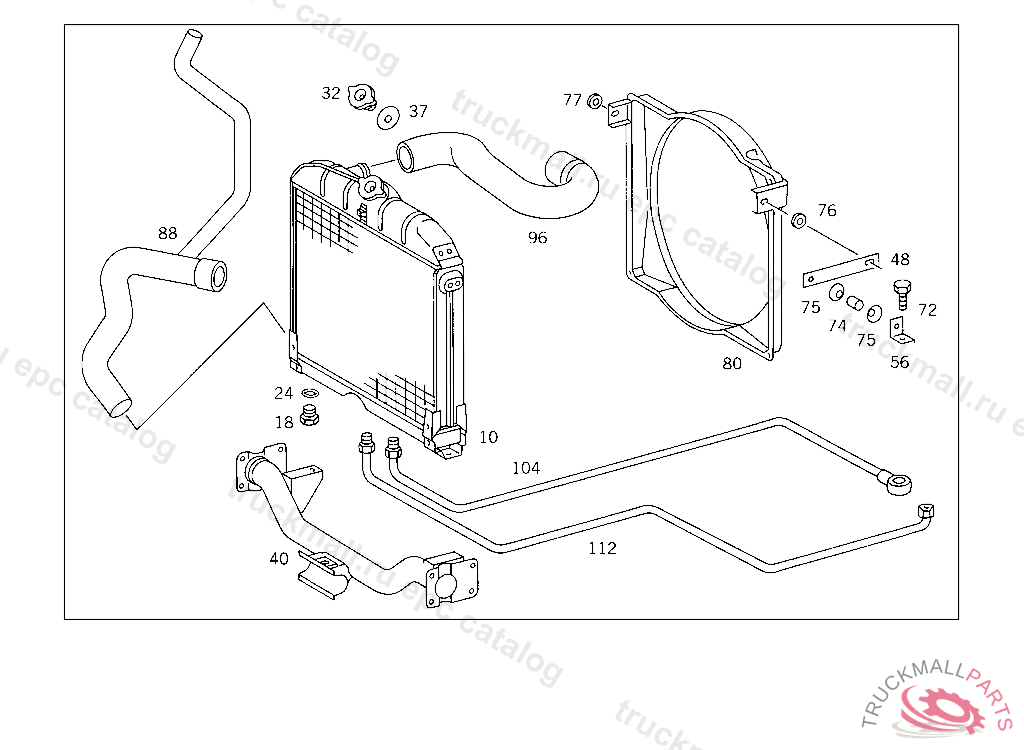

Поз.
Артикул
Описание
10
RADIATORFA.BEHR
10
RADIATOR , FROM CHASSIS 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
18
SCREW PLUG WATER DRAIN
24
SEAL RING FUEL LINE TO FEED PUMP
32
RADIATOR CAPTO 335 500 12 03
32
RADIATOR CAP
32
RADIATOR CAP , Replaced By: A0005015715
37
GASKET O.D., 37 MM
40
CROSS MEMBER RADIATOR,156153 UP TO IDENT NO. 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
48
BRACKET RADIATOR BRACING,TOP
48
BRACKET , Replaced By: A3604293140
48
BRACKET , Replaced By: A3464290340
48
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
48
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
56
BRACKET LEFT
72
SCREW PIPE CLAMP
72
SCREW BRACKET TO CROSS CONNECTION STRUT
72
SCREW , Replaced By: N304017008021
72
SCREW , Replaced By: N304017008034
74
SPACER TUBE RADIATOR BRACING,TOP
75
DISC SPRING RADIATOR BRACING,TOP
76
WASHER EXHAUST MUFFLER TO BRACKET A 8.4
77
WASHER BRACKET TO LEFT SIDE MEMBER
77
WASHER , Replaced By: N009021008213
80
FAN SHROUD RADIATOR
88
HOSE FROM RADIATOR TO WATER PUMP
96
HOSE FROM THERMOSTAT TO RADIATOR
104
LINE .
112
LINE .
