Mercedes A0011513713 - ШЕСТЕРНЯ СТАРТЕРА

C 230 KOMPRESSOR 203.747

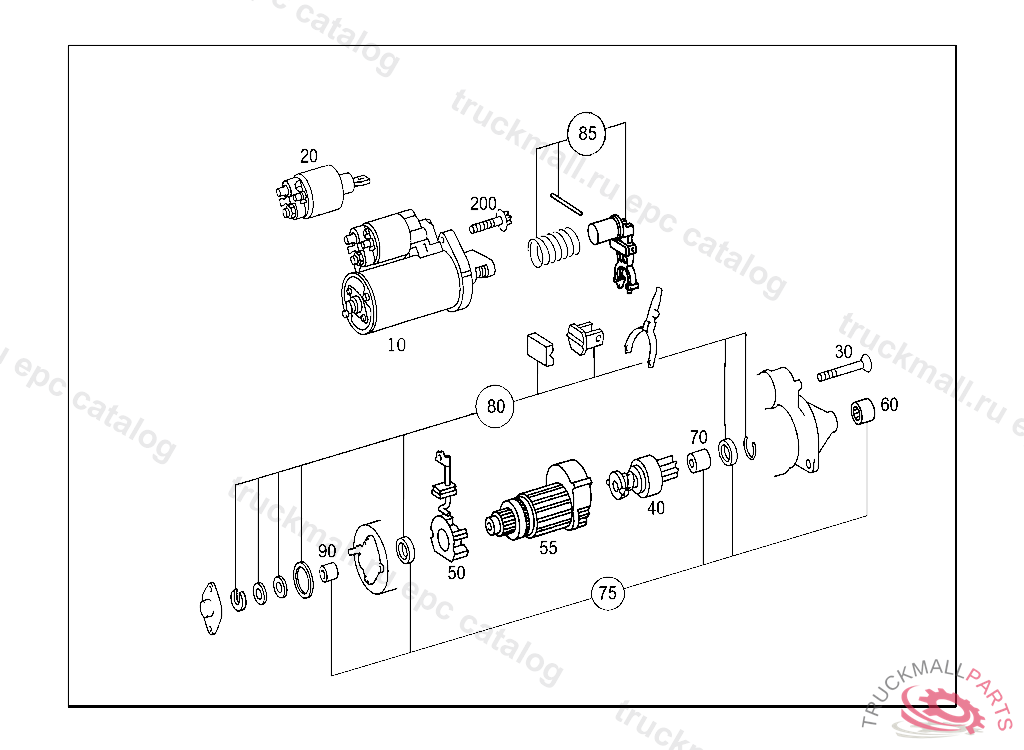

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 023 STARTER

Поз.
Артикул
Описание
10
A0051513401
STARTING MOTORBOSCH
20
A0011522710
SOLENOID SWITCHTO A 004 151 69 01, A 005 151 34 01
30
A0049902712
BOLT. SCREW SOLENOID SWITCH TO HOUSING TO A 004 151 64 01/ 69 01
40
A0011513713
PINIONTO A 005 151 34 01
50
A0011514714
CARBON BRUSH SETTO 005 151 34 01
50
A0011512414
CARBON BRUSH SET , Replaced By: A0011514714
60
A0001518750
BUSHING DRIVE END BEARING TO 005 151 01 01
80
A0001517515
TS ARMATURE. ARMATURE (PARTS KT),DRIVE END BEARING BOSCH, TO A 005 151 34 01
90
A0001519950
BUSHING COMMUTATOR END SHIELD BOSCH,TO A 005 151 39 01
