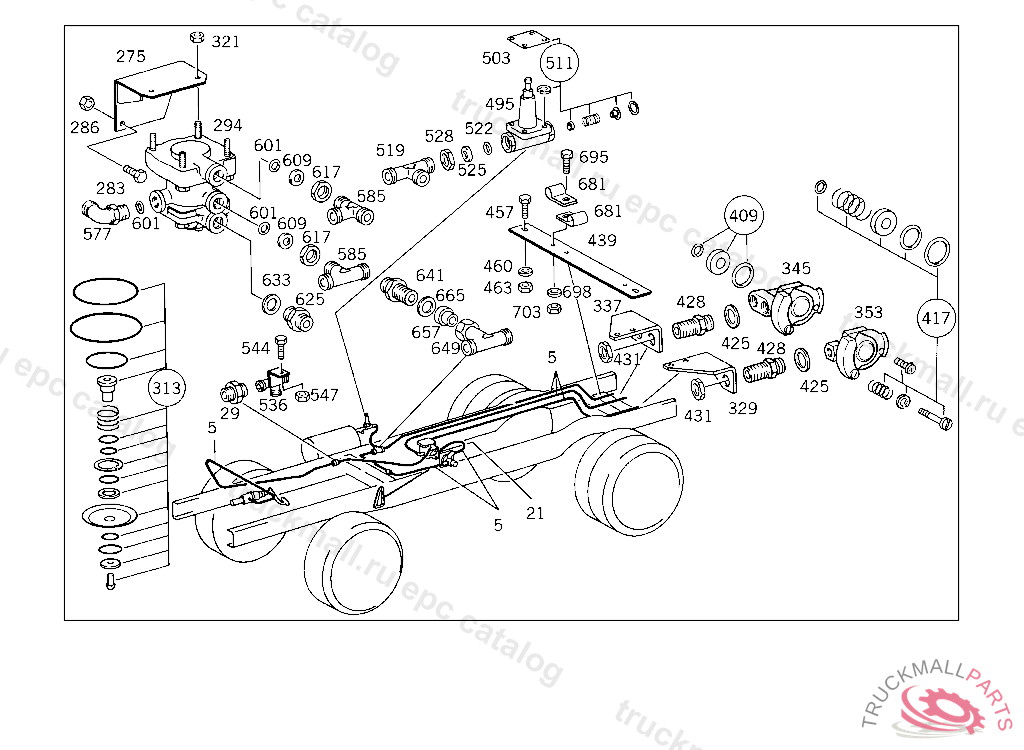

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
21
TUBE FROM HIGH PRESSURE HOSE TO STEERING
29
FITTING (PARTS KIT),LINE RUPTURE
29
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
29
FITTING , Replaced By: A0029906171
275
BRACKET AT SIDE MEMBER
283
SCREW END PIECE TO EXHAUST PIPE M 10X25
286
NUT AIR CLEANER ELEMENT
294
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
294
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313505
294
BRAKE VALVE , Replaced By: A0014313705
294
BRAKE VALVE TRAILER CONTROL VALVE BOSCH,4 375193 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
313
REPAIR KIT , Replaced By: A0024306581
313
REPAIR KITTO 001 431 37 05,4 375193
321
NUT , Replaced By: N913004008001
329
BRACKET LEFT
337
BRACKET RIGHT, UP TO CHASSIS 556499, FROM CHASSIS SA 24019
345
BRAKE LINE COUPLING SUPPLY, RED
353
BRAKE LINE COUPLING BRAKE,YELLOW KNORR
409
REPAIR KITTO 000 429 37 30
417
REPAIR KITTO 000 429 63 30
425
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
428
FITTING BRAKE LINE COUPLING TO BRACKET
431
NUT BRACKET TO SIDE MEMBER
439
BRACKET COMPRESSED AIR LINE
457
SCREW , Replaced By: N304017008034
457
SCREW BRACKET TO CROSS CONNECTION STRUT
460
WASHER , Replaced By: N000125008443
460
WASHER EXHAUST MUFFLER TO STRAP
463
NUT , Replaced By: N913004008001
495
VALVE (OVERFLOW VALVE) BOSCH,5 116581
495
VALVE (OVERFLOW VALVE) WESTINGHOUSE,5 116581
495
VALVE (OVERFLOW VALVE) GRAU,5 116581
503
DIAPHRAGM
511
REPAIR KITTO 001 429 52 44
519
T-FITTING
522
O-RING CHECK VALVE TO AIR RESERVOIR
525
THRUST RING CHECK VALVE TO AIR RESERVOIR
525
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
528
NUT CHECK VALVE TO AIR RESERVOIR
536
DISTRIBUTOR LINE TO SIDE MEMBER
544
SCREW COVER PLATE TO BRACKET
547
NUT PUMP TO BRACKET
547
NUT , Replaced By: N913004006001
577
ELBOW FITTING AT BRAKE BOOSTER
585
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
585
T-FITTING RELAY VALVE,CONNECTION: "20"
601
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
609
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
609
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
617
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
625
FITTING DELIVERY LINE TO PUMP
633
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
633
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
641
FITTING DELIVERY LINE TO FRAME
649
FITTING , Replaced By: A0019903170
657
BUSHING AT SIDE MEMBER,334435
665
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
681
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
695
SCREW COVER PLATE TO BRACKET
698
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
703
NUT PUMP TO BRACKET
703
NUT , Replaced By: N913004006001
999
COVERTO 000 429 49 30
999
COVERTO 000 429 51 30,4 434235
999
COVER"WABCO", NOT USED
999
COVER SUPPLY, RED "WABCO"
999
SEAL RING"WABCO"
999
SEAL RING , Replaced By: A0004296930
999
SEAL RING , Replaced By: A0004292184
999
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
999
BRAKE LINE COUPLING , Replaced By: A0004297830
999
BRAKE LINE COUPLING , Replaced By: A0004297930
999
BRAKE LINE COUPLING SUPPLY, RED
999
BRAKE LINE COUPLING BRAKE,YELLOW GRAU
999
BRAKE LINE COUPLING SUPPLY, RED
999
BRAKE LINE COUPLINGTO 000 429 38 30
999
BRAKE LINE COUPLING SUPPLY, RED
999
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
999
REPAIR KIT"KNORR"
999
BRAKE VALVE SEAL RING TO 001 431 18 05,4 412020
999
DIAPHRAGM , Replaced By: A0004313186
999
CUP , Replaced By: A0004313086
999
REPAIR KITBOSCH
999
REPAIR KIT , TO 000 429 49 304 434235
999
REPAIR KITTO 001 431 34 05,4 375193
999
REPAIR KIT , Replaced By: A0004304606
999
SEAL RINGTO 001 431 37 05,4 375193
999
LOOM TIE LINE MOUNTING
999
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
999
REPAIR KITTO 000 429 78 30,4 434236
999
REPAIR KITTO 001 431 48 05,4 375193
999
SEAL RINGTO 000 429 38 30
999
SEAL RING"GRAU"
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
BRACKET BRAKE HOSE,316883327335
999
BRACKET BRAKE HOSE
999
WASHER REAR CROSS MEMBER TO SIDE MEMBERS,284287
999
BRACKET , Replaced By: A3103120940
999
ROD
999
BUSHING T-FITTING TO SIDE MEMBER
999
GUIDE BRAKE PEDAL THRU CAB FLOOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 589554
999
LOCK RINGTO 001 431 37 05,4 375193
999
SCREW , Replaced By: N304017008016
999
GROOVED PINTO 000 429 51 30,4 434235
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
PULL ROD , Replaced By: N900331010668
999
PULL ROD BRAKE LINKAGE
