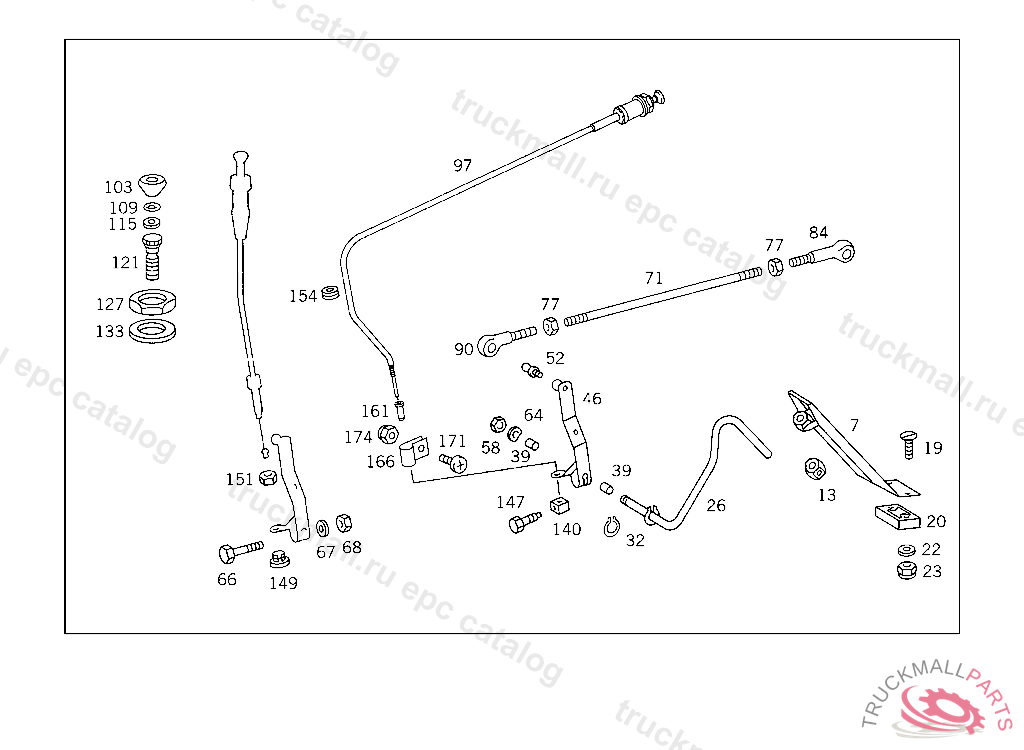

Поз.
Артикул
Описание
7
ACCELERATOR PEDAL ,150172
13
JOINT
19
SCREW PEDAL TO CAB FLOOR
19
SCREW COVER TO BATTERY SUPPORT M 6X16
20
SHIM ACCELERATOR PEDAL TO CAB,556500 ALSO INSTALLED ON 553795,555902,556120.
22
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
22
WASHER COMPRESSED AIR LINE TO BRACKET
23
NUT PUMP TO BRACKET
23
NUT , Replaced By: N913004006001
26
LEVER ,502879, Replaced By: A3103000425, +001A3103000025
26
LEVER (CONTROL LEVER),502880
32
RETAINING RING CONTROL SHAFT TO CAB,5 188249
39
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
46
LEVER (CONTROL LEVER),528499
46
LEVER CONTROL,014893
46
LEVER (CONTROL LEVER),502880-528498
52
BALL PIVOT
58
NUT , Replaced By: N308673010000
58
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
64
SPRING WASHER STEERING COLUMN BRACKET TO CAB
66
SCREW , Replaced By: N304017006012
66
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
67
WASHER COMPRESSED AIR LINE TO BRACKET
67
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
NUT , Replaced By: N913004006001
68
NUT PUMP TO BRACKET
71
ROD FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
77
NUT BALL PIVOT TO LEVER
84
BALL SOCKET ROD TO LEVER,281716
90
BALL SOCKET ROD TO LEVER,284049
97
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE, 10/50 528499 20/60 528275
97
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE
97
KNOB , Replaced By: A3093000907
103
KNOB , 10/50 528499 20/60 528275
103
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
109
WASHER MANUAL CONTROL,4 155516
115
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
121
GUIDE , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
127
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
127
NUT , Replaced By: A3129901151
133
WASHER , ON SPECIAL REQUEST
133
SPACER WASHER ,303365 10/50 528498 20/60 528274
140
END PIECE WIRE CABLE
140
END PIECE , Replaced By: A1233000086
147
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000933006229, +001A3763020468
147
SCREW IN CASE OF SUBSEQUENT INSTALLATION
149
BUSHING CONTROL LEVER,B 892892
151
NUT
151
NUT , Replaced By: N304035008001
154
GROMMET ,D 314239
161
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
166
CLAMP LINE MOUNTING
171
SCREW , Replaced By: N000000001145
171
SCREW BRACKET TO COVERING
174
NUT , Replaced By: N913004006001
174
NUT PUMP TO BRACKET
999
KNOB , Replaced By: A3083007007
