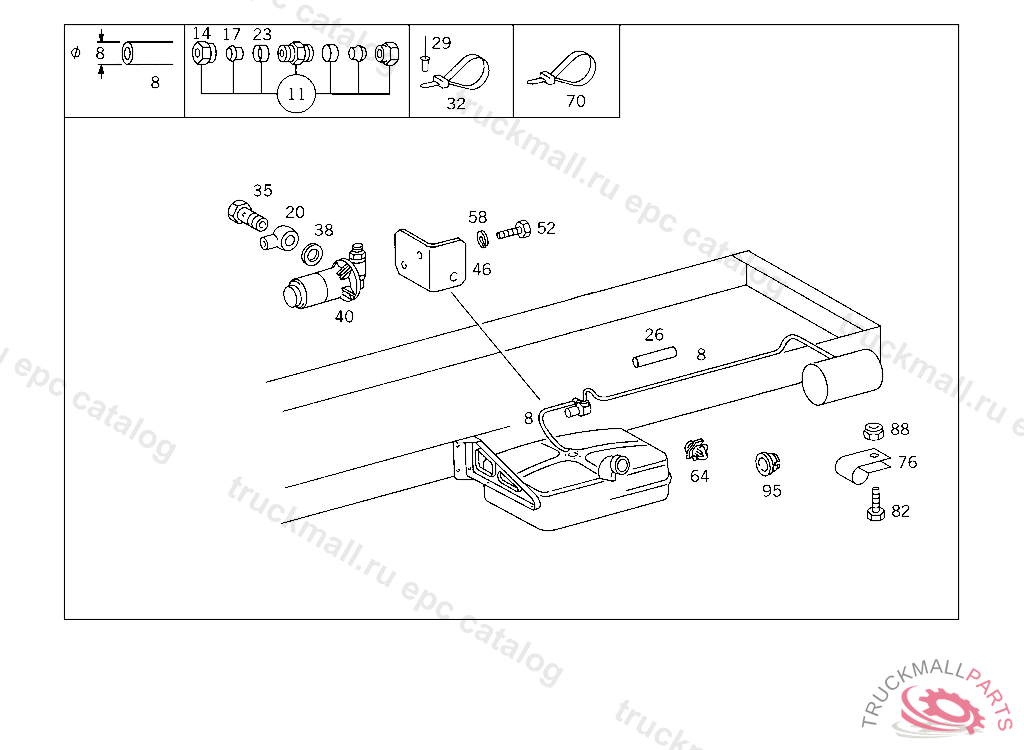

Поз.
Артикул
Описание
8
HOSE FROM FUEL TANK TO HEATER 4X8 MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
FITTING (PARTS KIT),LINE RUPTURE
11
FITTING , Replaced By: A0029905971
14
UNION NUT LINE CONNECTION
17
GLAND LINE CONNECTION
20
BANJO UNION , Replaced By: N915052006003
20
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
23
SLEEVE LEAK LINE
23
SLEEVE LINE CONNECTION
23
SLEEVE , Replaced By: N915062006000
26
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
29
RIVET SPRING CLAMP TO SPRING LEAF
32
HOSE CLAMP HOSE FASTENING 9/13MM
32
CLAMP LINE CONNECTION
35
HOLLOW SCREW LINE CONNECTION
38
SEAL RING FUEL LINE TO FEED PUMP
40
PUMP
46
BRACKET FUEL-OIL PUMP,374494
52
SCREW COVER PLATE TO BRACKET
58
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
64
CLIP
70
LOOM TIE LINE MOUNTING
70
LOOM TIE LINE MOUNTING
76
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
76
CLAMP , Replaced By: N916016008200
76
CLAMP , Replaced By: A3604300143
76
CLAMP ,K 147121, Replaced By: N000000000319
82
SCREW COVER PLATE TO BRACKET
88
NUT , Replaced By: N913004006001
88
NUT PUMP TO BRACKET
95
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
95
BUSHING , Replaced By: A0009973481
95
BUSHING FUEL LINE THRU FRAME SIDE MEMBER
