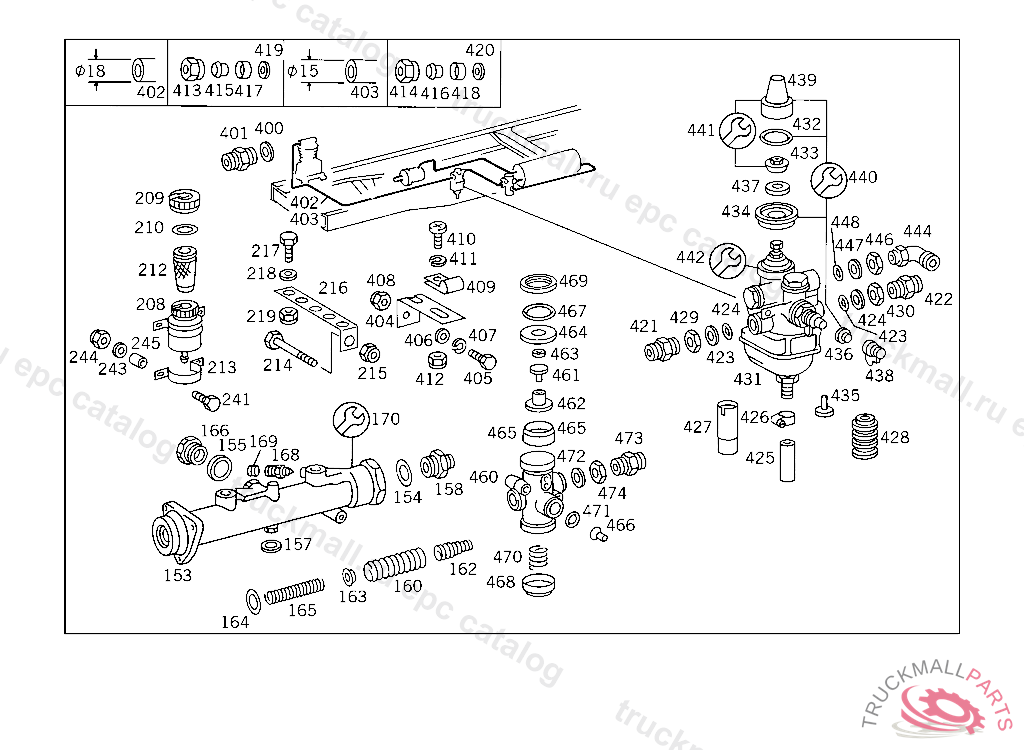

Поз.
Артикул
Описание
208
RESERVOIR WITH BRAKE SYSTEM WARNING DEVICE FAG
208
RESERVOIR WITH WARNING DEVICE,4 314610
209
FILLER CAPTO 001 431 38 02,000 431 58 02
209
FILLER CAP , Replaced By: A0004317633
209
FILLER CAP , Replaced By: A0004316533
210
SEAL RING42X21.5 MM
212
STRAINERTO 001 431 38 02
213
CLAMPTO 000 431 58 02
214
SCREW VALVE TO BRACKET
214
SCREW VALVE TO BRACKET, Replaced By: N304014008002
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
NUT , Replaced By: N913004008001
216
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
217
SCREW CONSOLE TO SIDE MEMBER
218
WASHER
219
NUT SUPPORT TO SIDE MEMBER
241
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
241
SCREW COVER PLATE TO BRACKET
241
SCREW COVER PLATE TO BRACKET
243
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
244
NUT PUMP TO BRACKET
244
NUT , Replaced By: N913004006001
245
TUBE. BUSHING CAB FLOOR COVERING
400
SEAL RING LINE CONNECTION
401
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
401
DOUBLE FITTING ,A 027954
402
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
403
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
404
BRACKET COMPRESSED AIR LINE
405
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
405
SCREW PIPE CLAMP
405
SCREW , Replaced By: N304017008021
406
WASHER EXHAUST MUFFLER TO STRAP
406
WASHER , Replaced By: N000125008443
407
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
407
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
408
NUT BRACKET TO SUPPORT AND TO END PIECE
408
NUT
409
CLAMP FEED LINE TO THERMOSTAT
409
CLAMP FEED LINE TO THERMOSTAT
409
CLAMP FEED LINE TO THERMOSTAT
410
SCREW CLAMP MOUNTING M 6X16
410
SCREW , Replaced By: N000000001146
411
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
412
NUT BALL PIVOT TO LEVER
413
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
414
UNION NUT BUTT SCREW CONNECTION
415
SEAL CONE LINE MOUNTING
415
GLAND , Replaced By: A0019901167
416
GLAND LINE CONNECTION
417
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
418
THRUST RING BUTT SCREW CONNECTION
419
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
420
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
420
SEAL RING , Replaced By: N007603012121
421
FITTING SHUTTLE VALVE,CONNECTION: "20"
421
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
421
DOUBLE FITTING PRESSURE REGULATOR,CONNECTION "1",4 2827078 000001-8 001702
422
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
423
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
423
SEAL RING LINE CONNECTION
424
O-RING CHECK VALVE TO AIR RESERVOIR
425
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
426
CLAMP ,4 431032
426
CLAMP PRESSURE REGULATOR,CONNECTION "3",4 431033
427
MUFFLER PRESSURE REGULATOR BREATHING
428
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
429
NUT SUCTION LINE TO OIL PUMP
430
NUT CHECK VALVE TO AIR RESERVOIR
431
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
431
PRESSURE REGULATOR , Replaced By: A0024315906
431
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
431
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION BOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
431
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
431
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
432
SEAL RING
433
SLEEVE
434
STRAINER
435
VALVE DISC
436
VALVE DISC ON TAPPED
437
VALVE DISC
438
PLUG
439
PROTECTIVE CAP
440
REPAIR KIT , UP TO 625
440
REPAIR KIT , UP TO 625
440
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
441
REPAIR KIT , FROM 626
441
REPAIR KIT , FROM 626
442
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
442
REPAIR KIT VALVE KIT WABCO,5 148812
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
442
REPAIR KITTO 001 431 12 06, KNORR 3200
442
REPAIR KITTO 001 431 12 06, KNORR 3200
442
REPAIR KITGRAU,5 148812
442
REPAIR KIT PRESSURE REGULATOR WABCO
442
REPAIR KIT PRESSURE REGULATOR WABCO
444
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
446
NUT CHECK VALVE TO AIR RESERVOIR
447
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
448
O-RING CHECK VALVE TO AIR RESERVOIR
460
VALVE , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
461
VALVE DISC024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
462
VALVE DISC101
463
SEALBOSCH 024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
464
CUP , INCLUDED IN RANGE OF DELIVERY OF 000 431 68 06
465
CUP , Replaced By: A0014312386
465
CUP101
466
CUPTO BOSCH-NR.0481 027 104
467
GASKETTO 000 429 16 30
468
PROTECTIVE CAP101
469
FILLER CAP
470
SPRING , Replaced By: A0009935205
471
SEAL RING101
472
SEAL RING LINE CONNECTION
473
FITTING SHUTTLE VALVE,CONNECTION: "20"
474
NUT CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
YOKE , Replaced By: A0009961501
999
SEAL RING COMPRESSED AIR LINE TO DOUBLE FITTING
999
FITTING , Replaced By: A0029971872
999
FITTING , Replaced By: A0029971172
999
FITTING , Replaced By: A0019972372
999
FITTING ,4 667210
999
FITTING , Replaced By: A0009907771
999
FITTING , Replaced By: A0009905070
999
PULL ROD , Replaced By: N900331008420
999
PULL ROD , Replaced By: N900331008427
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD , Replaced By: N900331010668
999
PULL ROD , Replaced By: N900331010669
999
RING , Replaced By: A0005830296
999
UNION NUT OIL LINE TO RADIATOR,5 106401
999
SHIM RESERVOIR
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
LINE FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER 700 MM,4 644237
999
RESERVOIR42 UND 18 LTR.
999
RESERVOIR42 UND 18 L
999
BRACKET , Replaced By: A3812950440
999
BRACKET
999
BRACKET , Replaced By: A3184280240
999
FITTING AT BRAKE BOOSTER, UP TO CHASSIS 699969 EXCEPT FOR 500001-599999
999
REPAIR KIT , Replaced By: A3534200167
999
SCREW , Replaced By: N900170012001, +001N913001012000
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3604292940
999
BRACKET COMPRESSED AIR LINES TO FRAME
999
BRACKET , Replaced By: A3604292940
999
BRACKET , Replaced By: A3853530440
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
CONSOLE , Replaced By: A3164300111
999
WASHER , Replaced By: A4219905440
999
CLAMP LINE MOUNTING
999
LINE , Replaced By: A3812902414
999
LINE , Replaced By: A6202901113
999
LINE , Replaced By: A3812902314
999
ADHESIVE FOIL GUIDE SIGN
999
LINE , Replaced By: A3812902114
999
PIN BRAKE LEVER, 601213
999
UNION NUT , Replaced By: N915017008100
999
UNION NUT , Replaced By: N915017012100
999
UNION NUT AIR COMPRESSOR LINE CONNECTION
999
UNION NUT , Replaced By: N915018018000
999
FITTING , Replaced By: A0019909871
999
FITTING , Replaced By: A0019902771
999
RIVET
999
NUT , Replaced By: N074361014202
999
SPRING (RELEASE SPRING)
999
BRACKET , Replaced By: A3184313940
999
BRACKET ,4 373946
999
BRACKET , Replaced By: A3812710540
999
BRACKET BRAKE BOOSTER,4 282708
999
BRACKET ,4 282708 051,052,053,054,065,066,067,070,072 UP TO CHASSIS 4 383113,056,057,058,059,090,092 UP TO CHASSIS 4 373946 EXCEPT FOR 4 365508, 4 367796,4 368182,4 368578,4 368976,4 369331, Replaced By: A3184313940, +001A3184314040
999
BRACKET , Replaced By: A3604293140
999
BUSHING , Replaced By: A3184310053
999
CONSOLE , Replaced By: A3604301311, +001A3604300040
999
BRACKET MASTER CYLINDER TO BRAKE BOOSTER,4 373946
999
BRACKET BRAKE LEVER ASSEMBLY TO FIRE WALL,4 373946
999
BRACKET CONSOLE TO FRAME SIDE MEMBER,4 373946
999
BRACKET BRAKE BOOSTER,4 373946
999
BRACKET POS. CABLE,XB209706
999
ANGLE , Replaced By: A4220980239
999
REPAIR KIT , Replaced By: A3164201138
999
REPAIR KIT , Replaced By: A3164201038
999
PIPE LINE , Replaced By: A0004290701
999
PIPE LINE , Replaced By: A0004290701
999
PIPE LINE AIR PRESSURE GAUGE LINES 6 MM, 695198
999
PIPE LINE AIR PRESSURE GAUGE LINES, 695198
999
SHIM BRAKE BOOSTER, 695198
999
CONSOLE BRAKE BOOSTER,4 282707
999
LINE , Replaced By: A0004291001
999
LINE , Replaced By: A0004291001
999
LINE , Replaced By: A0004291001
