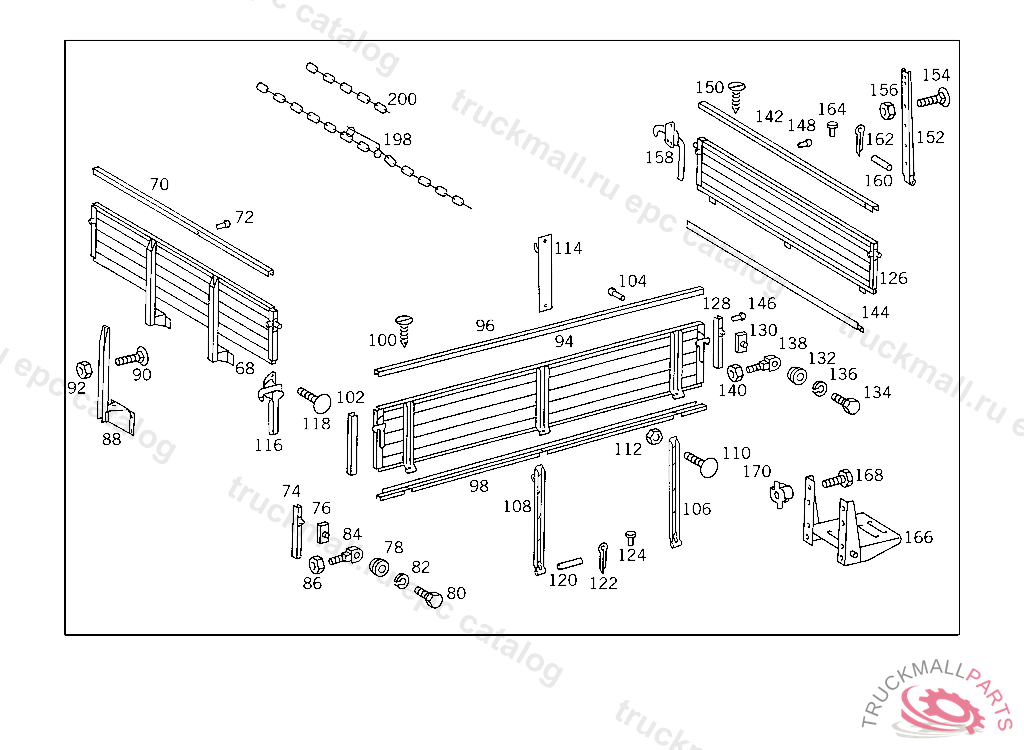

Поз.
Артикул
Описание
68
FRONT PANEL
70
BINDING RAIL TOP
72
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
72
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
72
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
74
BINDING RAIL RIGHT
74
BINDING RAIL LEFT
76
PLATE THREADED
78
WASHER (ECCENTRIC PLATE) PLATFORM PANEL FASTENER
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
82
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
84
RING FRONT PANEL
86
NUT BRACKET TO SUPPORT AND TO END PIECE
88
BRACING FRONT PANEL
90
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
90
SCREW , Replaced By: N304017008016
90
SCREW BRACKET TO BODY M8X40
90
SCREW BRACKET TO BODY M8X40
90
SCREW PLATFORM MOUNTING M 8X35
90
SCREW PLATFORM MOUNTING M 8X35
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
92
NUT , Replaced By: N913004008001
92
NUT
92
NUT
94
SIDE PANELTO 314 600 30 03
96
BINDING RAIL TOP
98
BINDING RAIL REAR SIDE PANEL
100
WOOD SCREW BINDING RAIL TO PLATFORM SIDE PANEL
102
BINDING RAIL RIGHT
102
BINDING RAIL LEFT
104
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
104
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
106
HINGE REAR PANEL,4 118230
106
HINGE
110
SCREW PLATFORM MOUNTING M 8X35
112
NUT
114
BRACKET TENSION CHAIN
116
HOOK RIGHT
116
HOOK RIGHT
116
HOOK LEFT FRONT AND RIGHT REAR
116
HOOK LEFT FRONT AND RIGHT REAR
118
SCREW BRACKET TO BODY M8X40
120
PIN
120
PIN SIDE PANEL TO SUBSTRUCTURE
122
COTTER PINROCKINGER TYP 260 G140
124
GROOVED NAIL PLATFORM SIDE PANEL TO SUBSTRUCTURE,4 1182308 000001-8 001702
126
REAR PANEL
128
METAL SECTION LEFT AND RIGHT,4 118230 TO BE ADAPTED DURING ASSEMBLY
128
BINDING RAIL RIGHT
128
BINDING RAIL LEFT
130
PLATE THREADED
132
WASHER (ECCENTRIC PLATE) PLATFORM PANEL FASTENER
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW , Replaced By: N304017010002
136
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
138
RING FRONT PANEL
140
NUT BRACKET TO SUPPORT AND TO END PIECE
142
BINDING RAIL TOP
142
BINDING RAIL TOP
144
BINDING RAIL REAR SIDE PANEL
144
BINDING RAIL REAR SIDE PANEL
146
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
148
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
150
WOOD SCREW BINDING RAIL TO PLATFORM SIDE PANEL
152
HINGE REAR PANEL,4 118230
152
HINGE
154
SCREW FIXTURE TO PLATFORM M8X45
154
SCREW PLATFORM MOUNTING M 8X35
156
NUT
158
HOOK RIGHT
158
HOOK LEFT FRONT AND RIGHT REAR
160
PIN
160
PIN SIDE PANEL TO SUBSTRUCTURE
162
COTTER PINROCKINGER TYP 260 G140
164
GROOVED NAIL PLATFORM SIDE PANEL TO SUBSTRUCTURE,4 1182308 000001-8 001702
166
FOLDING STEP
168
SCREW FOLDING STEP TO REAR PANEL
168
SCREW , Replaced By: N000965008007
170
THREADED INSERT. THREADED CHUCK FOLDING STEP TO REAR PANEL
198
CHAIN WITH CHAIN LOCK
198
CHAIN WITH CHAIN LOCK
200
CHAIN , ORDER BY THE METER
200
CHAIN , ORDER BY THE METER
999
RUBBER BUFFER PLATFORM SIDE AND REAR PANELS
999
FASTENER , Replaced By: A3406600093
999
TENSION CHAIN , Replaced By: A3406600093
999
PANELLING
999
CONNECTION , Replaced By: A3146100432
999
CONNECTION , Replaced By: A3146100532
999
CONNECTION , Replaced By: A3146101132
999
CONNECTION , Replaced By: A3146101132
999
CONNECTION , Replaced By: A3146100432
999
CONNECTION , Replaced By: A3146100432
999
EDGING , Replaced By: A0009853547, +003A3526160030
999
EDGING , Replaced By: A0009853547, +004A3526160030
999
EDGING , Replaced By: A0009853547, +004A3526160030
999
SUBSTRUCTURE , Replaced By: A3146117820, +002A3146100432, +002A3146100532, +002A3146123014
999
SUBSTRUCTURE , Replaced By: A3146117820, +002A3146100432, +002A3146100532, +002A3146100334, +003A3146123014
999
SUBSTRUCTURE ,4 1182308 000001-8 001702, Replaced By: A3146117820, +002A3146100432, +002A3146100532, +002A3146123014
999
SUBSTRUCTURE ,4 1182308 000001-8 001702, Replaced By: A3146117820, +002A3146100432, +002A3146100532, +002A3146100334, +003A3146123014
999
SUBSTRUCTURE , Replaced By: A3146118820, +004A3146100514, +005A3146100432, +003A3146100532
999
SUBSTRUCTURE , Replaced By: A3146117720, +002A3146100514, +004A3146100432, +002A3146100532, +002A3146100434
999
SIDE MEMBER FRONT
999
SIDE MEMBER REAR,4 435172
999
SIDE MEMBER REAR,4 435173
999
EDGING , Replaced By: A3146163885
999
ANGLE FRONT PANEL TO SUBSTRUCTURE
999
BINDING RAIL , Replaced By: A3146371470
999
BINDING RAIL , Replaced By: A3146371470
999
BINDING RAIL , Replaced By: A3096371470
999
BINDING RAIL ,4 118230, Replaced By: A3146371470
999
RAIL , Replaced By: A3146371470
999
RAIL BOTTOM,604333-4 118229
999
RAIL , Replaced By: A3146371470
999
RAIL , Replaced By: A3146371970
999
PLATFORM ,4 118229, Replaced By: A3146003003, +001A3165403573, +001A3165403973
999
FRONT PANEL
999
SIDE PANEL , 602131 USED ON PLATFORM LESS EXTENSION PANEL
999
REAR PANEL , Replaced By: A3146470470
999
FLOOR , Replaced By: A3826160286
999
STOP , Replaced By: A3526160686
999
RAIL , Replaced By: A0029854451
999
RAIL , Replaced By: A0029854451
