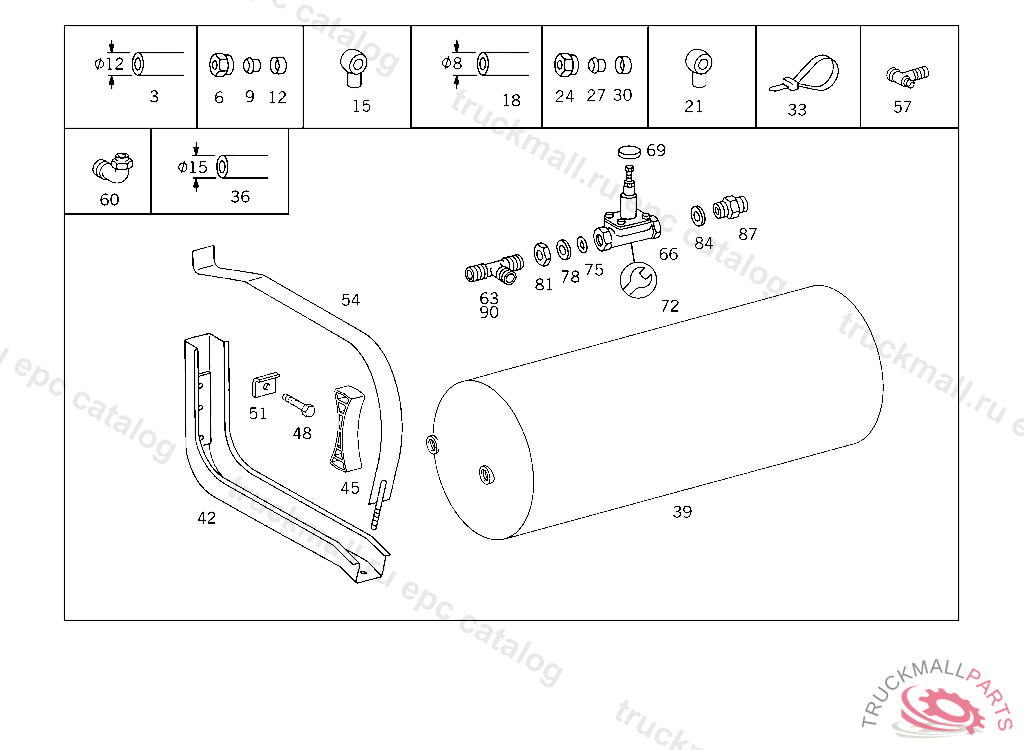

Поз.
Артикул
Описание
3
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
3
HOSE , Replaced By: A0009872827
6
UNION NUT LINE CONNECTION
6
UNION NUT LINE CONNECTION, Replaced By: N000000006239
6
UNION NUT LINE CONNECTION
6
UNION NUT LINE CONNECTION, Replaced By: N000000006239
9
SEAL CONE LINE CONNECTION
9
SEAL CONE LINE CONNECTION
9
GLAND , Replaced By: A0019901967
12
SLEEVE LINE CONNECTION
12
SLEEVE LINE CONNECTION
15
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
15
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
15
BANJO UNION , Replaced By: N915052009009
18
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
18
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
21
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
21
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
24
UNION NUT LINE CONNECTION
27
GLAND LINE CONNECTION
30
SLEEVE LINE CONNECTION
33
LOOM TIE LINE MOUNTING
33
LOOM TIE LINE MOUNTING 280 MM
33
LOOM TIE LINE MOUNTING 280 MM
33
LOOM TIE LINE MOUNTING 280 MM
36
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
39
RESERVOIR40L,276 MM,8.5 BAR
39
RESERVOIR , Replaced By: A3454308205
42
CONSOLE , 674067
42
CONSOLE , Replaced By: A3604301311
45
BASE AIR RESERVOIR TO CONSOLE
48
SCREW , Replaced By: N308676012015
51
PLATE ,5 317650
51
PLATE CONSOLE TO SIDE MEMBER
54
STRAP AIR RESERVOIR TO CONSOLE
57
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
57
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
60
ELBOW FITTING DELIVERY LINE TO PUMP
60
ELBOW FITTING DELIVERY LINE TO PUMP
60
FITTING , Replaced By: A0019902771
63
T-FITTING COMPRESSED AIR VALVE CONNECTION
63
T-FITTING COMPRESSED AIR VALVE CONNECTION
66
VALVE (OVERFLOW VALVE) BOSCH,5 116581
66
VALVE (OVERFLOW VALVE) WESTINGHOUSE,5 116581
66
VALVE (OVERFLOW VALVE) GRAU,5 116581
66
VALVE (OVERFLOW VALVE) BOSCH,5 116581
66
VALVE (OVERFLOW VALVE) WESTINGHOUSE,5 116581
66
VALVE (OVERFLOW VALVE) GRAU,5 116581
69
DIAPHRAGM
69
DIAPHRAGM
72
REPAIR KITTO 001 429 52 44
72
REPAIR KITTO 001 429 52 44
75
O-RING CHECK VALVE TO AIR RESERVOIR
75
O-RING CHECK VALVE TO AIR RESERVOIR
78
THRUST RING CHECK VALVE TO AIR RESERVOIR
78
THRUST RING CHECK VALVE TO AIR RESERVOIR
78
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
81
NUT CHECK VALVE TO AIR RESERVOIR
81
NUT CHECK VALVE TO AIR RESERVOIR
84
SEAL RING LINE CONNECTION
84
SEAL RING LINE CONNECTION
87
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
87
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
87
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
87
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
87
FITTING , Replaced By: A0029971172
90
T-FITTING (SAFETY VALVE)
90
T-FITTING (SAFETY VALVE)
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
REPAIR KIT"KNORR"
999
REPAIR KITKNORR
999
SLIDETO 000 431 50 14,000 431 24 14
999
PISTONVOSS
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SPRINGTO 000 429 16 30
999
REPAIR KITWABCO
999
BRACKET BRAKE LINE COUPLING TO REAR CROSS MEMBER, UP TO CHASSIS 4 282707,AND FROM CHASSIS 8 000001
