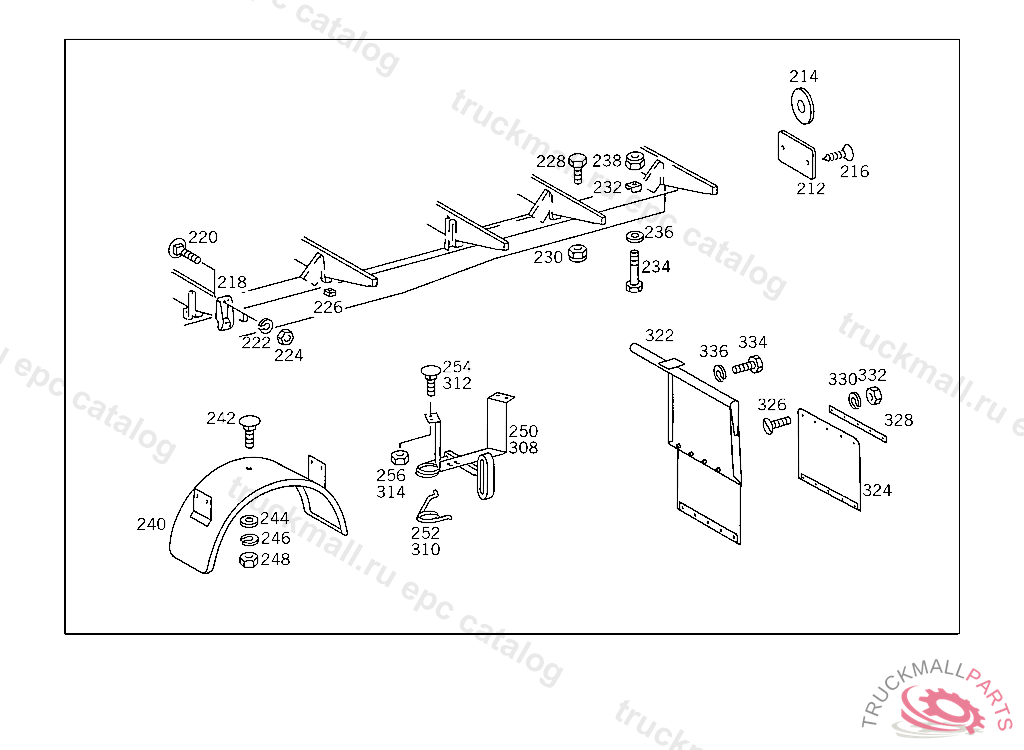

Поз.
Артикул
Описание
212
REFLECTOR AMBER
212
SIDE REFLECTOR , Replaced By: A0008262440
214
REFLECTOR FENDER
214
REFLECTOR REAR LEFT AND RIGHT
214
REFLECTOR AMBER
216
WOOD SCREW REFLECTOR TO PLATFORM 5X25 MM,4 874044
216
WOOD SCREW REFLECTOR TO PLATFORM 4X25 MM,4 874043
218
PLATE PLATFORM TRANSVERSE FIXING
220
SCREW REAR SIDE PANEL M8X50
222
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
224
NUT
226
PLATE RUBBER MOUNTING TO SUPPORT
228
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
230
NUT PLATFORM MOUNTING
232
PLATE AT FRAME
234
SCREW FOR SPRING CLAMPS,5 484789
234
SCREW , Replaced By: N308765012007
236
WASHER GROUND STRAP TO ENGINE, UP TO CHASSIS 4 602752,EXCEPT FOR 551570-599999
238
NUT STRAP TO SUPPORT
240
REAR FENDER
240
REAR FENDER REAR,613536-4 3855638 000001-8 001702
242
SCREW BRACKET TO BODY M8X40
242
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
242
SCREW , Replaced By: N304017008016
244
WASHER HIGH PRESSURE HOSE TO BRACKET
246
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
248
NUT
250
FIXTURE CHOCK,755918
252
SPRING CHOCK
254
SCREW BRACKET TO BODY M8X40
256
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
256
NUT , Replaced By: N913004008001
322
MUD APRON RIGHT
322
MUD APRON LEFT
324
SPLASH GUARD450X300 MM
326
SCREW
328
BRACKET MUD APRON
330
LOCK WASHER BRACKET TO STEERING COLUMN END
332
NUT IN CASE OF SUBSEQUENT INSTALLATION
332
NUT , Replaced By: N304032005005
334
SCREW BRACKET TO TRANSMISSION
334
SCREW , Replaced By: N308676012038
336
LOCK WASHER FITTING TO BRACKET
999
RUBBER BUFFER PLATFORM SIDE AND REAR PANELS
999
CONNECTION , Replaced By: A3146100432
999
SUBSTRUCTURE , Replaced By: A3146118820, +004A3146100514, +005A3146100432, +003A3146100532
999
SUBSTRUCTURE , Replaced By: A3146118820, +004A3146100514, +005A3146100432, +003A3146100532, +002A3146100434
999
SIDE MEMBER REAR,4 435172
999
SIDE MEMBER REAR,4 435173
999
RAIL , Replaced By: A3146371470
999
RAIL , Replaced By: A3146371970
999
TAKE-UP DEVICE , Replaced By: A3526100052
999
WASHER SHOCK ABSORBER TO SIDE MEMBER
