Поз.
Артикул
Описание

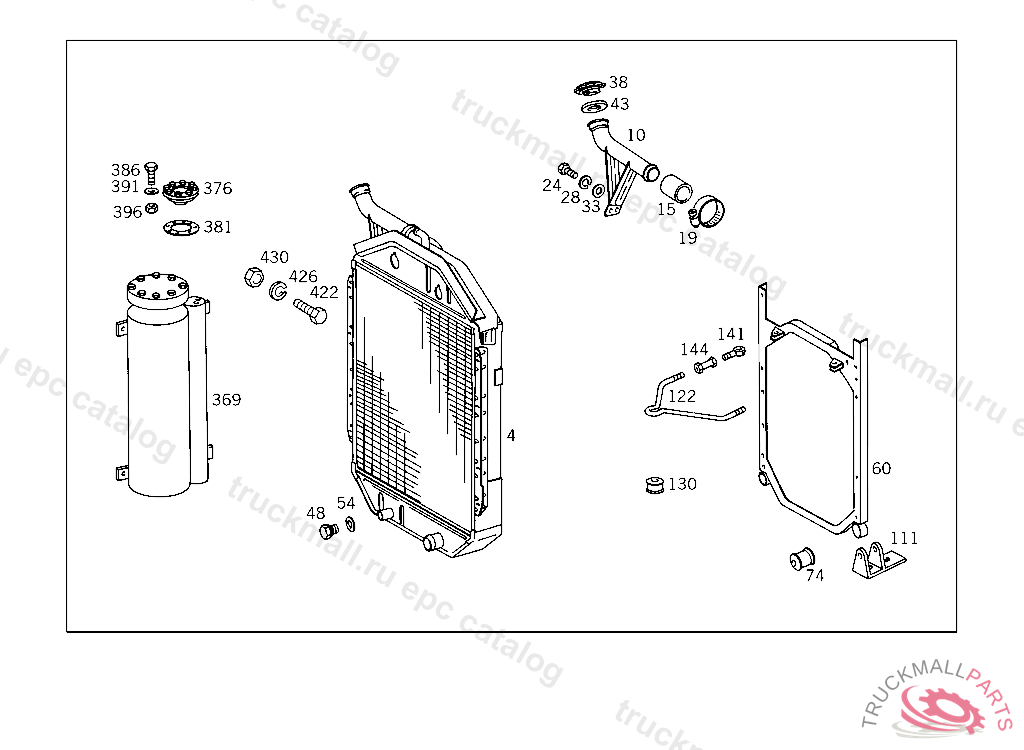

4
RADIATOR , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
10
FILLER NECK , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
15
HOSE , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
19
LOOM TIE HOSE TO FILLER NECK
24
SCREWM 6X12
28
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
33
WASHER , Replaced By: N009021006208
38
FILLER CAP , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
43
SEAL RING , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
48
SCREW PLUG WATER DRAIN
54
SEAL RING , ONLY APPLICABLE TO IDENT NO. 662256,681960,681966,681969,681976,682036,682038,682051,682063,682066,682081.
60
FRAME , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
74
JOINT RUBBER BRACKET TO SUBSTRUCTURE
74
JOINT RUBBER , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3216420074
111
MOUNTING RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE
122
ANGLE , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
130
JOINT RUBBER , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
130
JOINT RUBBER , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3216420174
141
EYEBOLT , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
144
TURNBUCKLE , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
369
TANK , 321.423,426 UP TO CHASSIS 005920,424,427 UP TO CHASSIS 005877
376
COVER
381
GASKET
386
SCREW 3/2-WAY VALVE TO BRACKET
391
LOCK WASHER PLUG SOCKET
396
NUT TACHOGRAPH TO BRACKET
422
SCREW CABLE TO ALTERNATOR
426
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
430
WASHER PLUG SOCKET TO BRACKET
999
VALVE
999
999
999
999
999
999
999
999
SUPPORT
999
HOSE RETURN LINE, TO BE ADAPTED DURING ASSEMBLY
999
SPACER WASHER AS REQUIRED 0.5 MM
999
SPACER WASHER AS REQUIRED 1.0 MM
999
CLAMP
999
HOSE
999
SPACER TUBE
999
RUBBER STRIP
999
999
SUPPORT RADIATOR BASE FRAME
999
RUBBER MOUNTING CLAMP TO SUBSTRUCTURE
999
SPACER TUBE CLAMP TO SUBSTRUCTURE
999
SCREW ,D 027194
999
SCREW ,D 027195
999
SCREW ,D 027195
999
FITTING CONTROL VALVE
999
GASKET
999
VALVE
999
LOOM TIE HOSE TO HEATING PIPE
999
FITTING , Replaced By: A3449970772
999
SPACER , Replaced By: A3216420026
999
INTERMEDIATE PIPE , Replaced By: A3215001058
999
PIPE HEATING WATER RETURN LINE
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
WASHER PULL ROD TO SHIFT LEVER
999
SCREW BRACKET TO DISC WHEEL M 8X16,D 315831
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW PLUG SOCKET TO FRAME
999
SCREW , Replaced By: N304017010002
999
NUT LEVER TO SHIFTING SHAFT
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT OIL COOLER TO BRACKET,TOP
999
NUT L.H. THREAD
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
NUT BRAKE ANCHOR PLATE TO REAR AXLE M 12X1.5
999
NUT STRAP TO SUPPORT
999
NUT BRACKET TO SIDE MEMBER
999
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
999
SEAL RING PNEUMATIC VALVE
999
SEALING RING. SEAL RING ENGINE BREATHING
999
HOSE ENGINE BREATHING
999
HOSE FROM EXPANSION TANK TO RADIATOR
999
LOCK WASHER RAIL TO BATTERY SUPPORT
