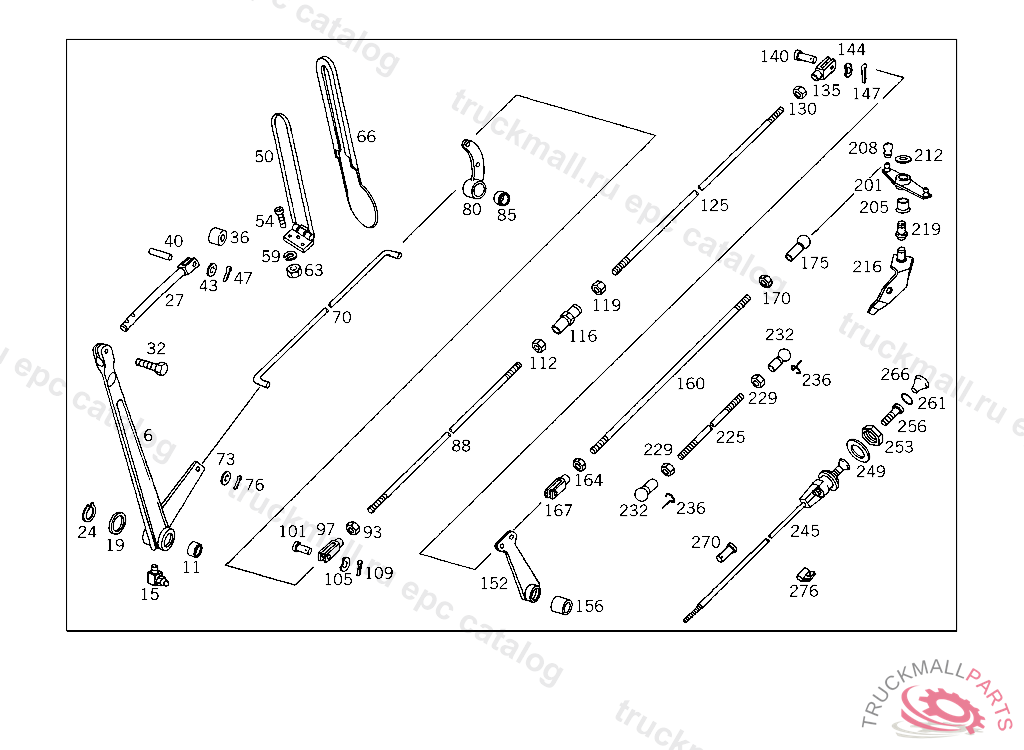

Поз.
Артикул
Описание
6
ACCELERATOR PEDAL ,793543 345.200,220 FROM CHASSIS 11008097
6
ACCELERATOR PEDAL , Replaced By: A3443000104
11
BUSHING MANUAL CONTROL,D 249954
15
GREASE NIPPLE
19
WASHER PEDAL BEARING
24
LOCK RING BELT TIGHTENER
27
CLAMP ACCELERATOR PEDAL, 345.200,220 FROM CHASSIS 11008097793543
32
SCREW PLUG SOCKET TO FRAME
36
ROLLER ,GB718836
40
PIN ROLLER TO LEVER
43
WASHER PLUG SOCKET TO BRACKET
47
COTTER PIN BATTERY COVER TO 388 540 70 14
50
54
SCREW CABLE TO ALTERNATOR
59
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
63
NUT
66
PAD ACCELERATOR PEDAL CONTROL,GB718836
70
70
73
WASHER PLUG SOCKET TO BRACKET
76
COTTER PIN BATTERY COVER TO 388 540 70 14
80
80
85
BUSHING MANUAL CONTROL,D 249954
88
PULL ROD FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT
93
NUT
97
YOKE ACCELERATOR CONTROL
101
PIN LEVER TO PEDAL, 314 UP TO CHASSIS 607836
105
WASHER PLUG SOCKET TO BRACKET
109
COTTER PIN BATTERY COVER TO 388 540 70 14
112
NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
116
NUT FRONT SHIFTING ROD
119
NUT
125
130
NUT
135
YOKE ACCELERATOR CONTROL
140
PIN LEVER TO PEDAL, 314 UP TO CHASSIS 607836
144
WASHER PLUG SOCKET TO BRACKET
147
COTTER PIN BATTERY COVER TO 388 540 70 14
152
152
156
BUSHING MANUAL CONTROL,D 249954
160
164
NUT
167
YOKE ACCELERATOR CONTROL
170
NUT
175
BALL SOCKET AT CONTROL LEVER
201
LEVER LEFT CONTROL LEVER, 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
205
BUSHING MANUAL CONTROL,D 249954
208
BALL PIVOT , Replaced By: A3129910120
208
BALL PIVOT LEVER
212
WASHER
216
BEARING BRACKET ,C 079749
219
225
PULL ROD FROM CONTROL LEVER TO ENGINE 6X130X30/30
229
NUT
232
BALL SOCKET AT CONTROL LEVER
236
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
245
245
249
253
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
256
GUIDE , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
256
GUIDE , Replaced By: A3523020308
261
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
266
KNOB , Replaced By: A3523020201
270
GROMMET , Replaced By: A3453027091
270
GROMMET , Replaced By: A3453027091
276
CLAMP , Replaced By: N916016006200
276
CLAMP LINE TO SIDE MEMBER
999
999
999
BUSHING , Replaced By: A3443020150
999
SPRING , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
999
BALL PIVOT LEVER
999
999
BUSHING , USED WITH AIR BRAKE
999
LOCK WASHER , Replaced By: N912004010102
999
SPRING WASHER CAB FLOOR
999
LOCK RING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
999
NUT LEVER TO SHIFTING SHAFT
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT SHIFT LEVER
999
NUT , Replaced By: N308675012000
999
NUT , Replaced By: N000936012005
999
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
999
GREASE NIPPLE
999
SNAP RING SPRING-LOADED PUSH ROD
999
LOCK WASHER T-FITTING TO BRACKET
999
PIN OPERATING ROD TO BRACKET
