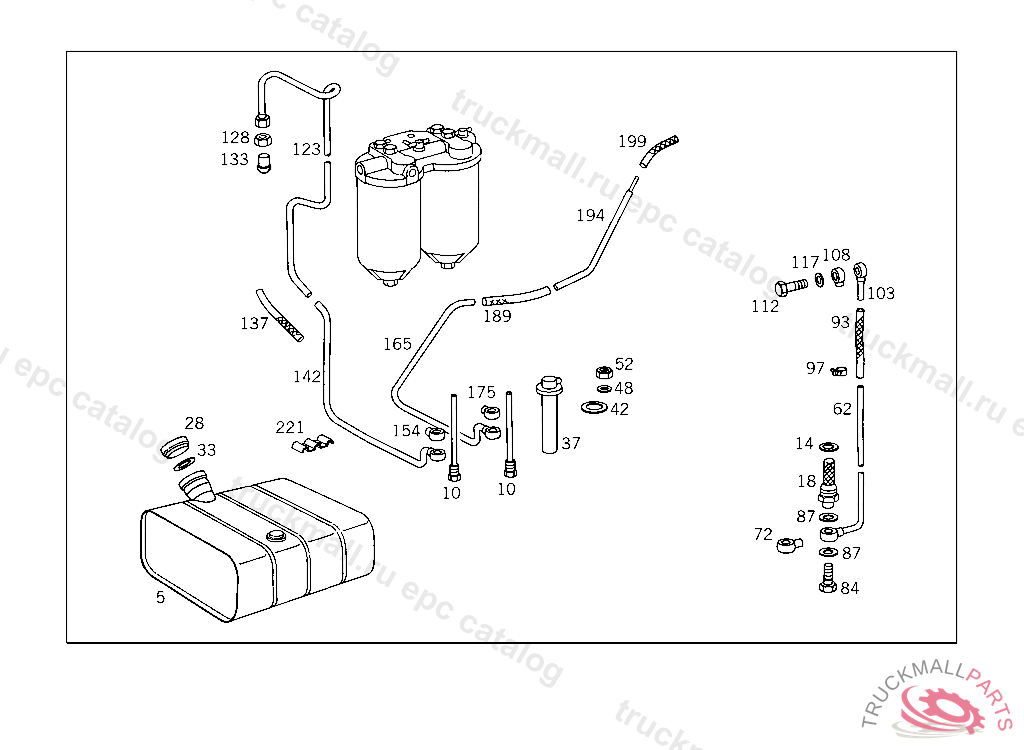

Поз.
Артикул
Описание
10
RISING PIPE
14
SEAL RING
18
FITTING VENT VALVE TO FUEL TANK
18
FUEL STRAINER , Replaced By: A3124711620
28
FILLER CAP
33
SEAL RING
37
SENDER UNIT
37
SENDER UNIT , Replaced By: A3505427017
37
SENDER UNIT , Replaced By: A3455427917
37
SENDER UNIT , Replaced By: A3455427617
42
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
48
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
52
NUT TACHOGRAPH TO BRACKET
72
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
72
BANJO UNION FUEL LINE TO FUEL TANK
84
HOLLOW SCREW
87
SEALING RING. SEAL RING ENGINE BREATHING
93
HOSE
97
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
97
CLAMP , Replaced By: N916017011001
97
LOOM TIE , Replaced By: N916017011000
103
LINE FROM HOSE TO TANK, 364.101 UP TO CHASSIS 37067,364.111 UP TO CHASSIS 38387,364.152, 162, 173 UP TO CHASSIS 38359
103
LINE , Replaced By: A3444707066
108
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
108
BANJO UNION FUEL LINE TO FUEL TANK
112
HOLLOW SCREW
117
SEALING RING. SEAL RING ENGINE BREATHING
123
LINE FROM FUEL FILTER TO RUBBER HOSE
123
LINE , Replaced By: A3444703364
128
NUT. UNION NUT RETURN
133
SEAL CONE , 344.058 UP TO SHASSIS 659793
133
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
137
HOSE
154
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
154
BANJO UNION FUEL LINE TO FUEL TANK
175
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
175
BANJO UNION FUEL LINE TO FUEL TANK
189
HOSE
194
LINE
194
LINE , Replaced By: A3214700965
199
HOSE , ORDER BY THE METER
199
HOSE , Replaced By: A3769978182
199
HOSE , Replaced By: A3440780081
221
CLAMP LINE MOUNTING
999
FUEL TANK , Replaced By: A3444708401
999
CLAMP LINE MOUNTING
999
LINE , Replaced By: A3444703464
999
LINE , Replaced By: A3444703164
999
LINE , Replaced By: A3444703664
999
CLAMP
999
BRACKET LINE MOUNTING
999
LINE FROM FUEL TANK TO RUBBER HOSE
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
999
FUEL TANK LESS SENDER UNIT 175 L
999
999
LOCK WASHER PLUG SOCKET
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
SCREW COMPRESSED AIR LINE MOUNTING
999
SCREW CABLE TO ALTERNATOR
999
CLAMP LINE MOUNTING
