Поз.
Артикул
Описание
4

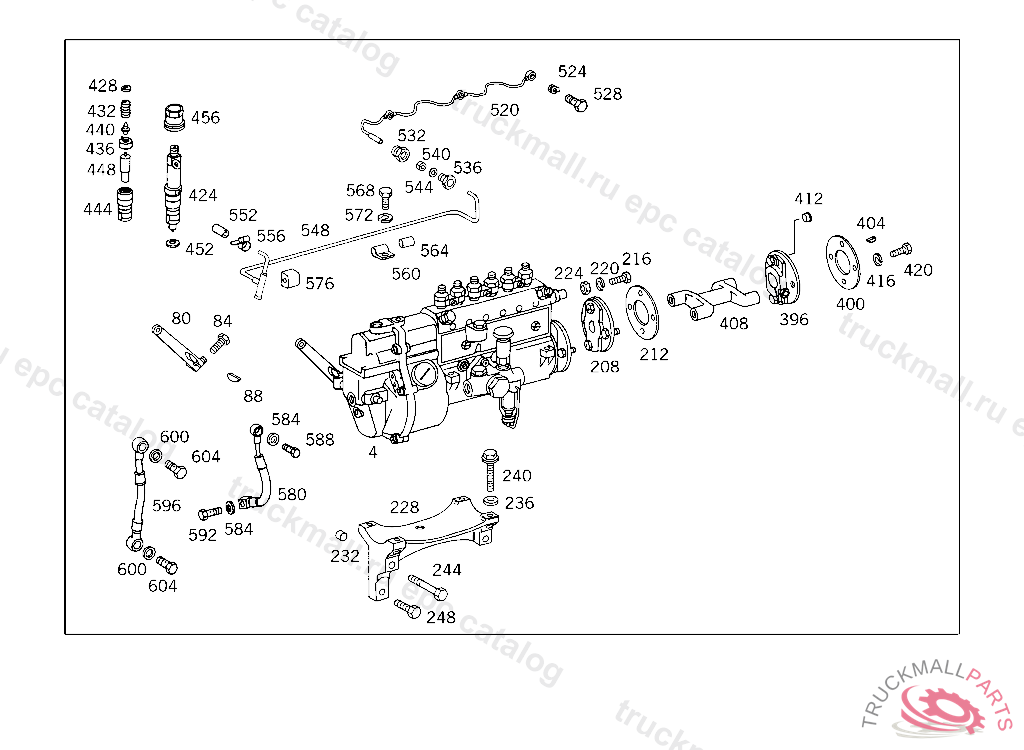

INJECTION PUMP , 914,915 FROM ENGINE 003799
80
LEVER AT INJECTION PUMP, WITH DIESEL ENGINE
80
LEVER , Replaced By: A0000744927
80
LEVER , Replaced By: A3140740527
84
SCREW , Replaced By: N304017006019
84
SCREW , WITH DIESEL ENGINE
88
WOODRUFF KEY INJECTION PUMP
208
COUPLINGTO 007 074 03 02
212
DISC
216
SCREW , Replaced By: N304017008021
216
SCREW PIPE CLAMP
220
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
224
NUT
228
BEARING BRACKET
232
FITTED SLEEVE
236
SPHERICAL WASHER RAIL TO SCREW
240
SCREWM 8X70
244
SCREW SUPPORT TO CYLINDER CRANKCASE M 12X80
248
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
248
SCREW , Replaced By: N304017012012
396
COUPLING INJECTION PUMP DRIVE
400
DISC
404
WOODRUFF KEY
408
FOLLOWER
412
BUSHING FOLLOWER TO COUPLING
416
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
420
SCREW BRACKET TO APPARATUS SUPPORT
420
SCREW , Replaced By: A0069909301
424
NOZZLE HOLDER
428
SHIM, 1.05 MM THICK. SPACER WASHER1.04 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
428
SHIM, 1.55 MM THICK. SPACER WASHER1.55 MM
428
SHIM, 1.95 MM THICK. SPACER WASHER1.95 MM
428
SPACER WASHER1.70 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
428
SPACER WASHER1.84 MM
428
SPACER WASHER1.20 MM
428
SHIM1.34 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
428
SHIM, 1.25 MM THICK. SPACER WASHER1.24 MM
428
SHIM, 1.75 MM THICK. SPACER WASHER1.75 MM
428
SPACER WASHER1.80 MM
428
SHIM, 1.0 MM THICK. SPACER WASHER1.0 MM
428
SHIM, 1.60 MM THICK. SPACER WASHER1.6 MM
428
SHIM, 1.45 MM THICK. SPACER WASHER1.45 MM
428
SHIM, 1.10 MM THICK. SPACER WASHER1.1 MM
428
SHIM, 1.65 MM THICK. SPACER WASHER1.65 MM
428
SPACER WASHER1.40 MM
428
SPACER WASHER1.30 MM
428
SHIM, 1.90 MM THICK. SPACER WASHER1.9 MM
428
SHIM, 1.15 MM THICK. SPACER WASHER1.15 MM
428
SHIM, 1.20 MM THICK. SPACER WASHER1.2 MM
428
SHIM, 1.30 MM THICK. SPACER WASHER1.3 MM
428
SHIM, 1.35 MM THICK. SPACER WASHER1.34 MM, Replaced By: A0030177852
428
SHIM, 1.40 MM THICK. SPACER WASHER , Replaced By: A0030178452
428
SHIM, 1.50 MM THICK. SPACER WASHER1.50 MM, Replaced By: A0030179452
428
SHIM, 1.70 MM THICK. SPACER WASHER , Replaced By: A0040171452
428
SHIM, 1.80 MM THICK. SPACER WASHER1.80 MM, Replaced By: A0040172452
428
SHIM, 1.85 MM THICK. SPACER WASHER , Replaced By: A0040172852
428
COMPENSATING DISC1.14 MM
428
SPACER WASHER1.50 MM,TO 002 017 03 21,002 017 35 21, TO NOZZLE HOLDER OF MAKE: BOSCH
432
PRESSURE SPRING
436
SPACER WASHER
436
SPACER WASHER , Replaced By: A0020172252
440
PIN , Replaced By: A0000171574
440
PIN
444
UNION NUT , Replaced By: A0000174616
444
UNION NUT AS REQUIRED M 24X1.5
448
NOZZLE
452
SEAL RING NOZZLE HOLDER TO CYLINDER HEAD 1.5 MM
452
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3880170160
456
SCREW
520
LINE FUEL LEAK
524
SEAL FUEL LEAK LINE
528
HOLLOW SCREW LEAK LINE TO NOZZLE HOLDER
532
SCREW PLUG
536
SCREW PLUG
540
SEAL RING DELIVERY LINES
544
FITTED WASHER
544
WASHER , Replaced By: N000988008024
548
LINE ,011149 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3600701235, +002A3604760026
552
HOSE ,015231
556
CLAMP FUEL LEAK LINE,FUEL FILTER
560
CLAMP LEAK LINE TO CYLINDER HEAD
564
RUBBER SLEEVE LEAK LINE TO CYLINDER HEAD
568
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
572
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
580
OIL LINE FROM OIL FILTER TO INJECTION PUMP
584
SEAL RING , Replaced By: N007603010110
584
SEAL RING PNEUMATIC VALVE
588
HOLLOW SCREW LINE CONNECTION
592
HOLLOW SCREW LINE CONNECTION
592
HOLLOW SCREW OIL DELIVERY LINE TO OIL FILTER
596
OIL LINE
600
SEAL RING FUEL LINE TO FEED PUMP
604
HOLLOW SCREW FUEL LINE TO FEED PUMP
604
HOLLOW SCREW
999
CLAMPING JAW. CLAMPING PIECE , Replaced By: A0000781335, +001A0000781435
999
CLAMPING JAW WITH THREAD. CLAMPING PIECE , Replaced By: A0000781435, +001A0000781335
999
FITTING , Replaced By: A0000781069, +001A0000780129
999
SENDER UNIT TACHOMETER, TO 000 542 48 16,345 542 73 16,345 542 74 16
999
BUSHING
999
DRIVE SHAFT
999
NUT
999
SEGMENT
