Поз.
Артикул
Описание

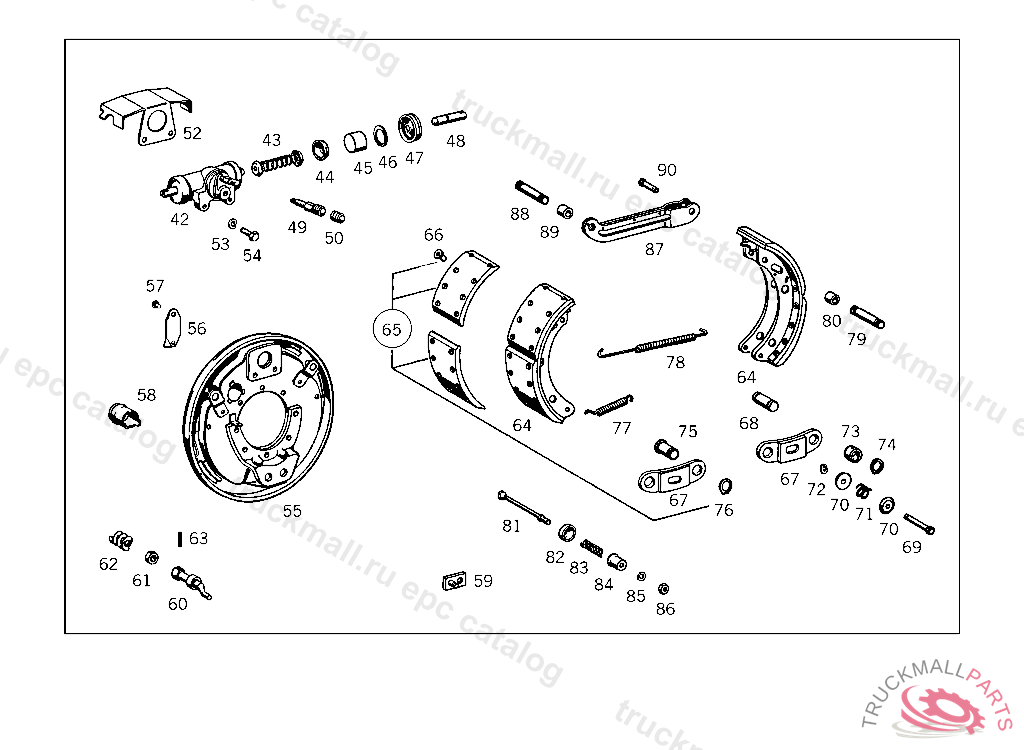

42
WHEEL BRAKE CYLINDER , Replaced By: A3444207018
43
SPRINGTO OO1 420 85 18
44
CUP
45
PISTON TO 98 344 420 00 18,001 420 85 18,344 420 70 18
46
LOCK RINGTO 345 431 71 05
47
PROTECTIVE CAP , Replaced By: A3454237087
48
THRUST PIN
49
BLEEDER VALVE
50
PROTECTIVE CAP , Replaced By: A0004217187
50
PROTECTIVE CAP ,5 962906
50
PROTECTIVE CAP , Replaced By: A0004217187
50
PROTECTIVE CAP , Replaced By: A0004210887
52
PROTECTIVE PLATE WHEEL CYLINDER TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
53
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
54
SCREW END PIECE TO EXHAUST PIPE M 10X25
55
BRAKE ANCHOR PLATE LEFT
56
INSPECTION HOLE COVER
57
RIVET
58
PIPE SOCKET
59
STUD , 015800
60
ADJUSTER , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
61
NUT BRACKET TO SIDE MEMBER,K 035196
61
NUT , Replaced By: N308673014001
62
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
63
GROOVED PIN
64
BRAKE LINING ASBESTOS-FREE 10.30 MM, 013362
64
BRAKE LINING10.30 MM, 013362
64
BRAKE SHOE LESS LINING, FROM CHASSIS 003294 ALSO INSTALLED ON,SEE FOOTNOTE 45
64
BRAKE SHOE LESS LINING
65
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 12.30 MM,8X 322 423 08 10)
65
BRAKE LINING (PARTS KIT) (BRAKE LINING 12.30 MM,8X 322 423 02 10)
65
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 11.30 MM,8X 322 423 07 10)
65
BRAKE LINING (PARTS KIT) (BRAKE LINING 11.30 MM,8X 322 423 01 10)
65
BRAKE LINING (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) 10.30 MM,8X 322 423 06 10)
65
BRAKE LINING (PARTS KIT) (BRAKE LINING 10.30 MM,8X 322 423 00 10)
66
RIVET
66
RIVET
67
THRUST SHACKLE LEFT, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
67
REPAIR KIT , Replaced By: A3404200027, +001A3404200127
67
REPAIR KIT , Replaced By: A3384200389
67
THRUST SHACKLE LEFT, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
67
BRACKET , 030543, Replaced By: A3404200027, +008A3384200282, +004A3384200389
68
PIVOT PIN BRAKE SHOE TO THRUST SHACKLE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
68
PIVOT PIN , 006466-037393, Replaced By: A3124231918, +001N900055022301
68
PIVOT PIN , 006465, Replaced By: A3124231718, +002N900055022300
69
PIN
70
SPACER WASHER , Replaced By: A3444217052
71
SPRING , Replaced By: A3385860542
72
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
73
SPACER TUBE , 006465
74
LOCK RING , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
74
LOCK RING , 001926 600301
75
PIVOT PIN THRUST SHACKLE TO WHEEL CYLINDER BRACKET, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
75
PIVOT PIN , 037393, Replaced By: A3124231818, +001N900055022301
76
LOCK RING , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
76
LOCK RING , 001926 600301
77
SPRING SHORT
78
SPRING
79
PIVOT PIN BRAKE LEVER
80
SPACER TUBE AT BRAKE VALVE, NOT USED
81
PIN BRAKE SHOE MOUNTING BOLT
81
REPAIR KIT , Replaced By: A3584200082
81
PIN
82
FILLER
83
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
83
SPRING
84
FILLER
85
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
NUT
87
THRUST SHACKLE , 000238
88
PIVOT PIN BRAKE LEVER
89
SPACER TUBE AT BRAKE VALVE, NOT USED
90
PIN BRAKE LEVER, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SCREW PLUG , Replaced By: A0004315433
999
SCREWED NIPPLE. FITTING , Replaced By: A0084230084
999
SCREW PLUG CONNECTION "1","2",4 478330
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE FRONT AXLE, FROM IDENT NO.: 001078 ALSO INSTALLED ON 000486,000532,000698,000721,000732,000737,000764,000794,000795,000798,000816,000823,000827,000828, 000833,000840,000847,000853,000865,000870,000884,000891,000901,000909,000944,000984,001032,001078, 001155,001156,001219,001363,001385,001427.
999
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
999
PIN
999
VALVE TAPPETTO 000 429 30 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVETO 000 429 30 44
999
VALVE CONEBOSCH
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
VALVETO 000 429 00 47
999
SEAL RING IN CASE
999
SEAL RING
999
COVERTO 000 429 48 30
999
AIR CLEANER ,4 390315
999
COVERWABCO
999
SHUT-OFF COCK
999
BRAKE LINE COUPLING WITH SHUT-OFF VALVE
999
SPRINGTO 000 429 00 47
999
SPRINGTO 000 429 00 47
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
AIR CLEANER
999
SEAL RINGTO 000 429 16 31,4 940458
999
VALVE
999
DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
VALVE
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
STRAINERTO 002 430 31 01
999
YOKE , Replaced By: A0004310467
999
CONNECTOR , FROM IDENT NO. 001338 EXCEPT FOR 0013438 0000014 2827078 000001-8 001702
999
CLAMP FLUID RESERVOIR
999
YOKE BOTTOM
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
TEST CONNECTION
999
PRESSURE REGULATOR
999
TEST CONNECTION , Replaced By: A0004311231
999
VALVE DISC
999
PROTECTIVE CAP BRAKE BOOSTER
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
ROD , Replaced By: N900331008281, +001A0004310867, +001N000934008035
999
ANTI-FREEZE DEVICE
999
VALVE. PRESSURE REGULATOR ,FB486597
999
FILLER CAP , Replaced By: A0004315533
999
CUPBOSCH
999
FILLER CAP , Replaced By: A0004315133
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
STRAINER
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAP , Replaced By: A0009979486
999
CUP , 010506, Replaced By: A0059974746
999
FILLER CAP , Replaced By: A0004315433
999
FILLER CAP BUTTRESS THREAD
999
FILLER CAPTO 000 431 87 02
999
PROTECTIVE CAP
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
RESERVOIR
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0004320807, +001N900397000201
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
SPRING CAPSULETO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KITTEVES
999
REPAIR KIT
999
REPAIR KIT
999
REPAIR KITTO 000 429 14 31,5 116581
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
SPRINGTO 000 429 16 30
999
CLAMP BRACKET TO AIR COMPRESSOR
999
PIPE CONNECTION NUT. FITTING ,613554
999
GROMMET
999
GROMMET
999
GROMMET CAB ROOF
999
HANDLETO 000 429 16 31,4 940458
999
SEAL RING
999
PLUG
999
VALVE
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITWABCO
999
REPAIR KIT , FROM 626
999
RESERVOIR COMPRESSED AIR 60 L.
999
SEAL RING42X21.5 MM
999
SEAL RING
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGBOSCH
999
SEAL RINGTO 000 429 00 47
999
SEAL RINGTO 000 429 16 31,4 940458
999
WASHER ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
ADJUSTER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LEVER WITH SHAFT, 005081
999
SPACER WASHER
999
SPACER WASHER2.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
HANDLE
999
BRACKET , 003794
999
BRACKET FUEL LINE
999
BRACKET , Replaced By: A3124292440
999
BRACKET FUEL LINES
999
BRACKET CONNECTOR, UP TO CHASSIS 734559
999
BRACKET HEATING WATER LINE
999
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
999
CLAMP BREATHER LINE TO REAR AXLE
999
HOSE
999
YOKE INTERMEDIATE SHAFT
999
REPAIR KIT
