Поз.
Артикул
Описание

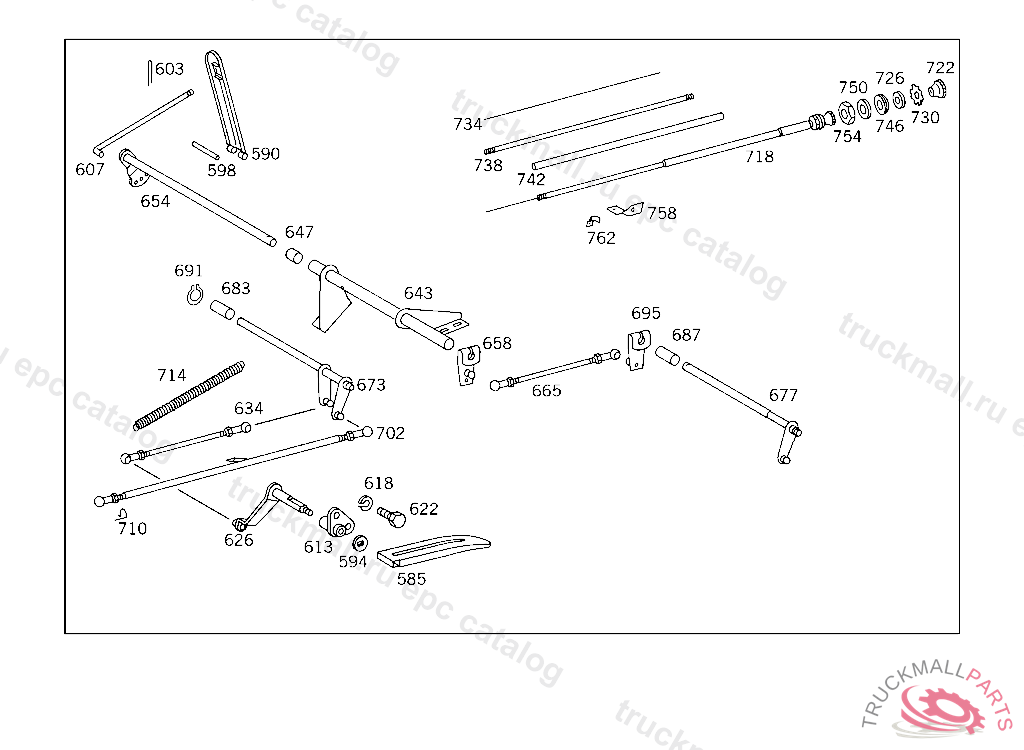

585
PLATE ACCELERATOR PEDAL
590
PLATE
594
GUARD PLATE ACCELERATOR PEDAL BEARING
598
PIN PEDAL TO CAB FLOOR
603
SAFETY PIN END PIECE TO CONTROL LEVER
607
ROD CONTROL
613
BEARING TUBE ACCELERATOR PEDAL CONTROL,GB718835
613
BEARING TUBE ACCELERATOR PEDAL CONTROL
618
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
622
SCREW CLAMP TO BRACKET AND TO PIPE
626
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
634
PULL ROD
643
BEARING BRACKET CONTROL SHAFT, 005102
647
BUSHING
654
SHAFT
658
LEVER (CONTROL LEVER), WITH GASOLINE ENGINE
665
ROD , Replaced By: A3604301992
665
ROD , Replaced By: A3604302092
673
SHAFT CONTROL, WITH GASOLINE ENGINE
677
SHAFT CONTROL, WITH GASOLINE ENGINE
683
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
687
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
687
SPACER TUBE , Replaced By: A3210720053
691
LOCK RINGTO 000 553 37 01,000 553 39 01,
695
LEVER CONTROL SHAFT, WITH GASOLINE ENGINE
702
ROD CONTROL SHAFT, WITH GASOLINE ENGINE
710
SECURING CLIP , WITH GASOLINE ENGINE
714
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
718
WIRE CABLE (CHOKE CABLE)
722
KNOPF. KNOB CHOKE CABLE TO INSTRUMENT PANEL
726
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
730
SEAL RING CHOKE CABLE TO INSTRUMENT PANEL
734
WIRE960 MM, WITH GASOLINE ENGINE
738
WIRE SPIRAL860 MM, WITH GASOLINE ENGINE ORDER BY THE METER
742
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
746
GROMMET FOR PASSAGE OF LINE
746
GROMMET , Replaced By: A0009978581
746
GROMMET FOR PASSAGE OF LINE
750
BEILAGSCHEIBE. WASHER , USED WITH OM 326 ENGINE UNTIL THE END OF SERIES PRODUCTION,USED WITH OM 346 ENGINE UP TO ENGINE 016447
754
NUT
758
BRACKET WIRE CABLE TO ENGINE
762
CLAMP WIRE CABLE TO ENGINE
999
BALL SOCKET , Replaced By: A0009912422
999
GUMMITULLE. GROMMET , Replaced By: A0009978581
999
ROD
999
PLATE , Replaced By: A3223000302
999
BRACKET CLUTCH PEDAL RELEASE SPRING, WITH DIESEL ENGINE WITH OM 312, OR OM 321, ENGINE
999
ROD , Replaced By: N900331006024
999
SHAFT CONTROL, WITH DIESEL ENGINE ON VEHICLES HAVING NO EXHAUST BRAKE
999
BALL PIVOT LEVER
999
SHAFT
999
SPACER TUBE , Replaced By: A3210720053
999
LEVER , OM 312 UP TO ENGINE 200447,OM 321 UP TO ENGINE 083802, Replaced By: A3221400032, +001A3210720053
999
BEARING TUBE ACCELERATOR PEDAL CONTROL, L UP TO IDENT NO. 005243
999
ROD CONTROL, ON SPECIAL REQUEST
999
PEDAL PLATE , Replaced By: A3523000802
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE ON VEHICLES HAVING NO EXHAUST BRAKE UP TO CHASSIS 005569
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE 005569
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE 005570-020115
999
BEARING BRACKET CONTROL SHAFT, 005101
999
SHIM CONTROL SHAFT BEARING TO FIRE WALL
999
BRACKET
999
BRACKET OIL LINE TO CRANKCASE
999
SCREW , 032323
999
SCREW
999
LENS HEAD. SCREW MOUNTING CLAMP TO BRACKET, WITH GASOLINE ENGINE
999
COTTER PIN PULL ROD TO SHIFT LEVER
999
COTTER PIN BRAKE SHOE TO BRAKE ANCHOR,4 138316 FROM IDENT NO. 4 138317 SEE UNIT MICROFICHE,MODEL 730.702
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER , 000855
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER , 034 UP TO CHASSIS A 004589
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
WASHER BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N000933006194
999
SCREW CONNECTOR
999
SCREW , Replaced By: N304017006019
999
SCREW SHIFTING DOME TO 000 268 37 01
999
NUT BALL PIVOT TO LEVER
999
SCREW HANDLE TO LID
999
BALL PIVOT
999
BALL PIVOT
999
BALL PIVOT , Replaced By: A3129910120
999
BALL SOCKET ROD TO LEVER
999
SNAP RING. BALL SOCKET
999
BALL SOCKET CONTROL LEVER, WITH DIESEL ENGINE
999
BALL SOCKET
999
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
999
SNAP RING PULL ROD, ON SPECIAL REQUEST
999
SNAP RING SPRING-LOADED PUSH ROD
999
SNAP RING , WITH GASOLINE ENGINE
999
SECURING CLIP. CIRCLIP
999
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
SCREW , WITH DIESEL ENGINE
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT
999
PULL ROD CONTROL,FRONT, NOT USED
999
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
