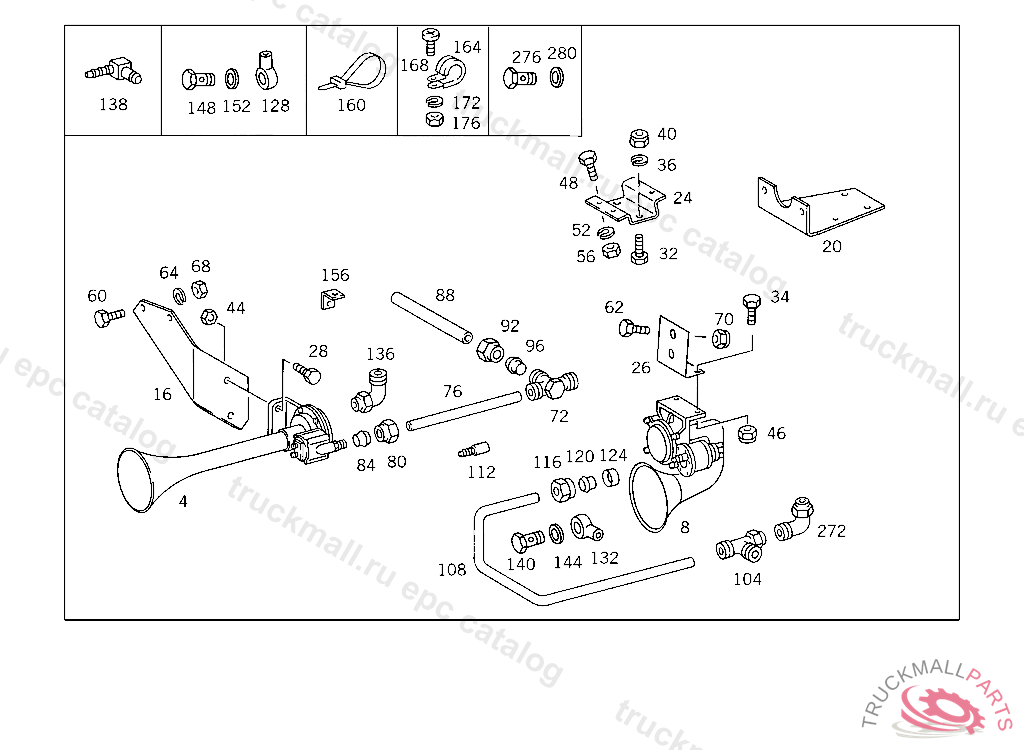

Поз.
Артикул
Описание
4
AIR HORN24 V,4 697169
4
AIR HORN24 V,4 697169
4
AIR HORN , Replaced By: A0005420821, +001A0004290301, +002N003861008004, +002N003870008102
8
AIR HORN
8
AIR HORN24V 350HZ KLAXON,4 697170
8
AIR HORN
8
AIR HORN24V 360 HZ HELLA,4 697170
16
BRACKET AIR HORN
20
BRACKET AIR HORN,4 316114
24
BRACKET AIR HORN,4 697169
26
BRACKET AIR HORN
28
SCREW BRACKET TO SIDE MEMBER
28
SCREW , Replaced By: N304017010002
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
34
SCREW BRACKET TO CROSS CONNECTION STRUT
34
SCREW , Replaced By: N304017008034
36
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
40
NUT STRAP TO BRACKET
40
NUT , Replaced By: N910113010000
44
NUT BRACKET TO SUPPORT AND TO END PIECE
46
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
46
NUT , Replaced By: N913004008001
48
SCREW COVER PLATE TO BRACKET
52
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
NUT BALL PIVOT TO LEVER
60
SCREW BRACKET TO CROSS CONNECTION STRUT
60
SCREW , Replaced By: N304017008034
60
SCREW PIPE CLAMP
60
SCREW , Replaced By: N304017008021
62
SCREW END PIECE TO EXHAUST PIPE M 12X30
62
SCREW , Replaced By: N304017012020
64
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
64
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
68
NUT , Replaced By: N913004008001
68
NUT
70
NUT END PIECE TO EXHAUST PIPE
72
T-FITTING AIR HORN
76
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
80
UNION NUT LINE CONNECTION
84
GLAND LINE CONNECTION
88
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
92
NUT. UNION NUT LINE CONNECTION
96
CUTTING RING. GLAND LINE CONNECTION
104
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
108
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
112
FITTING , Replaced By: N915062006000
112
FITTING
116
UNION NUT LINE CONNECTION
120
GLAND LINE CONNECTION
124
SLEEVE LINE CONNECTION
128
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
132
BANJO UNION HEATING CONNECTION,K 169122
136
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
136
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
138
ELBOW FITTING , Replaced By: A0049905371
140
HOLLOW SCREW CONNECTION: "12.2",4 697169
144
SEAL RING FUEL LINE TO FEED PUMP
148
HOLLOW SCREW HEATING CONNECTION
152
SEAL RING LINE CONNECTION
156
ANGLE LINE MOUNTING
160
LOOM TIE LINE MOUNTING 280 MM
160
LOOM TIE LINE MOUNTING
164
CLAMP ,K 147121, Replaced By: N000000000319
164
CLAMP , Replaced By: N916016008200
168
SCREW CAP TO BRACKET
172
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
176
NUT BALL PIVOT TO LEVER
272
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
276
HOLLOW SCREW HEATING CONNECTION
280
SEAL RING LINE CONNECTION
999
BRACKET AIR HORN
999
ELECTRIC CABLE FROM HORN TO SWITCH
999
ELECTRIC CABLE FROM HORN TO SWITCH, 649473
999
ELECTRIC CABLE FROM SWITCH TO PLUG CONNECTION
999
BRACKET AIR HORN
