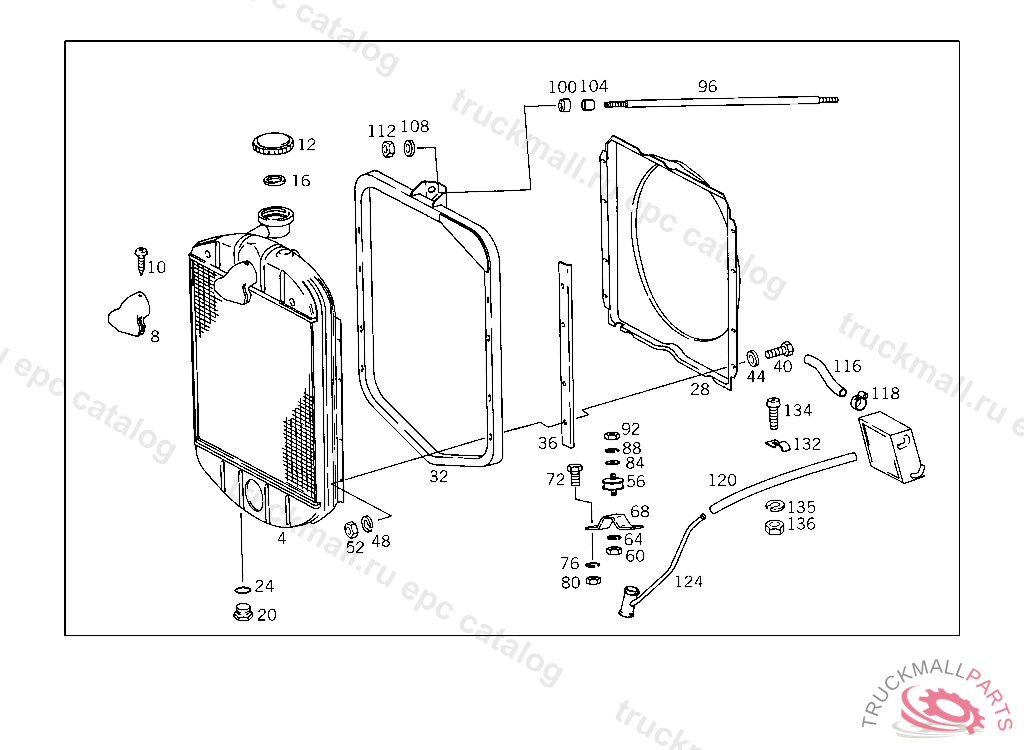

Поз.
Артикул
Описание
4
8
PIPE ELBOW
10
SHEET METAL SCREWB3.5X6.5
12
FILLER CAP , 012723, Replaced By: A3225000106
16
RUBBER SEAL RING , 012723
20
SCREW PLUG
24
SEAL RING
28
FAN SHROUD
32
SUPPORT , 032-041 UP TO CHASSIS 248005, 132-141 UP TO CHASSIS 249671
36
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
40
SCREW COMPRESSED AIR ELBOW
44
WASHER , Replaced By: N000125008443
48
LOCK WASHER
52
NUT LEVER TO SHIFTING SHAFT
56
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
60
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
64
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
68
CLAMP. ANGLE
72
SCREW OIL TANK TO BRACKET
76
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
80
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
84
WASHER , Replaced By: N000125010532
88
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
92
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
96
RADIATOR STRUT , UP TO CAB 1500000
100
RUBBER RING SHOCK ABSORBER MOUNTING
104
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
108
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
112
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
116
118
LOOM TIE , Replaced By: N916017016000
118
CLAMP HOSE TO FITTING AND TO OIL TANK
118
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
120
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
120
HOSE , Replaced By: N900271015037
124
LINE RETURN LINE, 024235
132
CLAMP , Replaced By: A1109950401
134
SCREW FUEL LINE TO BRACKET
135
LOCK WASHER CLAMP TO BRACKET
136
NUT BALL PIVOT TO LEVER
999
PIPE ELBOW
999
RADIATOR , Replaced By: A3415010001
999
HOSE
999
LOOM TIE , Replaced By: H990009970290
999
999
FAN SHROUD , EXCEPT FOR MODEL 033 UP TO CHASSIS 020757 USED WITH OM 312 OR OM 321 ENGINE,ON SPECIAL REQUEST ON TROPICAL VEHICLES HAVING OM 352 ENGINE,CONTINUED,SEE FOOTNOTE 026
999
RUBBER MOUNTING , Replaced By: A3605040012
999
999
HOSE , Replaced By: N900271015037
999
HOSE , Replaced By: N900271015037
999
RADIATOR
999
RADIATOR
999
RADIATOR
999
HOSE FROM UPPER LINE TO HEATING SHUT-OFF COCK 15X24X380, ORDER BY THE METER
999
LOOM TIE , Replaced By: N916017016000
999
999
HOSE , Replaced By: A3515007075
999
CLAMP HOSE TO FITTING AND TO OIL TANK
