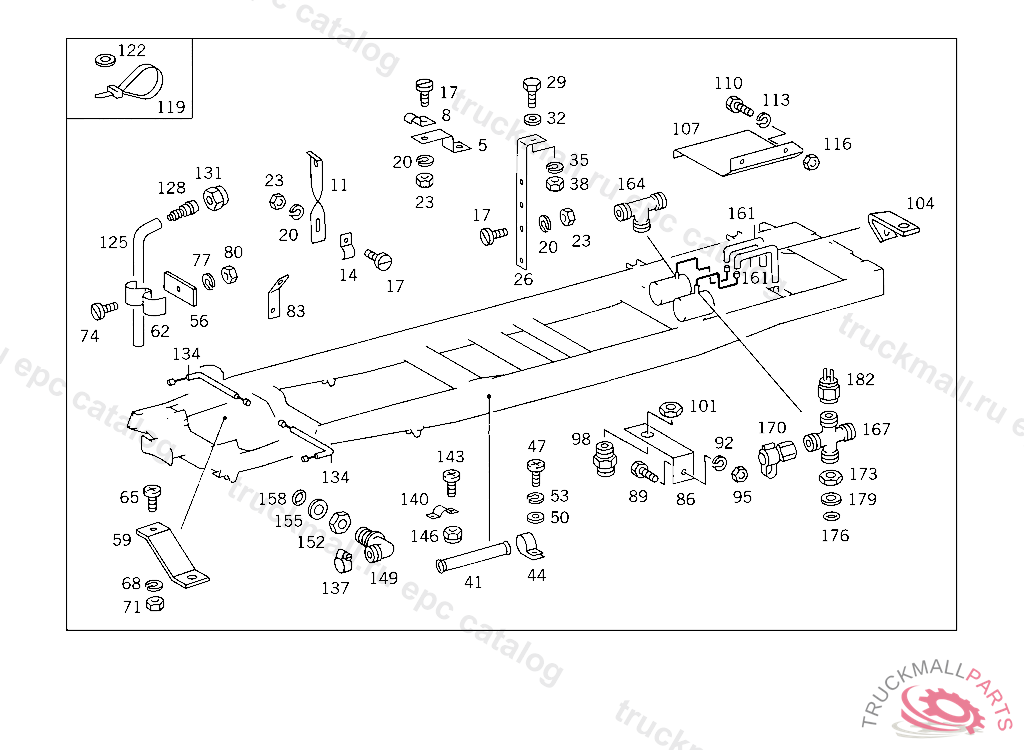

Поз.
Артикул
Описание
5
BRACKET COMPRESSED AIR LINE MOUNTING
8
CLAMP , Replaced By: A3049950120
8
CLAMP
11
BRACKET ,A 069205
14
CLAMP , Replaced By: A1109950401
17
SCREW FUEL LINE TO BRACKET
20
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
23
NUT CLAMP TO BRACKET
26
BRACKET AT CROSS MEMBER,A 069205
29
SCREW FUEL LINE TO BRACKET
32
WASHER , Replaced By: N009021006208
35
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
38
NUT CLAMP TO BRACKET
41
PROTECTIVE TUBE COMPRESSED AIR LINE TO BATTERY CASE
44
CLAMP COMPRESSED AIR LINE TO BATTERY CASE
47
TAPPING SCREW ,A 069205
50
WASHER6,4
53
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
PLATE
59
BRACKET LINE MOUNTING, INAPPLICABLE TO SUPERCHARGING SYSTEM398035
62
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
65
SCREW FUEL STRAINER SCREEN
68
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
71
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
74
SCREW BRAKE LINE TO SIDE AND CROSS MEMBERS M 5X10
77
LOCK WASHER LINE MOUNTING
80
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
83
BRACKET RIGHT,DIAPHRAGM CYLINDER
83
BRACKET LEFT,DIAPHRAGM CYLINDER
86
BRACKET BRAKE HOSE BRACKET,A 069205
89
SCREW CLAMP TO BRACKET AND TO PIPE
92
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
NUT TAIL LAMP TO BRACKET
98
FITTING , Replaced By: A0009907871
101
NUT BRACKET TO SIDE MEMBER
104
BRACKET RIGHT BRAKE CYLINDER
104
BRACKET LEFT BRAKE CYLINDER
107
PROTECTIVE PLATE
110
SCREW BRACKET TO BUMPER,LEFT M 10X25
113
LOCK WASHER , Replaced By: N912004010102
116
NUT BRACKET TO FRAME
119
LOOM TIE , Replaced By: A0019978390
119
LOOM TIE LINE MOUNTING
119
LOOM TIE , Replaced By: A0019978490
122
WASHER BRACKET TO LEFT SIDE MEMBER
125
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
128
FITTING , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
128
FITTING
131
UNION NUT
131
UNION NUT , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
134
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
137
CLAMP LINE MOUNTING
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
CLAMP 3/2-WAY SOLENOID VALVE
143
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
146
NUT , Replaced By: N913004006001
149
ELBOW FITTING , Replaced By: A3849907071
149
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS,A 069205
149
FITTING ,4 667210
152
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
155
THRUST RING LOCKING VALVE
158
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
161
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
164
T-FITTING RIGHT TRISTOP CYLINDER,CONNECTION: "12",A 069205
167
FITTING RIGHT SPRING-LOAD ACCUMULATOR
170
TEST CONNECTION
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
173
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
176
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
179
THRUST RING LOCKING VALVE
182
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
182
SWITCH SUPPLY PRESSURE,5 966147
999
BRACKET , Replaced By: A3414290340
