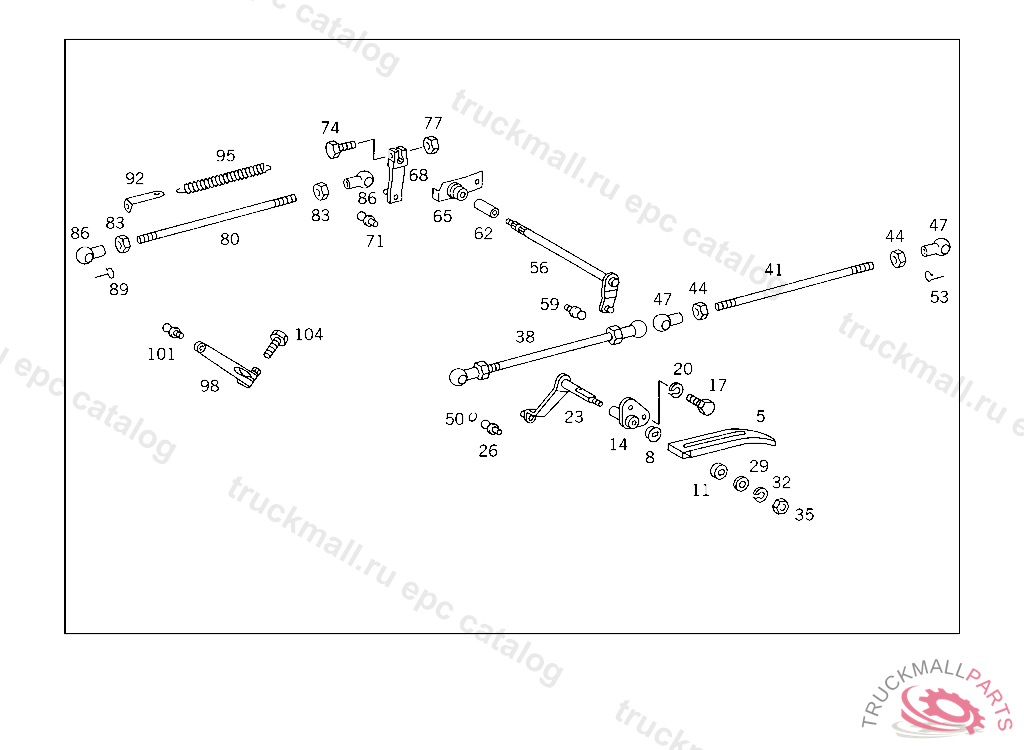

Поз.
Артикул
Описание
5
PLATE ACCELERATOR PEDAL
8
GUARD PLATE ACCELERATOR PEDAL BEARING
11
COVERING ACCELERATOR PEDAL BEARING
14
BEARING TUBE ACCELERATOR PEDAL CONTROL
14
BEARING TUBE ACCELERATOR PEDAL CONTROL,GB718835
17
SCREW IGNITION COIL TO BRACKET
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
23
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
26
BALL PIVOT , Replaced By: A3129910120
29
WASHER CLUTCH LINING WEAR INDICATOR
32
LOCK WASHER
35
NUT LEVER TO SHIFTING SHAFT
38
PULL ROD
41
PULL ROD
44
NUT BALL PIVOT TO LEVER
47
BALL SOCKET AT CONTROL LEVER
50
SNAP RING SPRING-LOADED PUSH ROD
53
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
56
SHAFT
59
BALL PIVOT , Replaced By: A3129910120
62
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
62
SPACER TUBE , Replaced By: A3210720053
65
LEVER
68
LEVER ACCELERATOR CONTROL
71
BALL PIVOT , Replaced By: A3129910120
74
SCREW
77
NUT BALL PIVOT TO LEVER
80
PULL ROD
83
NUT BALL PIVOT TO LEVER
86
BALL SOCKET AT CONTROL LEVER
86
BALL SOCKET PULL ROD TO LEVER
89
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
92
BRACKET
95
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
98
LEVER
101
BALL PIVOT ACCELERATOR PEDAL,4 859026
101
BALL PIVOT
104
SCREW CONNECTOR TO TRANSMISSION
999
PART NAME MISSING , Replaced By: N071805010202
