Поз.
Артикул
Описание

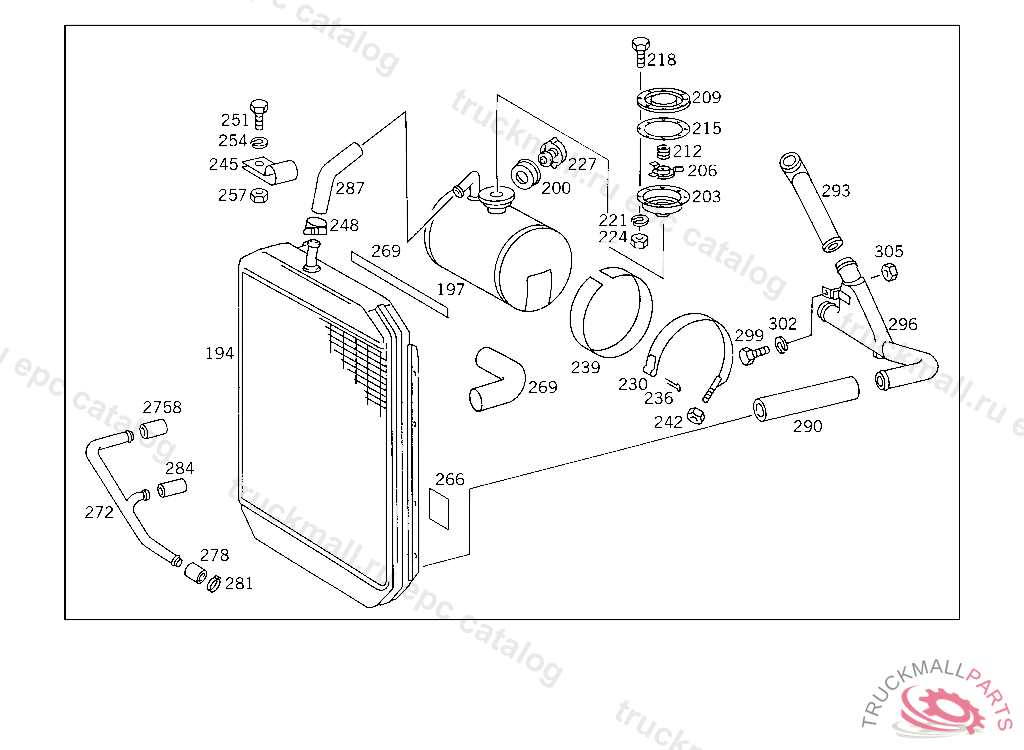

194
TANK RADIATOR
197
TANK (EXPANSION TANK)
197
TANK (EXPANSION TANK)
200
PIPE
203
VALVE HOUSING
206
VALVE
209
COVER
212
SPRING
215
GASKET
218
SCREW IN CASE OF SUBSEQUENT INSTALLATION
221
LOCK WASHER T-FITTING TO BRACKET
224
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
227
RADIATOR CAP
230
CLAMP EXPANSION TANK TO SUPPORT
236
COTTER PIN LEVER TO TORSION BAR
239
RUBBER STRIP EXPANSION TANK TO SUPPORT
242
NUT , Replaced By: N304032008006
245
CLAMP CABLE CONDUIT TO BRACKET,A 027955
248
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
251
SCREW
254
LOCK WASHER CLAMP TO BRACKET
257
NUT , Replaced By: N304032006004
266
RUBBER STRIP
269
HOSE FAN SHROUD
269
HOSE FAN SHROUD
272
LINE FROM RADIATOR TO WATER PUMP
275
HOSE FROM RADIATOR TO COOLING WATER PIPE
278
HOSE
281
CLAMP , Replaced By: N000000000671
281
CLAMP
284
HOSE
287
HOSE FROM RADIATOR TO WATER EXPANSION TANK
290
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR
293
COOLING WATER PIPE FROM RESERVOIR TO BUBBLE SEPARATOR
296
SEPARATOR (BUBBLE SEPARATOR)
296
SEPARATOR (BUBBLE SEPARATOR)
299
SCREW
302
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
305
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
HOSE HOSE TO AIR INTAKE PIPE AND TO INTAKE PIPE SOCKET
999
CLAMP , Replaced By: A3443207043
999
999
COOLING WATER PIPE OVERFLOW
999
999
999
REAR SPRING 12-LEAF
999
RING GEAR AND PINION , Replaced By: A3643500439
999
999
TANK
999
SUPPORT
999
PROTECTIVE PLATE
999
SPACER TUBE BRACKET
999
INSULATION EXHAUST MUFFLER TO SUPPORT
999
BASE PLATE EXHAUST MUFFLER TO SUPPORT
999
HOSE , ELIMINATED NO LONGER REQUIRED
999
CLAMP EXHAUST PIPE TO MUFFLER
999
DAMPING PAD EXHAUST MUFFLER TO SUPPORT
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
