Поз.
Артикул
Описание

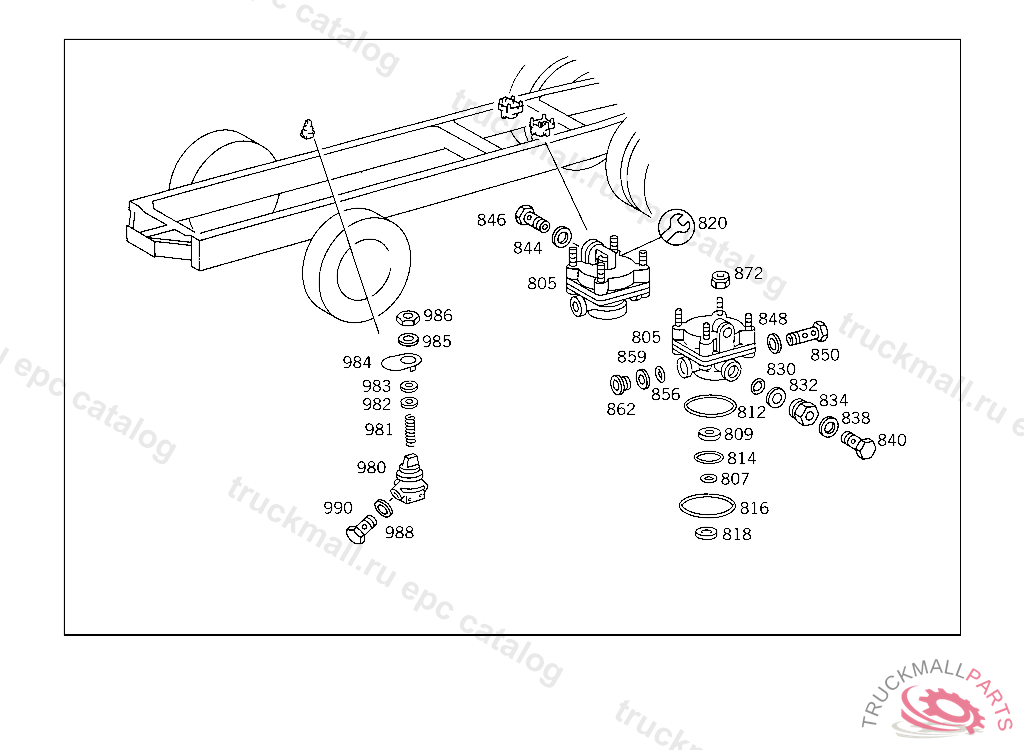

805
VALVE (RELAY VALVE) BOSCH
805
VALVE (RELAY VALVE) KNORR
805
VALVE (RELAY VALVE) GRAU
805
VALVE (RELAY VALVE) WABCO
807
SEAL RING22.3X2.4 MM,GRAU
809
VALVE SEATGRAU
812
SEAL RINGTO 000 429 28 95,GRAU
814
SEAL RING28X2 MM,GRAU
816
SEAL RING86X2 MM,GRAU
818
GASKET34X2X6 MM,GRAU
820
REPAIR KITTO 001 429 20 44,BOSCH
820
REPAIR KIT , Replaced By: A0004201071
820
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
820
VALVEBOSCH
820
REPAIR KIT , Replaced By: A0004301109
820
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
820
REPAIR KITWABCO
820
REPAIR KITKNORR
830
O-RING CHECK VALVE TO AIR RESERVOIR
832
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
832
THRUST RING CHECK VALVE TO AIR RESERVOIR
834
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
838
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
840
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
844
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
846
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
848
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
850
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
856
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
859
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
862
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
872
NUT , Replaced By: N913004008001
872
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
872
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
980
VALVE 3/2-WAY WABCO
980
VALVE 3/2-WAY BOSCH
980
VALVE 3/2-WAY KNORR
980
VALVE 3/2-WAY VOSS
981
SPRING INSIDE WABCO
982
SEAL RING INSIDE WABCO
983
SEAL RING TOP WABCO
984
UNIT IDENTIFICATION PLATE SYMBOL: LONGITUDINAL DIFFERENTIAL LOCK
985
WASHER AT TWO-WAY VALVE
986
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
988
SEAL RING , Replaced By: N007603010110
988
SEAL RING PNEUMATIC VALVE
988
SEAL RING LINE CONNECTION
990
HOLLOW SCREW LINE CONNECTION
990
HOLLOW SCREW HEATING CONNECTION
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
SCREW PIPE CLAMP
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING LINE CONNECTION
999
FITTING , Replaced By: A0009907871
999
SCREW , Replaced By: N304017008021
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
NUT , Replaced By: N308675016001
999
WASHER BRACKET TO FRAME
999
WASHER , Replaced By: N000125017016
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK (PROTECTION AGAINST TORSION),5 934168
999
BRACKET BRACKET TO CROSS MEMBER
999
LINE , Replaced By: A6254293501
999
BRACKET LINE MOUNTING,4 4389724 691315
999
BRACKET , Replaced By: A6205243040
999
LINE , Replaced By: A6194290801
999
LINE , Replaced By: A3834290801
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BRACKET , Replaced By: A3525422840
999
GROMMET CAB FLOOR
999
STOP LIGHT SWITCH , Replaced By: A0005457009
999
BRACKET AIR RESERVOIRS I AND II,5 586938
999
HOSE LEVER TO SUPPORT
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KIT , Replaced By: A0025865242
999
VALVE , Replaced By: A0024319306
999
VALVE , Replaced By: A0034295344
999
PLUGTO 008 420 59 18,KNORR
999
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0024312906
999
VALVE , Replaced By: A0024310406
999
VALVE , Replaced By: A0014318406
999
GASKET , Replaced By: A0004311980
999
SEAL RING , Replaced By: A0009971548
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
VALVE , Replaced By: A0024300381
999
VALVE , Replaced By: A0034291644
999
SCREW. UNION SCREW LINE CONNECTION
999
SPRING , Replaced By: A0009935205
999
BUSHING , Replaced By: N915062009000
999
BUSHING , Replaced By: N915062004000
999
BUSHING , Replaced By: N915062004000
999
CONNECTOR REPAIR SIZE
999
BANJO UNION , Replaced By: N915052004006
999
CONNECTOR , Replaced By: A0004311064
999
REPAIR KIT , Replaced By: A0024209324, +002A0024209424
999
REPAIR KIT , Replaced By: A0014300460
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KITTO 001 430 18 81/78 81
999
HANDLETO 001 430 17 81,KNORR
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296634
999
GUIDE , Replaced By: N071752014000
