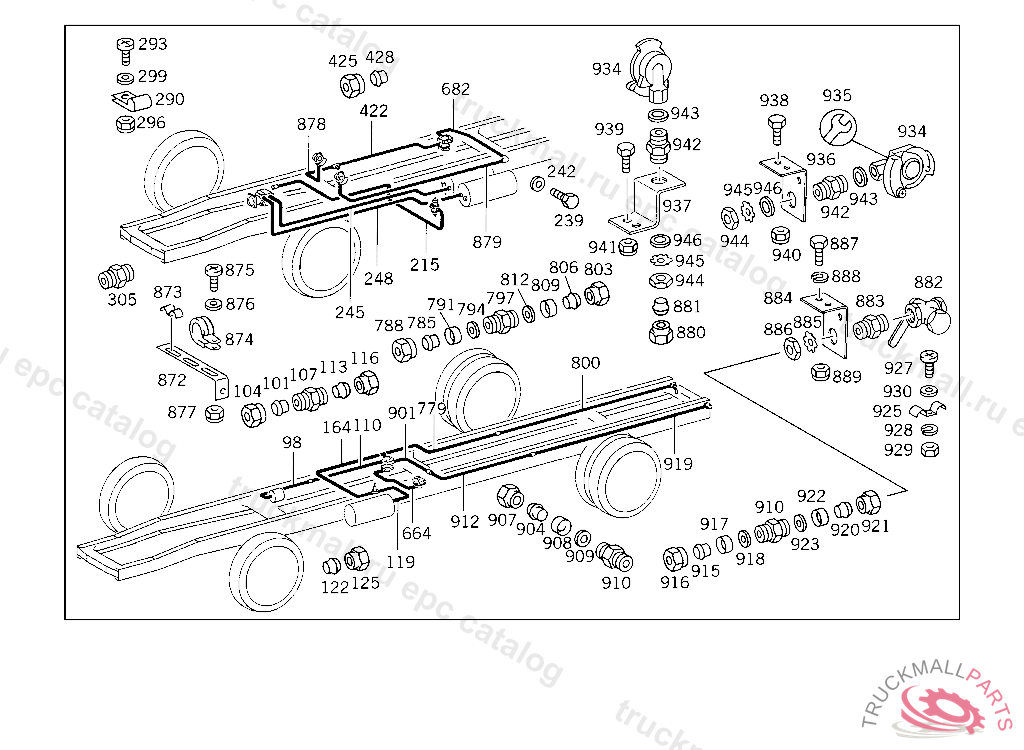

Поз.
Артикул
Описание
98
LINE FROM ONE-CHAMBER COMPRESSED AIR CYLINDER TO FITTING
98
LINE FROM ONE-CHAMBER COMPRESSED AIR CYLINDER TO FITTING
101
GLAND LINE CONNECTION
104
UNION NUT LINE CONNECTION
107
FITTING , Replaced By: A0039978972
107
CONNECTION FITTING ,880809
110
LINE FROM FITTING TO CONTROL VALVE
110
LINE FROM FITTING TO CONTROL VALVE
110
LINE FROM FITTING TO CONTROL VALVE
113
GLAND LINE CONNECTION
116
UNION NUT LINE CONNECTION
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
119
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
122
GLAND LINE CONNECTION
125
UNION NUT BUTT SCREW CONNECTION
164
LINE FROM OVERFLOW VALVE TO CONTROL VALVE
215
LINE FROM FITTING TO PRESSURE REGULATOR
239
SCREW AIR RESERVOIR CONSOLE TO SIDE MEMBER
239
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
239
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
242
WASHER AIR RESERVOIR CONSOLE TO SIDE MEMBER
245
LINE FROM AIR RESERVOIR TO BRAKE VALVE
248
LINE FROM AIR RESERVOIR II TO BRAKE VALVE
290
CLAMP ,K 147121, Replaced By: N000000000319
293
SCREW CABLE TO ALTERNATOR
296
NUT PUMP TO BRACKET
299
WASHER PLUG SOCKET TO BRACKET
305
CONNECTION FITTING ,880809
305
FITTING , Replaced By: A0039978972
422
LINE FROM T-FITTING TO CONTROL VALVE
422
LINE FROM T-FITTING TO CONTROL VALVE
422
LINE FROM T-FITTING TO CONTROL VALVE
422
LINE FROM T-FITTING TO CONTROL VALVE
425
UNION NUT
428
GLAND , Replaced By: A0019901967
428
GLAND FROM HIGH PRESSURE HOSE TO STEERING
664
LINE FROM CONTROL VALVE TO RELAY VALVE
664
LINE FROM CONTROL VALVE TO RELAY VALVE
664
LINE FROM CONTROL VALVE TO RELAY VALVE
664
LINE FROM CONTROL VALVE TO RELAY VALVE
779
LINE FROM FITTING TO CONTROL VALVE
779
LINE FROM FITTING TO CONTROL VALVE
779
LINE FROM FITTING TO CONTROL VALVE
779
LINE FROM FITTING TO CONTROL VALVE
779
LINE FROM FITTING TO CONTROL VALVE
779
LINE FROM FITTING TO CONTROL VALVE
785
GLAND FROM HIGH PRESSURE HOSE TO STEERING
785
GLAND LINE CONNECTION
788
UNION NUT BUTT SCREW CONNECTION
788
UNION NUT LINE CONNECTION, Replaced By: N000000006239
791
THRUST RING BUTT SCREW CONNECTION
794
SEAL RING , Replaced By: N007603012121
797
FITTING AIR RESERVOIR,CONNECTION: "2"
797
FITTING AIR RESERVOIR,CONNECTION: "13"
800
LINE FROM FITTING TO SHUT-OFF COCK
800
LINE FROM CONTROL VALVE TO SHUT-OFF COCK
800
LINE FROM FITTING TO RIGHT SHUT-OFF COCK 15X1.5 MM
800
LINE FROM CONTROL VALVE TO SHUT-OFF COCK
803
UNION NUT BUTT SCREW CONNECTION
806
GLAND LINE CONNECTION
809
THRUST RING BUTT SCREW CONNECTION
812
SEAL RING , Replaced By: N007603012121
872
BRACKET TO ENGINE
873
CLAMP COMPRESSED AIR LINE TO BRACKET
874
CLAMP ,K 147121, Replaced By: N000000000319
875
SCREW CABLE TO ALTERNATOR
876
WASHER PLUG SOCKET TO BRACKET
877
NUT PUMP TO BRACKET
878
LINE FROM CONTROL VALVE T-FITTING TO BRAKE LINE COUPLING
878
LINE FROM CONTROL VALVE T-FITTING TO BRAKE LINE COUPLING
879
LINE FROM ELBOW FITTING TO BRAKE LINE COUPLING
880
UNION NUT LINE CONNECTION, Replaced By: N000000006239
881
GLAND , Replaced By: A0019901967
882
SHUT-OFF COCK
882
SHUT-OFF COCK
883
CONNECTOR
883
CONNECTOR COMPRESSED AIR LINE TO FITTING AND TO RIGHT SHUT-OFF COCK,796307
884
BRACKET
885
TOOTHED WASHER TWO-WAY VALVE TO BRACKET
886
NUT
887
SCREW LINES TO BRACKET
888
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
889
NUT BRACKET TO SIDE MEMBER,XB209706
901
LINE FROM FITTING TO CONTROL VALVE
901
LINE FROM FITTING TO CONTROL VALVE
901
LINE FROM FITTING TO CONTROL VALVE
904
GLAND LINE CONNECTION
907
UNION NUT LINE CONNECTION
908
THRUST RING BUTT SCREW CONNECTION
909
SEAL RING , Replaced By: N007603012121
910
FITTING AIR RESERVOIR,CONNECTION: "13"
910
FITTING AIR RESERVOIR,CONNECTION: "2"
912
LINE AT FITTING
912
LINE AT FITTING
912
LINE AT FITTING
915
GLAND LINE CONNECTION
916
UNION NUT BUTT SCREW CONNECTION
917
THRUST RING BUTT SCREW CONNECTION
918
SEAL RING , Replaced By: N007603012121
919
LINE FROM FITTING TO RIGHT SHUT-OFF COCK 15X1.5 MM
920
GLAND LINE CONNECTION
921
UNION NUT BUTT SCREW CONNECTION
922
THRUST RING BUTT SCREW CONNECTION
923
SEAL RING , Replaced By: N007603012121
925
CLAMP , Replaced By: A3129952420
925
CLAMP LINE MOUNTING
927
SCREW CABLE TO ALTERNATOR
928
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
929
NUT
930
WASHER PLUG SOCKET TO BRACKET
934
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
934
BRAKE LINE COUPLING LEFT
935
REPAIR KIT SUPPLY, RED TO 000 429 86 30
936
BRACKET
937
BRACKET
938
SCREW LINES TO BRACKET
939
SCREW , Replaced By: N304017010040
940
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
941
NUT BRACKET TO SIDE MEMBER,XB209706
942
FITTING BRAKE LINE COUPLING,796308
943
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
944
NUT BRACKET TO SIDE MEMBER
945
TOOTHED WASHER SENDER UNIT TO BRACKET
945
TOOTHED WASHER SHUT-OFF COCK,796307
946
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
COVER SUPPLY, RED "WABCO"
999
COVER BRAKE,YELLOW "WABCO"
999
T-FITTING AIR RESERVOIR I
999
REPAIR KIT CONTROL VALVE TO 002 431 28 05
999
REPAIR KITTO 003 429 02 44
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
VALVE (OVERFLOW VALVE)
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
999
BRACKET FUEL LINE
999
BRACKET FUEL LINES
999
CLAMPING PIECE LINE MOUNTING
999
CLAMP , Replaced By: A3379950332
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING,684146
999
LINE FROM CHECK VALVE TO CONNECTOR, NOT USED
999
CLAMP
999
LINE FROM SERVICE BRAKE VALVE TO REAR AXLE BRAKE CYLINDER,666575
999
LINE , NOT USED
999
LINE FROM T-FITTING TO CONTROL VALVE, NOT USED
999
LINE , NOT USED
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE FROM FITTING TO T-FITTING 12X1 MM, USED WITH AIR BRAKE,FROM CHASSIS 588186
999
LINE , NOT USED
999
LINE , NOT USED
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE FROM FITTING TO THREE-WAY VALVE 6X0.7 MM
999
LINE FROM SERVICE BRAKE VALVE TO FRONT AXLE BRAKE CYLINDER,666575
999
LINE RELAY VALVE,CONNECTION "2"
999
LINE T-FITTING
999
BRACKET PIPING
999
CLAMP , Replaced By: N916016008200
999
CONNECTION FITTING , Replaced By: A0049971772
999
FITTING , Replaced By: A0009970171
