Поз.
Артикул
Описание

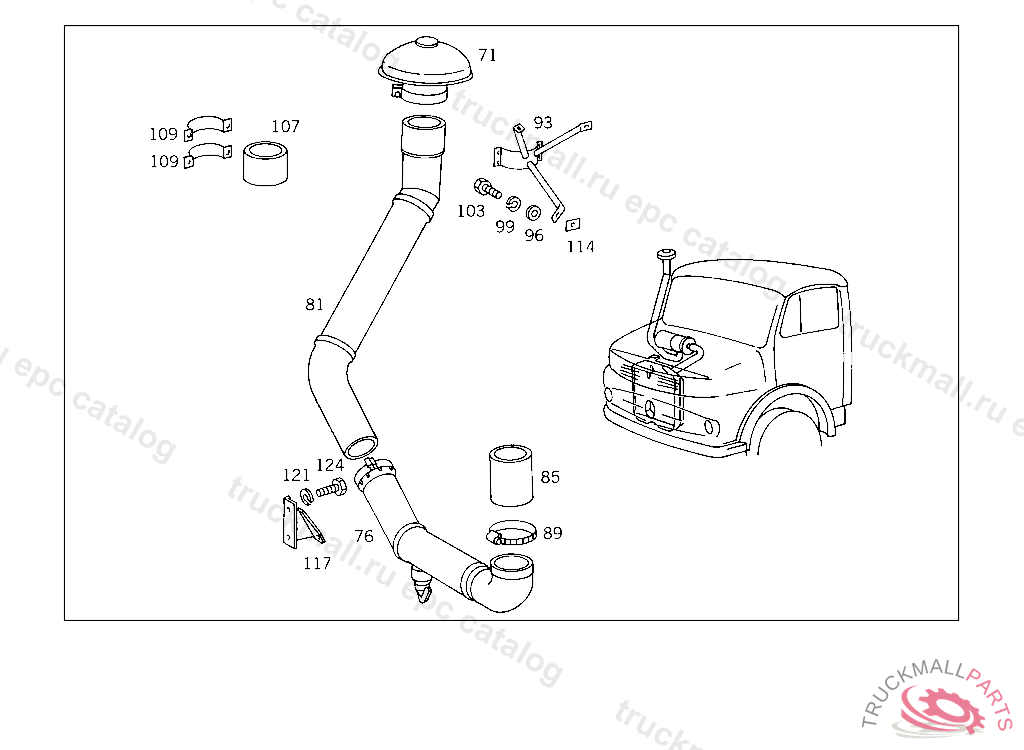

71
COVER
76
INTAKE PIPE TO AIR CLEANER,FIRST PART
81
INTAKE PIPE SECOND PART
85
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
89
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
89
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
89
CLAMP , Replaced By: A0059971490
93
BRACKET AIR INTAKE PIPE TO CAB
96
WASHER EXHAUST MUFFLER TO STRAP
96
WASHER , Replaced By: N000125008443
99
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
103
SCREW PIPE CLAMP
103
SCREW , Replaced By: N304017008021
107
SHIM
109
CLAMP INTAKE PIPE TO BRACKET
114
SHIM
117
BRACKET AIR INTAKE PIPE
121
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
124
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
124
SCREW , Replaced By: N304017008027
124
SCREW PIPE CLAMP
124
SCREW , Replaced By: N304017008021
999
CONNECTOR
999
HOSE
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: N304017008018
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017010028
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
999
SCREW SUPPORT TO FENDER
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
