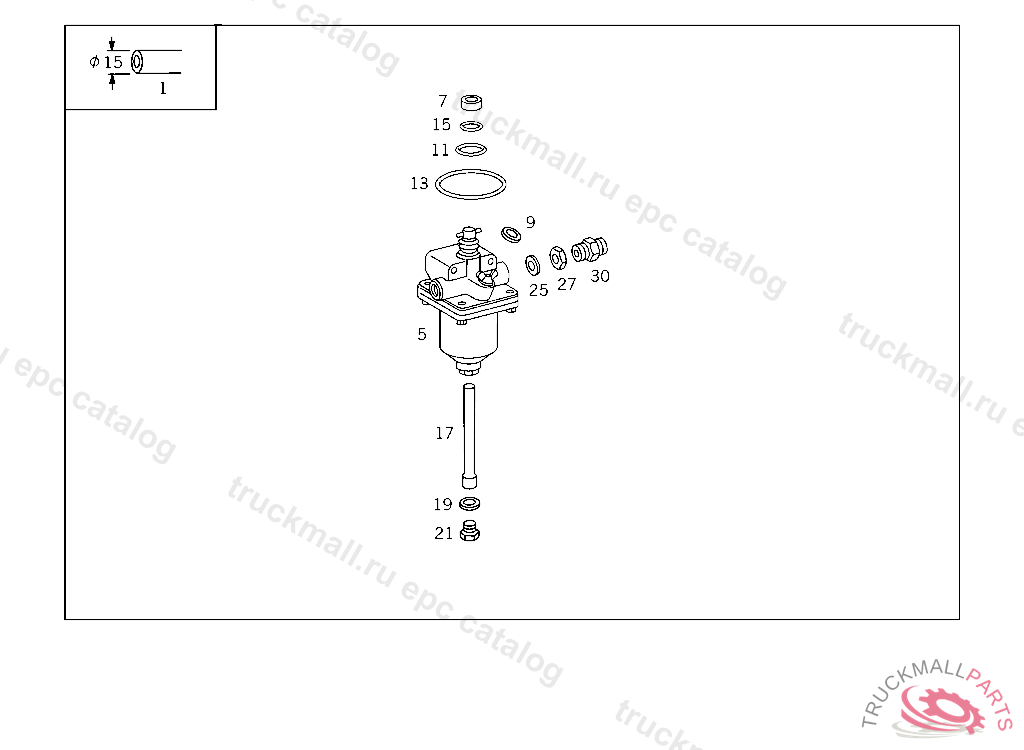

Поз.
Артикул
Описание
1
LINE , Replaced By: A0005516256
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
5
ANTI-FREEZE DEVICE , Replaced By: A0004312615
5
ANTI-FREEZE DEVICE , Replaced By: A0004312615
5
ANTI-FREEZE DEVICE , Replaced By: A0004312615
5
ANTI-FREEZE DEVICE
7
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
9
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
11
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
13
SEALING CORD
15
SEAL RINGTO 001 431 37 05,4 375193
17
WICK , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
19
SEAL RING FUEL LINE TO FEED PUMP
21
SCREW PLUG
25
SEAL RING LINE CONNECTION
27
NUT CHECK VALVE TO AIR RESERVOIR
30
FITTING SHUTTLE VALVE,CONNECTION: "20"
30
FITTING , Replaced By: A0019972372
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
ELBOW FITTING , Replaced By: A0004294638
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
SCREW PLUG WITH DIPSTICK
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
BRACKET ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
