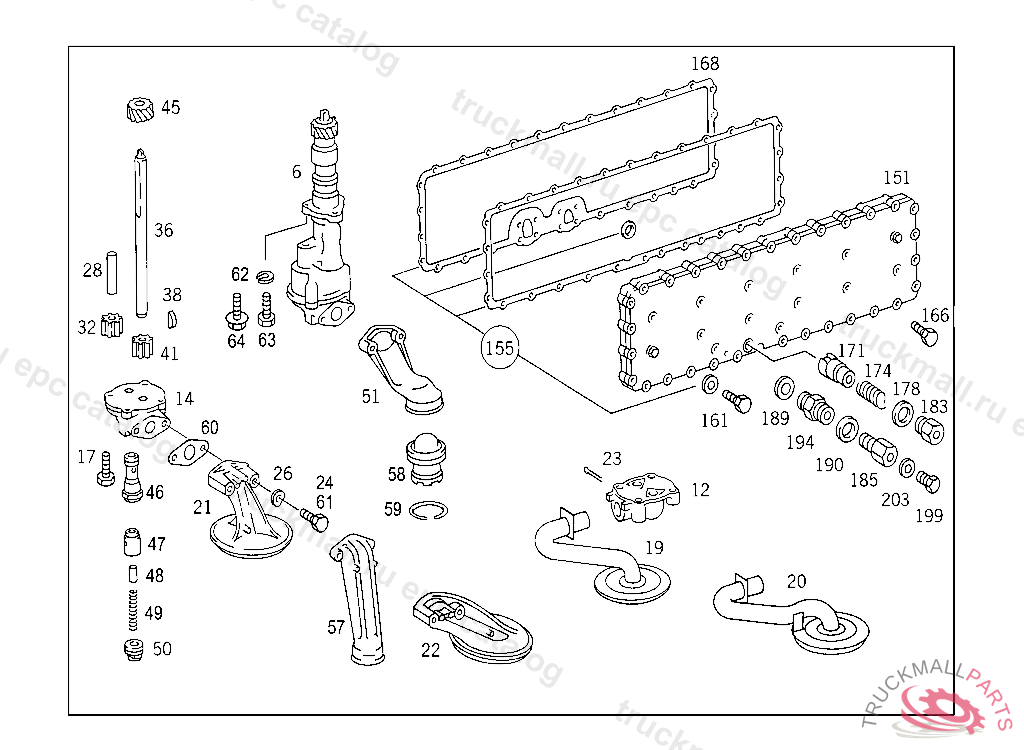

Поз.
Артикул
Описание
6
OIL PUMP
6
OIL PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 110592, Replaced By: A3641800101
12
COVER ,000032
14
COVER
17
SCREW , Replaced By: A0069909301
17
SCREW BRACKET TO APPARATUS SUPPORT
20
SUCTION PIPE
22
SUCTION BASKET OIL PUMP, 343.919-016 FROM ENGINE 122780 343.919-016 UP TO ENGINE 104827 INAPPLICABLE TO MODEL 343.919-003,005,006,010,012,015
23
COTTER PIN ,000032
24
SCREW LINE TO SIDE MEMBER
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SPRING WASHER , Replaced By: N000137008212
28
OIL PUMP SHAFT
32
GEAR ,000140
32
GEAR
36
DRIVE SHAFT
36
DRIVE SHAFTTO 352 180 79 01, 314 484415 352 827575 353 827575 364 005097 366 028373
36
DRIVE SHAFT , 03081673.5 KW (100 PS) 02551080.9 KW (110 PS) 06737492.6 KW (126 PS) 003613 110.3 KW (150 PS)
36
DRIVE SHAFT
38
WOODRUFF KEY
41
GEAR ,000033000140
41
GEAR
45
HELICAL GEAR OIL PUMP DRIVE, 314 484415 352 827575 353 827575 364 005097 366 028373
45
HELICAL GEAR
46
PRESSURE RELIEF VALVE
47
HOUSING OIL PRESSURE RELIEF VALEE
48
PISTON , Replaced By: A3661810042
49
SPRING
50
SCREW PLUG OIL PRESSURE RELIEF VALEE
51
SUCTION BASKET
58
SUCTION BASKET
59
SNAP RING
60
GASKET SUCTION PIPE TO OIL PUMP HOUSING
61
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
63
SCREW MOUNTING PARTS M8 X 170
64
SCREW ,12/96
151
OIL COOLER
155
GASKET KIT OIL COOLER, FROM ENGINE 923827-999999 YEAR OF MANUFACTURE 1988-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
155
GASKET KIT OIL COOLER
155
GASKET KIT , Replaced By: A3661803765
155
GASKET KIT , Replaced By: A3661803565
161
SCREW , Replaced By: A0069909301
161
SCREW BRACKET TO APPARATUS SUPPORT
166
SCREW , 973 10/50,20/60 004128 974 10/50,20/60 001111
168
GASKET OIL COOLER TO CYLINDER CRANKCASE,730881
168
GASKET OIL COOLER TO CYLINDER CRANKCASE
171
VALVE OIL PRESSURE RELIEF VALVE, UP TO ENGINE 351138 YEAR OF MANUFACTURE 1994
174
SPRING OIL PRESSURE RELIEF VALVE, UP TO ENGINE 351138 YEAR OF MANUFACTURE 1994
178
SEAL RING LINE CONNECTION
183
SCREW PLUG
189
SEAL RING TRANSMISSION CASE COVER TO TRANSMISSION CASE, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
199
SCREW PLUG AIR DEHYDRATOR
199
SCREW PLUG , Replaced By: N007604014110
199
SCREW PLUG 4/2-WAY VALVE
199
SCREW PLUG FUEL TANK
203
SEAL RING CLUTCH BOOSTER
999
HOUSING
999
HELICAL GEAR , Replaced By: A3521811108
999
OIL PUMP , Replaced By: A3521807001, +001A3521800955, +001A3121860080, +002N914010008008
999
SUCTION BASKET ,291735, Replaced By: A3521801055
999
OIL COOLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 730880, Replaced By: A3621800765, +001A3661880180
999
GEAR ,000032, Replaced By: A3141810206, +001A3521810405, +001A3521811108
999
HOUSING ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
OIL PUMP , 067707, Replaced By: A3521807001, +001A3521800955, +001A3121860080, +002N914010008008
999
HOUSING ,000033000140, Replaced By: A3521812201, +001A3521810106, +001A3521810206
999
DRIVE SHAFT ,000032, Replaced By: A3521810205, +001A3141810206, +001A3521811108
999
HELICAL GEAR ,000032, Replaced By: A3521811008, +001A3521810405, +001A3141810206
999
OIL COOLER , Replaced By: A3521800865, +001A3621801065, +010N000933008215
999
ADAPTER
999
SUCTION BASKET (STRAINER)
