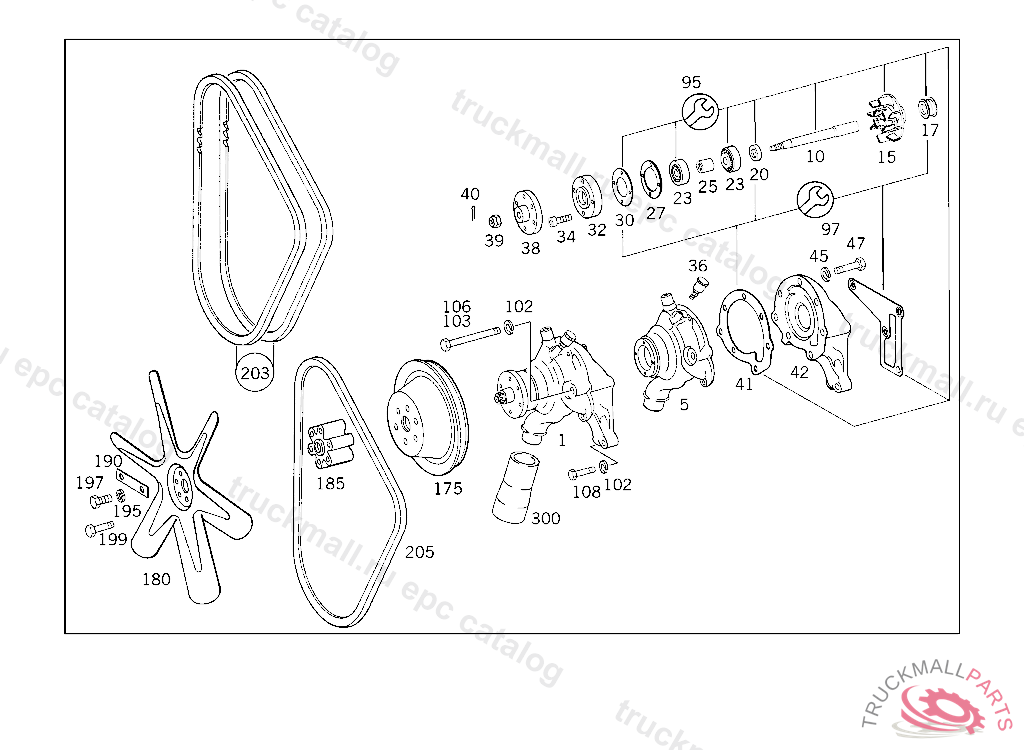

Поз.
Артикул
Описание
1
WATER PUMP , 004710, Replaced By: A3522002301, +001A3522010012, +001A3522012080, +001A3522032380, +001A3405010382, +002N000931008031
5
BODY , Replaced By: A3522002301, +001A3522010012, +001A3522012080, +001A3522032380, +001A3405010382, +002N000931008031
10
SHAFT
15
IMPELLER , ORDER WATER PUMP REPAIR KIT
17
SEAL
20
SEALING RING. SEAL RING , UP TO ENGINE 920,924 10/50,20/60 000066 920,924 12/52,22/62 000012 923,926 10/50,20/60 000025 923,926 12/52,22/62 000004
23
TAPERED ROLLER BEARING
25
SPACER TUBE
27
SPACER WASHER AS REQUIRED 0.2 MM
27
SPACER WASHER AS REQUIRED 0.15 MM
30
GASKET
32
SEAL HOLDER
34
SCREW
34
SCREW , Replaced By: A0009905704
34
SCREW
36
BUSHINGTO 314 200 06 01,000067
38
HUB
39
NUT SUPPORT TO SIDE MEMBER
40
COTTER PIN TO SECURE BRAKE CABLE
41
GASKET
42
COVER
45
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
SCREW
95
IMPELLER WATER PUMP, 004710
95
REPAIR KIT , Replaced By: A3532000004
97
REPAIR KIT , Replaced By: A3532004201
97
GASKET KIT WATER PUMP, 004710
102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
103
SCREW CLUTCH TO FLYWHEEL
106
SCREW CLUTCH OPERATION,4 282707
106
SCREW , Replaced By: N304017010055
106
SCREW SUPPORT TO SIDE MEMBER M 10X65,B 884219
106
SCREW , Replaced By: N304017010050
108
SCREW CONNECTOR TO REAR SHIFTING ROD
108
SCREW SHIFTING ROD TO JOINT
108
SCREW REAR EXHAUST PIPE TO MUFFLER
175
PULLEY
180
FAN
180
FAN
190
LOCK
195
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
197
SCREW BRACKET TO APPARATUS SUPPORT
197
SCREW BRACKET TO SIDE MEMBER
197
SCREW CABLE HARNESS MOUNTING
197
SCREW BRACKET TO EXHAUST PIPE BRACKET
197
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
197
SCREW BRACKET TO SIDE MEMBER,K 168169
197
SCREW , Replaced By: N304017008023
197
SCREW , Replaced By: N304017008024
197
SCREW , Replaced By: A0069909301
197
SCREW , Replaced By: A0089907401
199
SCREW LEVER TO PEDAL,4 247126
199
SCREW DIFFERENTIAL CASE
205
V-BELT
205
V-BELT FROM ENGINE TO BELT TIGHTENER PULLEY 12.5X1450 MM
300
HOSE
999
THERMOSTAT ELEMENT ,078816, Replaced By: A0032032875, +001A3522032280
999
THERMOSTAT ELEMENT , 314.9 259272 352.9 437435, Replaced By: A0032033175, +001A3522032280
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032032975
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032033275
999
GASKET FOR REPAIR PURPOSES ONLY 0.5 MM
999
LINE , 004711 024899, Replaced By: A3522032901, +002N000931008061, +002N000931008210
999
WATER PUMP , Replaced By: A3522009301
999
WATER PUMP WITH GASKET
999
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 740566, Replaced By: A3522011803
999
HOUSING , 004711-021981, Replaced By: A3522031173, +001N007603018101, +001N007604018101
999
LINE ,000155, Replaced By: A3522032901, +002N000931008061, +002N000931008210
999
HOUSING , Replaced By: A3522031173, +001A3522000354
999
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 369347, Replaced By: A3522033301
999
REPAIR KIT , Replaced By: A3522000560
999
REPAIR KIT , Replaced By: A3522001304
