Поз.
Артикул
Описание

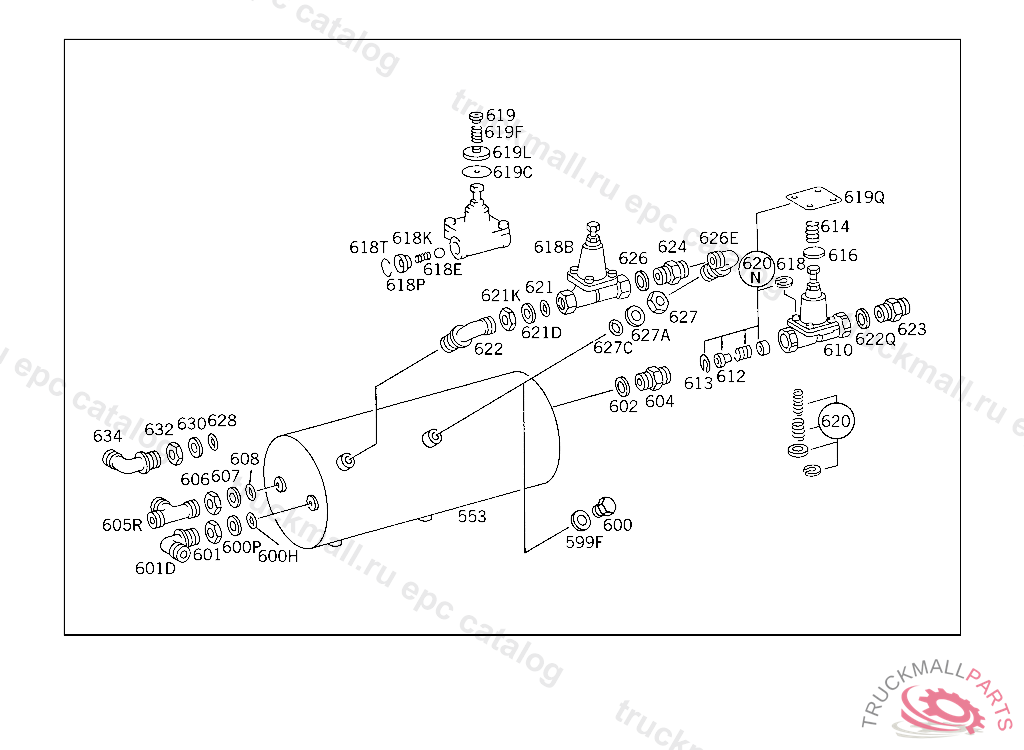

553
RESERVOIR OUTSIDE AIR RESERVOIR
553
RESERVOIR7+33 L, UP TO IDENT NO. 840080 EXCEPT FOR:500001-599999
604
FITTING SHUTTLE VALVE,CONNECTION: "20"
607
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
608
O-RING CHECK VALVE TO AIR RESERVOIR
610
VALVE , Replaced By: A0014296144
612
BUSHINGWABCO,5 433388
613
LOCK RINGWABCO,5 433388
614
SPRING
616
DIAPHRAGMTO 000 429 63 44
618
LOCK WASHER CLUTCH AND BRAKE PEDAL LOCKS TO BEARING BRACKETS
624
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
626
SEAL RING LINE CONNECTION
999
PROTECTIVE CAP SHEET METAL VERSION
999
THRUST WASHERTO 000 429 00 44
999
LOCKTO 000 429 00 44
999
VALVETO 000 429 94 44
999
SPRING RETAINERTO 000 429 00 44
999
VALVE NIPPLETO 000 429 00 44
999
SPRINGTO 000 429 00 44
999
SPRINGTO 000 429 00 44
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
DISTRIBUTOR ,4 342862
999
VALVE , Replaced By: A0014294144
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KITTO 003 429 02 44
999
REPAIR KIT SEAL RING BOSCH,209
999
STRAINERTO 002 430 31 01
999
CUP SECONDARY
999
T-FITTING , Replaced By: N074317000100
999
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
VALVE , Replaced By: A0024297244
999
VALVE (OVERFLOW VALVE)
999
VALVE , Replaced By: A0024297244
999
VALVE (OVERFLOW VALVE)
999
VALVE (OVERFLOW VALVE)
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PRESSURE REGULATOR"WABCO",486597
999
PRESSURE REGULATORWABCO
999
PRESSURE REGULATOR , Replaced By: A0024316006
999
REPAIR KITTO 001 429 52 44
999
REPAIR KITBOSCH
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT , Replaced By: A0004301407
999
FITTING
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
VALVE (OVERFLOW VALVE),4 9119185 116581
999
VALVE
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
999
PRESSURE REGULATOR , Replaced By: A0024315906
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KIT , FROM 626
999
VALVE (OVERFLOW VALVE)
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
CLAMP FUEL LINE TO BRACKET
999
SHACKLE
999
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
ADJUSTING PIN , Replaced By: A3024230619, +004A3024210329, +004A3124211073
999
LOCK , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
CLAMP , Replaced By: A1109950401
999
BRAKE LEVER , Replaced By: A3604201012
999
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
999
BRAKE ANCHOR PLATE , Replaced By: A3584200917
999
ROD FROM BRAKE SHAFT TO BRAKE LEVER
999
BRACKET DISTRIBUTOR
999
BRACKET DISTRIBUTOR
999
CLAMP , Replaced By: A6739950001
999
NUT FROM BRAKE SHAFT TO BRAKE LEVER
999
ADHESIVE FOIL GUIDE SIGN
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
SCREW BRAKE LINE MOUNTING
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW PLUG , Replaced By: N000908012009
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW , UP TO CHASSIS 680031 EXCEPT FOR:500001-599999
999
SCREW DISTRIBUTOR TO BRACKET,4 481288
999
SCREW , Replaced By: N304017006027
999
SCREW , Replaced By: N304017008018
999
SCREW STRAP TO BRACKET
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT PULL ROD
999
NUT STRAP TO SUPPORT,5 149419
999
NUT STRAP TO SUPPORT
999
NUT BRACKET TO EXHAUST PIPE BRACKET
999
SCREW , Replaced By: N308676012012
999
SCREW CONSOLE TO SIDE MEMBER
999
TURNBUCKLE , Replaced By: A3859960034
999
CAP NUT SWITCH TO CAB FRONT PANEL
999
TOOTHED WASHER HANDLE TO RATCHET ROD
999
SEAL RING AT OVERFLOW VALVE,4 477511
999
SEAL RING LINE CONNECTION
999
SCREW LINE MOUNTING M 6X16
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
ELBOW FITTING LINE CONNECTION
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
NUT CHECK VALVE TO AIR RESERVOIR
999
SCREW APPARATUS PLATE M 6X45
999
SCREW SUPPORT TO FENDER
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
LOOM TIE HAND PUMP
999
STRAP , UP TO CHASSIS 693686 EXCEPT FOR:500001-599999
999
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT
999
HOLLOW SCREW HEATING CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
FITTING LINE CONNECTION TO FIRE WALL,5 726664
