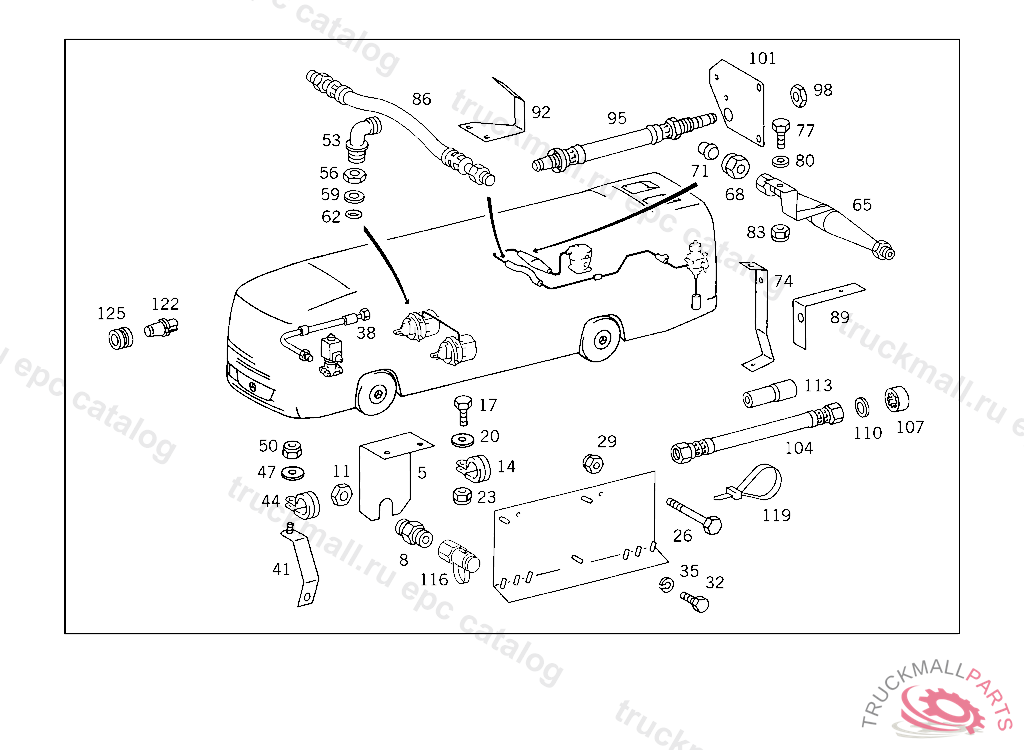

Поз.
Артикул
Описание
5
BRACKET AIR RESERVOIR 6 L
8
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
8
FITTING , Replaced By: A0009977172
11
NUT ,D 091466
14
CLAMP LINES TO BRACKET
14
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
14
CLAMP LINE MOUNTING SA 088202/01
17
SCREW LICENSE PLATE TO BRACKET
17
SCREW , Replaced By: N304017006020
17
SCREW CAB FLOOR COVERING M 6X25
20
WASHER COMPRESSED AIR LINE TO BRACKET
20
WASHER , Replaced By: N009021006208
23
NUT PUMP TO BRACKET
23
NUT , Replaced By: N913004006001
26
SCREW CONNECTOR
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
32
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
SCREW , Replaced By: N304017008016
35
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
38
BRAKE HOSE REGULATING SOLENOID VALVE,CONNECTION: "2"
41
BRACKET LEFT AND RIGHT BRAKE HOSES
44
CLAMP BRAKE HOSE BRACKET
47
WASHER COMPRESSED AIR LINE TO BRACKET
47
WASHER , Replaced By: N009021006208
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
53
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
56
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
59
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
MUFFLER , FROM IDENT NO.: 052097 WITH MERCEDES-BENZ BODY FROM IDENT NO.: 052032 LESS MERCEDES-BENZ BODY
68
UNION NUT BUTT SCREW CONNECTION
71
GLAND LINE CONNECTION
74
BRACKET BRACKET TO ENGINE
74
BRACKET MASTER CYLINDER TO PEDAL BEARING BRACKET
77
SCREW CABLE HARNESS MOUNTING
77
SCREW , Replaced By: N304017008023
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER , Replaced By: N000125008443
83
NUT , Replaced By: N913004008001
86
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
86
BRAKE HOSE COMPRESSED AIR LINE TO COMPRESSED AIR LINE
89
BRACKET AT AIR COMPRESSOR
92
BRACKET COMPRESSED AIR LINE TO ENGINE
95
BRAKE HOSE LEFT SPRING-LOAD ACCUMULATOR
98
NUT BRACKET TO SIDE MEMBER
101
BRACKET BRAKE HOSE
104
BRAKE HOSE REAR AXLE,LEFT AND RIGHT, UP TO IDENT NO. 078532 WITH MERCEDES-BENZ BODY UP TO IDENT NO. 078814 LESS MERCEDES-BENZ BODY
107
RUBBER RING
110
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
113
HOSE CONNECTION OF COOLING WATER LINES
116
TEST CONNECTION
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION
116
TEST CONNECTION SECONDARY CONSUMING UNITS
119
LOOM TIE LINE MOUNTING
122
GROMMET
125
GROMMET CLUTCH LINE TO BRACKET
999
GROMMET FOR PASSAGE OF LINE
999
BRACKET BRAKE HOSE,092917
999
BREATHER PIPE , Replaced By: A6455010182
