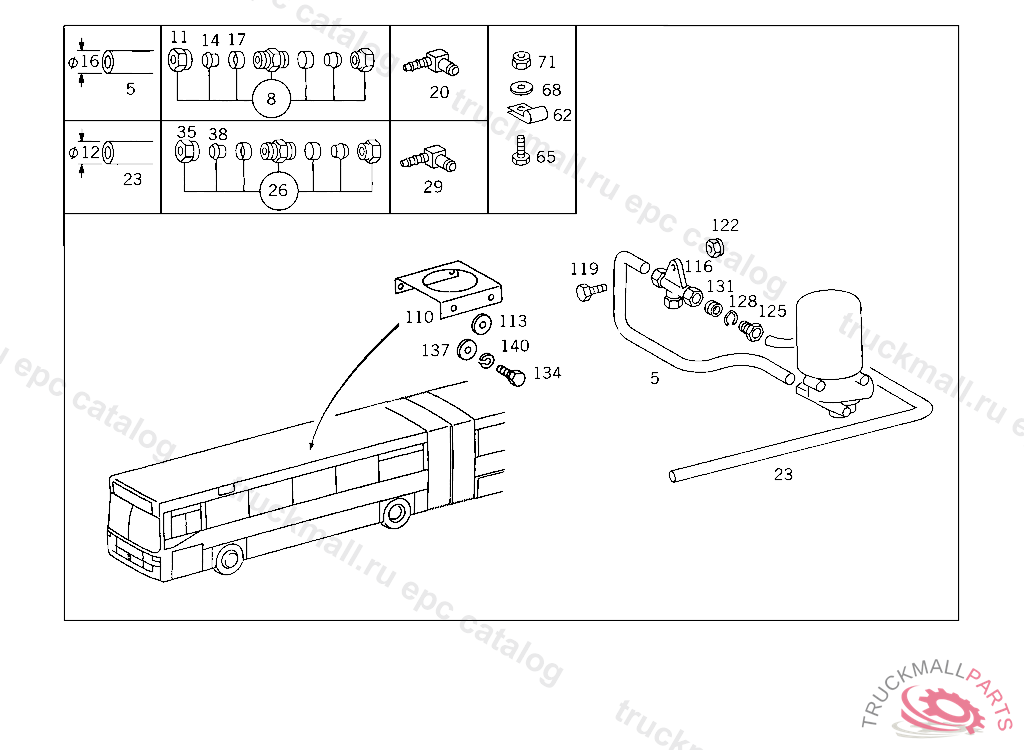

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872927
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT
14
GLAND
17
SLEEVE
20
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 230
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
23
HOSE , Replaced By: A0009872827
26
FITTING (PARTS KIT),LINE RUPTURE
29
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
35
UNION NUT LINE CONNECTION
35
UNION NUT LINE CONNECTION, Replaced By: N000000006239
38
GLAND , Replaced By: A0019901967
38
SEAL CONE LINE CONNECTION
62
CLAMP LINE MOUNTING
62
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
62
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
62
CLAMP DELIVERY AND SUCTION LINES TO FRAME
62
CLAMP BRAKE HOSE BRACKET
62
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
65
SCREW CAB FLOOR COVERING M 6X25
68
WASHER , Replaced By: N009021006208
68
WASHER COMPRESSED AIR LINE TO BRACKET
71
NUT PUMP TO BRACKET
71
NUT , Replaced By: N913004006001
110
BRACKET PRESSURE REGULATOR
113
WASHER BRACKET TO LEFT SIDE MEMBER
113
WASHER , Replaced By: N009021008213
116
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
119
SCREW BRACKET TO CROSS CONNECTION STRUT
119
SCREW , Replaced By: N304014008021
119
SCREW , Replaced By: N304017008034
122
NUT , Replaced By: N913004008001
125
SCREW. UNION SCREW LINE CONNECTION
128
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
131
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
134
SCREW , Replaced By: N304017008016
134
SCREW , Replaced By: N304017006016
134
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
SCREW PUMP TO BRACKET
137
WASHER , Replaced By: N009021008213
137
WASHER , Replaced By: N009021006208
137
WASHER COMPRESSED AIR LINE TO BRACKET
137
WASHER BRACKET TO LEFT SIDE MEMBER
140
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
140
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
RESERVOIR
999
SUPPORT
