Поз.
Артикул
Описание

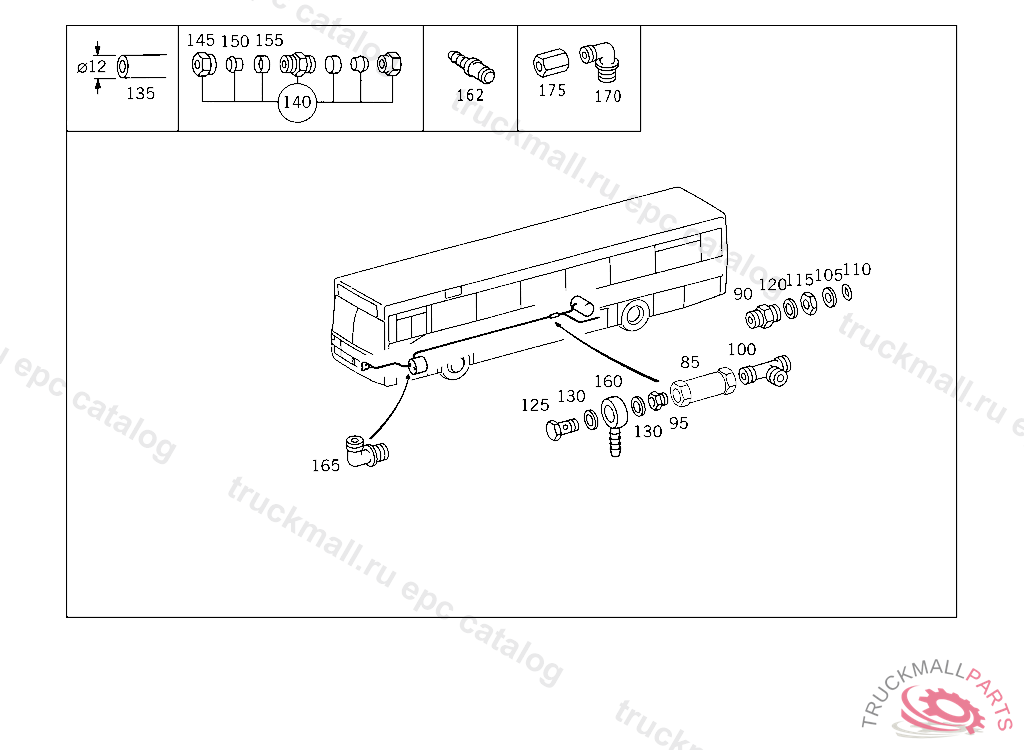

85
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
90
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
90
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
95
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
100
T-FITTING , Replaced By: N074317000100
100
T-FITTING BETWEEN THE LINES
105
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
110
O-RING CHECK VALVE TO AIR RESERVOIR
115
NUT CHECK VALVE TO AIR RESERVOIR
120
SEAL RING LINE CONNECTION
125
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
130
SEAL RINGTO 006 997 00 72
135
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
135
HOSE , Replaced By: A0009872827
140
FITTING , Replaced By: A0029906171
140
FITTING (PARTS KIT),LINE RUPTURE
145
UNION NUT LINE CONNECTION
145
UNION NUT LINE CONNECTION, Replaced By: N000000006239
150
GLAND , Replaced By: A0019901967
150
SEAL CONE LINE CONNECTION
155
SLEEVE LINE CONNECTION
160
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
162
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
165
ELBOW FITTING PRESSURE REGULATOR,CONNECTION: "21",051560
170
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
175
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
999
TEST CONNECTION
999
FITTING AT BRACKET
999
BRACKET TEST CONNECTION
