Поз.
Артикул
Описание

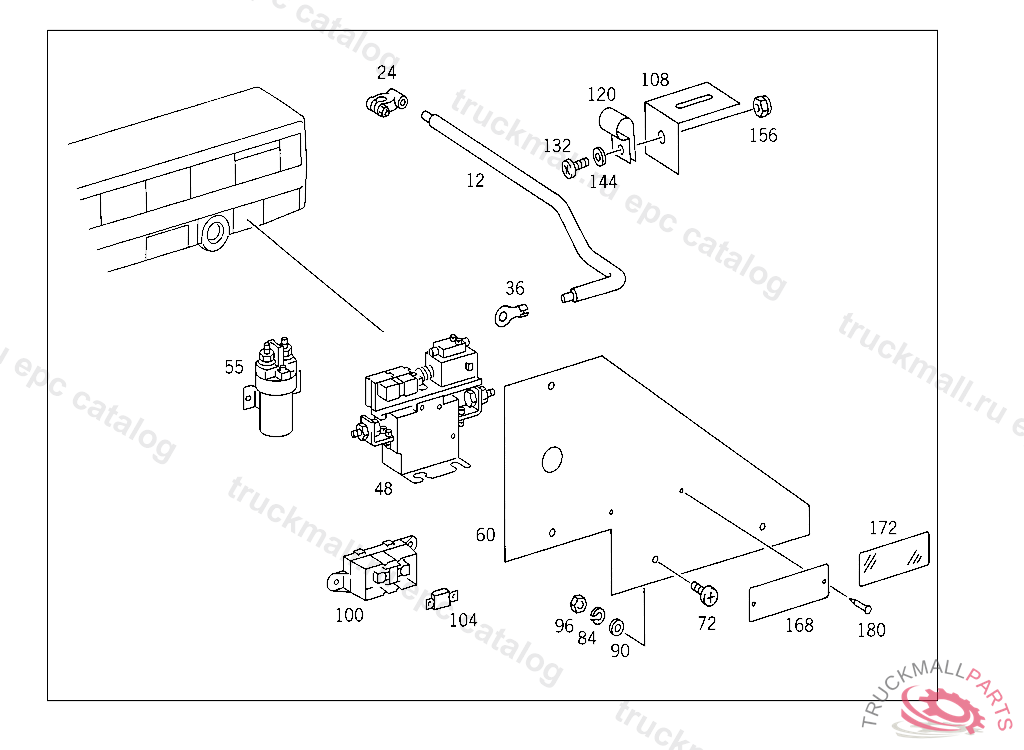

12
ELECTRIC CABLE FROM BATTERY TO BATTERY MASTER SWITCH, ORDER BY THE METER
24
SOLDERING TERMINAL NEG.POLE
36
CABLE SHOE
48
SWITCH (BATTERY MASTER SWITCH)
48
SWITCH , Replaced By: A0005458408
48
SWITCH (BATTERY MASTER SWITCH)
55
RELAY BATTERY CUT-OFF 24V/300A
60
BRACKET BATTERY MASTER SWITCH
72
SCREW CLAMP MOUNTING M 6X16
72
SCREW COVER PLATE TO COVER PLATE M 6 X 12
72
SCREW BRACKET TO TAIL LAMP BRACKET
72
SCREW , Replaced By: N000000001146
72
SCREW , Replaced By: N304017006020
72
SCREW , Replaced By: N304017006018
72
SCREW LICENSE PLATE TO BRACKET
84
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
96
NUT BALL PIVOT TO LEVER
100
FUSE BOX
104
FUSE BATTERY CUT-OFF RELAY 300 A
108
BRACKET LINE MOUNTING
120
CLAMP OIL FILLER PIPE TO BRACKET
132
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
132
SCREW CLAMP TO BRACKET
144
WASHER , Replaced By: N009021006208
144
WASHER COMPRESSED AIR LINE TO BRACKET
156
NUT
168
GUIDE SIGN BATTERY MASTER SWITCH
172
ADHESIVE FOIL GUIDE SIGN
180
GROOVED NAIL BATTERY MASTER SWITCH
999
RELAY (BATTERY MASTER SWITCH)
