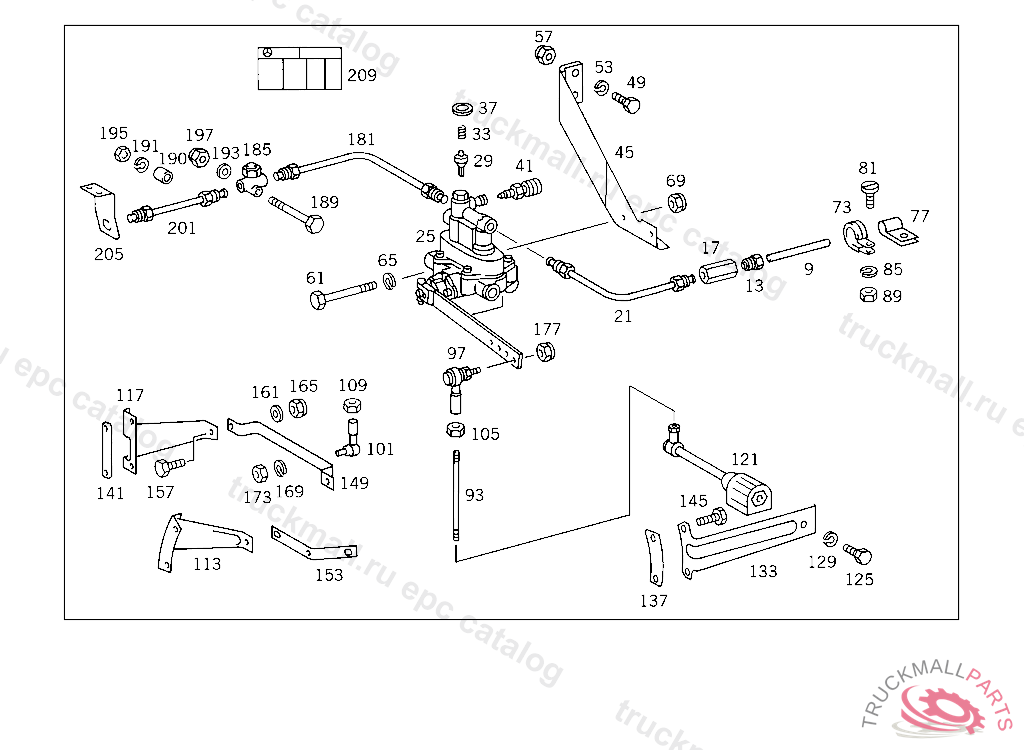

Поз.
Артикул
Описание
9
LINE , Replaced By: A0004296201
9
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
13
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
17
CONNECTOR OIL DELIVERY LINE
17
CONNECTOR OIL DELIVERY LINE
21
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
21
LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
21
LINE FROM MASTER CYLINDER TO CONNECTOR 4400 MM
21
LINE FROM MASTER CYLINDER TO CONNECTOR 4400 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
21
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
21
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
21
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR 3800 MM,4 478329
21
LINE FROM DISTRIBUTOR TO VALVE 4800 MM
21
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
21
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
21
LINE FROM VALVE TO BRAKE HOSE 1600 MM
21
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
21
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
21
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
25
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
25
BRAKE PRESSURE REGULATOR , UP TO CHASSIS 4 337020 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
29
VALVE PART
29
VALVE PART , Replaced By: A0004311068
33
SPRING
37
SEAL RING VALVE TO VALVE,K 025179
41
VALVE CLUTCH SLAVE CYLINDER
41
VALVE , Replaced By: A3075530107
41
VALVE , Replaced By: A0004310265
45
BRACKET , Replaced By: A3604300339
45
SUPPORT BRAKE POWER REGULATOR
49
SCREW , Replaced By: N308676012026
49
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
49
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
53
LOCK WASHER SUPPORT TO SIDE MEMBER, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
53
LOCK WASHER FITTING TO BRACKET
57
NUT END PIECE TO EXHAUST PIPE
57
NUT SUPPORT TO SIDE MEMBER
61
SCREW MOUNTING AND RAIL TO LEAF SPRING
65
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
69
NUT STRAP TO BRACKET
69
NUT , Replaced By: N910113010000
73
CLAMP , Replaced By: N916016008200
73
CLAMP ,K 147121, Replaced By: N000000000319
73
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
73
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
77
CLAMP FEED LINE TO THERMOSTAT
81
SCREW PROTECTION PLATE TO BRACKET
85
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
89
NUT BALL PIVOT TO LEVER
93
PULL ROD PNEUMATIC SUSPENSION CONTROL
93
ROD , 10/20 FROM IDENT NO. 4 399152,50/60 FROM IDENT NO. 4 416113, Replaced By: N000331008426, +001A0004310867, +001N000934008010, +001N000934008035
93
ROD , 10/20 FROM IDENT NO. 4 399152,50/60 FROM IDENT NO. 4 416113, Replaced By: N000331008426, +001A0004310867, +001N000934008010, +001N000934008035
93
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
93
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
93
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
93
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
93
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
93
ROD , 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112, Replaced By: N900331008426, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
93
ROD ,4 478504, Replaced By: N900331008427, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
93
ROD ,4 478504, Replaced By: N900331008426, +001A0004310667, +001A0004310867, +001N000934008010, +001N000934008035
97
YOKE BOTTOM
97
YOKE , Replaced By: A0004310667
101
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
105
NUT
109
NUT
109
NUT INTERMEDIATE SPEED STOP
113
BRACKET OPERATING ROD,4 490322
117
METAL SPRING BELLOWS ,4 9579425 498312
117
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
117
BRACKET OPERATING ROD, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
121
METAL SPRING BELLOWS ,4 9579425 498312
121
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
125
SCREW BRACKET TO TRANSMISSION
125
SCREW , Replaced By: N308676012038
125
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
129
LOCK WASHER FITTING TO BRACKET
129
LOCK WASHER FITTING TO BRACKET
129
LOCK WASHER FITTING TO BRACKET
133
BRACKET METAL SPRING BELLOWS,4 821230
133
BRACKET METAL SPRING BELLOWS,4 821230
133
BRACKET METAL SPRING BELLOWS,4 478505
133
BRACKET METAL SPRING BELLOWS,4 478505
133
BRACKET METAL SPRING BELLOWS,4 478505
133
BRACKET METAL SPRING BELLOWS,4 478505
133
BRACKET METAL SPRING BELLOWS
133
BRACKET METAL SPRING BELLOWS
133
BRACKET METAL SPRING BELLOWS
137
SHIM BRACKET TO COVERING
137
SHIM BRACKET TO REAR AXLE HOUSING
137
SHIM BRACKET TO REAR AXLE HOUSING
137
SHIM BRACKET TO REAR AXLE HOUSING
141
SHIM BRACKET TO COVERING
141
SHIM BRACKET TO COVERING
145
SCREW SUPPORT TO CROSS MEMBER M 10X28
149
WEB OPERATING ROD
153
WEB LOAD-DEPENDING BRAKE,4 235128
157
SCREW PIPE CLAMP
157
SCREW , Replaced By: N304017008021
161
WASHER EXHAUST MUFFLER TO STRAP
161
WASHER , Replaced By: N000125008443
165
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
165
NUT , Replaced By: N913004008001
169
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
173
NUT
173
NUT
177
NUT , Replaced By: N913004008001
177
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
177
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
177
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
177
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
181
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 800 MM,4 478330
181
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" 750 MM,4 478330
181
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" 750 MM,4 478330
185
SCREW CONNECTOR
185
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
185
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
189
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
189
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
189
SCREW CONNECTOR
189
SCREW CONNECTOR
190
SPACER TUBE TEST CONNECTION TO BRACKET, 10/20 UP TO IDENT NO. 4 399151,50/60 UP TO IDENT NO. 4 416112
191
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
191
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
193
WASHER COMPRESSED AIR LINE TO BRACKET
193
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
195
NUT
197
NUT PUMP TO BRACKET
197
NUT , Replaced By: N913004006001
201
LINE FROM TEST CONNECTION TO VALVE 400 MM,4 478330
205
BRACKET BRAKE HOSE,REAR
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE,4 490322
209
GUIDE SIGN LOAD-DEPENDING BRAKE
209
GUIDE SIGN LOAD-DEPENDING BRAKE,4 490321
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHING
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
PISTONTO 000 431 43 12,000 431 44 12
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
SPRING
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
SEAL RING
999
BRACKET BRACKET TO RIGHT SIDE MEMBER
999
ADHESIVE FOIL GUIDE SIGN
