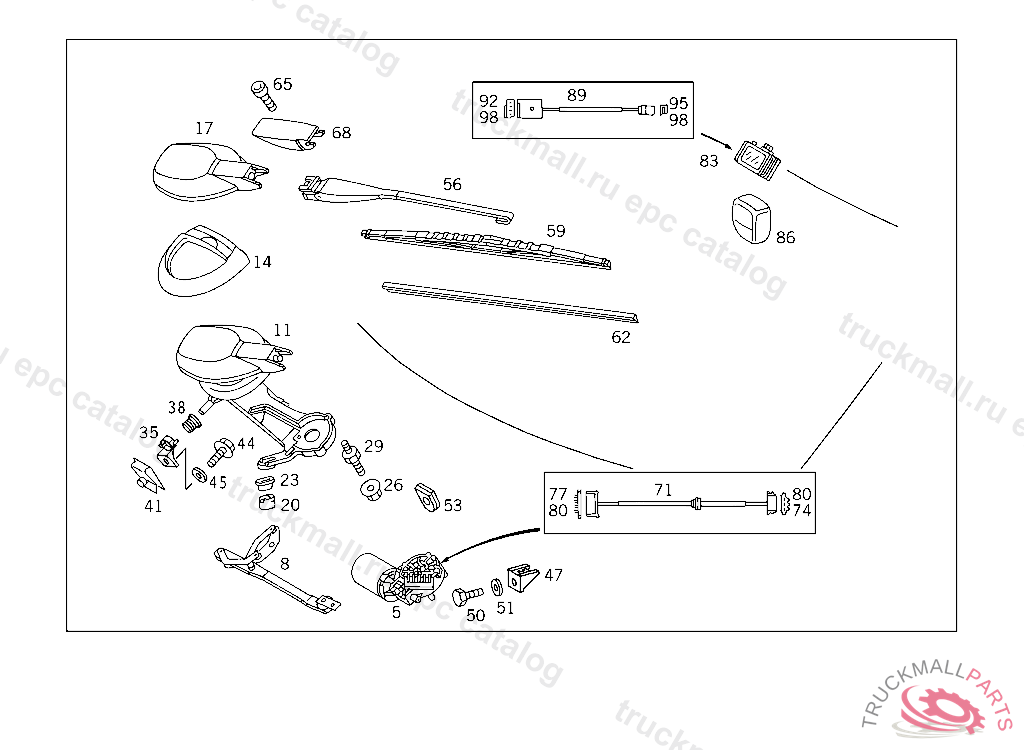

Поз.
Артикул
Описание
5
ELECTRIC MOTOR PANE WIPER
8
LINKAGE PANE WIPER LINKAGE
11
GEARING
14
SEAL NOT FOR USE WITH AIR CONDITIONER
17
CAPBEI NEUEM GETRIEBE MIT KUNSTSTOFFKAPPE,NO.9123
20
BEARING WIPER SYSTEM TO FRONT PANEL CENTER
23
SLEEVE WIPER SYSTEM BOSCH
26
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
29
BUFFER WIPER SYSTEM TO FRONT PANEL CENTER
35
BRACKET WIPER SYSTEM TO PARTITION PANEL CENTER
38
GROMMET WIPER SYSTEM MOUNTING PLATE TO PARTITION PANEL CENTER
41
LOCK. NUT , Replaced By: A0039941745
44
SCREW LICENSE PLATE TO BRACKET
45
WASHER COMPRESSED AIR LINE TO BRACKET
45
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
BRACKET WIPER SYSTEM TO PARTITION PANEL SIDES
50
SCREW LICENSE PLATE TO BRACKET
50
COMBINATION BOLT WIPER SYSTEM TO PARTITION PANEL SIDES
51
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
51
WASHER COMPRESSED AIR LINE TO BRACKET
53
GROMMET WIPER CABLE THRU AIR/WATER DUCT
56
WIPER ARMSWF, FROM MODEL YEAR '94
56
WIPER ARMBOSCH,F 171151
59
WIPER BLADE , Replaced By: A1248200945
59
WIPER BLADE
62
WIPER RUBBER , Replaced By: A2088200045
62
WIPER RUBBER , Replaced By: A2088200045
62
WIPER RUBBER
65
SCREW WIPER ARM TO WIPER ROD
68
CAP ,F 171150 NO.7126
71
ELECTRIC CABLE WIPER MOTOR, A 394036 X 004166 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 / X 004165 WITH CODE 808
74
PLUG FUSE AND RELAY BOX,DRIVER
77
PIN BUSHING HOUSING WIPER MOTOR
80
CONTACT SPRING1-2.5 MM2
83
RAIN SENSOR , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
86
COVERING RAIN SENSOR
89
CABLE HARNESS RAIN SENSOR
92
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
95
PLUGBUSKNOTEN (DACH)
98
CONTACT BUSHINGR 27, 0.75 MM2
