Поз.
Артикул
Описание

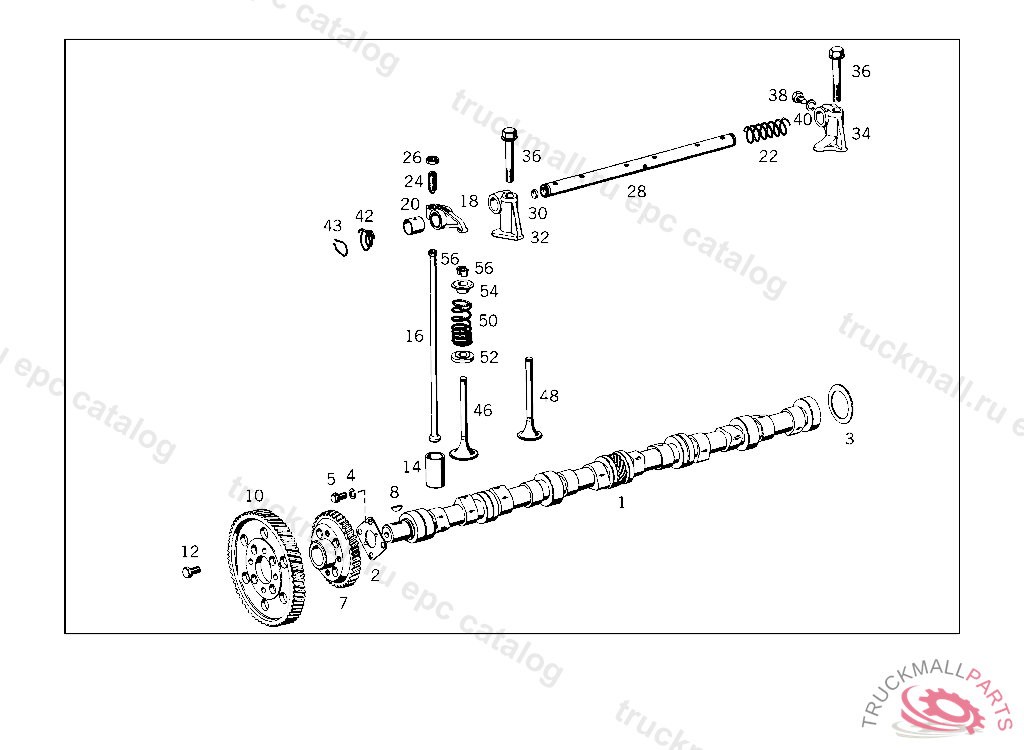

1
CAMSHAFT
2
THRUST WASHER
2
THRUST WASHER
3
SPACER WASHER
4
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
5
SCREW COVER PLATE TO COVER PLATE
5
SCREW COVER PLATE TO COVER PLATE
5
SCREW , Replaced By: A3529900704
7
DRIVE GEAR ,006861, Replaced By: A3600770014, +001A3600520001
7
DRIVE GEAR , Replaced By: A3270770214
7
DRIVE GEAR , 006862
8
WOODRUFF KEY CRANKSHAFT
10
CAMSHAFT GEAR
10
CAMSHAFT GEAR ,000759, Replaced By: A3600520001, +001A3600770014
12
SCREW SUPPORT TO MOUNTING PLATE,D 180260
12
SCREW BRACKET TO CONSOLE
14
VALVE TAPPET
16
PUSH ROD
18
ROCKER ARM
18
ROCKER ARM , Replaced By: A3270500633
20
BUSHING
22
SPRING
24
SET SCREW ROCKER ARM
26
NUT , Replaced By: A4229900051
26
NUT
28
ROCKER ARM SPINDLE
30
EXPANSION PLUG BELL HOUSING
32
ROCKER ARM BRACKETNO.1,NO.3,NO.4,NO.6
34
ROCKER ARM BRACKETNO.2,NO.5
36
SCREW
38
SCREW
40
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
42
SPRING SHORT,ROCKER ARM SPACING
43
SPRING
46
INTAKE VALVE
46
INTAKE VALVE , Replaced By: A3600500326
46
INTAKE VALVE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530001
48
EXHAUST VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3600500227
48
EXHAUST VALVE
50
VALVE SPRING
52
SPACER RING
54
SPRING RETAINER
56
VALVE COLLET
999
SCREW , Replaced By: A3129900004
999
SPACER RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 069835, Replaced By: A3600530051
999
CAMSHAFT ,002875, Replaced By: A3270513201, +001A3270520062
999
CAMSHAFT ,002875, Replaced By: A3270513201, +001A3270520062
