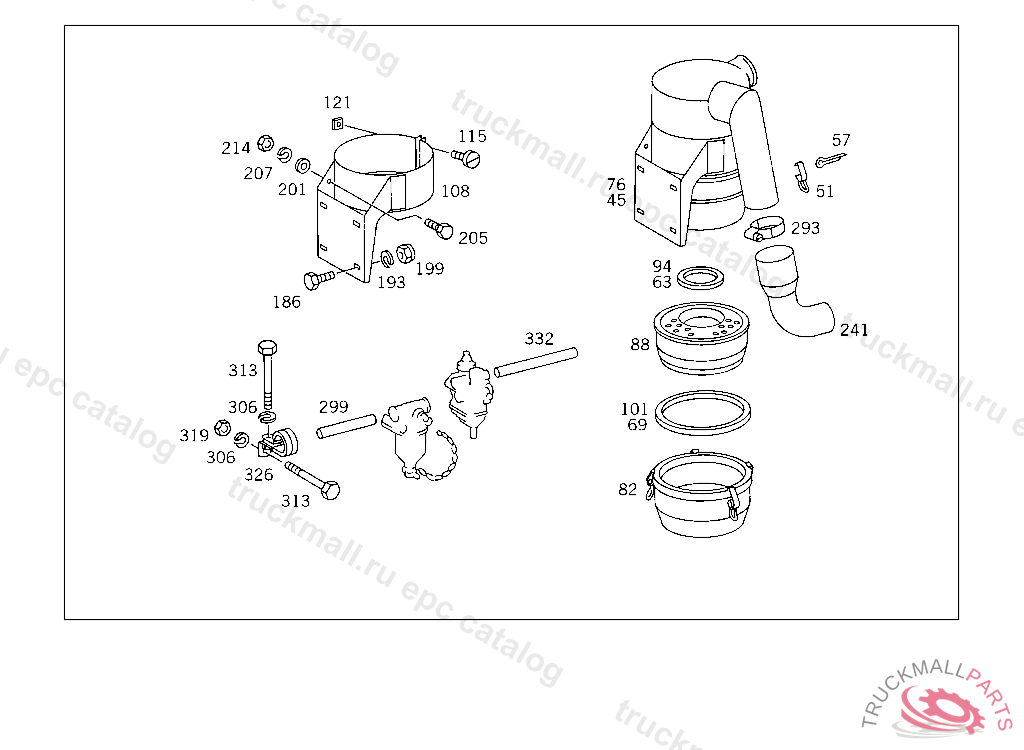

Поз.
Артикул
Описание
45
AIR CLEANERKNECHT, ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
51
FASTENERKNECHT
57
COTTER PIN , ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
63
GASKET INSIDE, ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
69
GASKET OUTSIDE, ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
76
AIR CLEANER OIL BATH MANN & HUMMEL, ON OM 352 126-PS ENGINE,UP TO ENGINE 041863
82
FILTER BOWL
88
FILTER ELEMENT
94
GASKET INSIDE
101
GASKET OUTSIDE
108
BRACKET OIL BATH AIR CLEANER
115
SCREW OIL BATH AIR CLEANER
121
NUT
186
SCREW OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL
193
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
199
NUT
201
WASHER EXHAUST MUFFLER TO STRAP
201
WASHER , Replaced By: N000125008443
205
SCREW CLAMP TO BRACKET AND TO PIPE
207
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
214
NUT
241
AIR INTAKE PIPE FOR GASOLINE ENGINE
293
CLAMP HOSE 70-90X13 MM
293
CLAMP , Replaced By: N000000000674
293
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
293
CLAMP , Replaced By: A0059972990
293
CLAMP , Replaced By: N000000000675
299
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
299
LINE , Replaced By: A0005516456
306
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
313
SCREW FRONT AXLE REGULATING SOLENOID VALVE
313
SCREW , Replaced By: N000933008134
313
SCREW SUPPORT TO FENDER
313
SCREW , Replaced By: N304017008018
319
NUT
326
CLAMP BRACKET TO AIR COMPRESSOR
332
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
LINE , Replaced By: A0005516256
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER , 705598, Replaced By: A0060948702, +001A0060948802
999
CLAMP , Replaced By: A3049950120
999
RADIATOR , Replaced By: A3525011801
999
RADIATOR
999
LINE 18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION, FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
999
LINE
999
RADIATOR ,4 830413
999
DRAIN PIPE
999
BRACKET OIL TANK,5 236371
999
BRACKET OIL TANK
